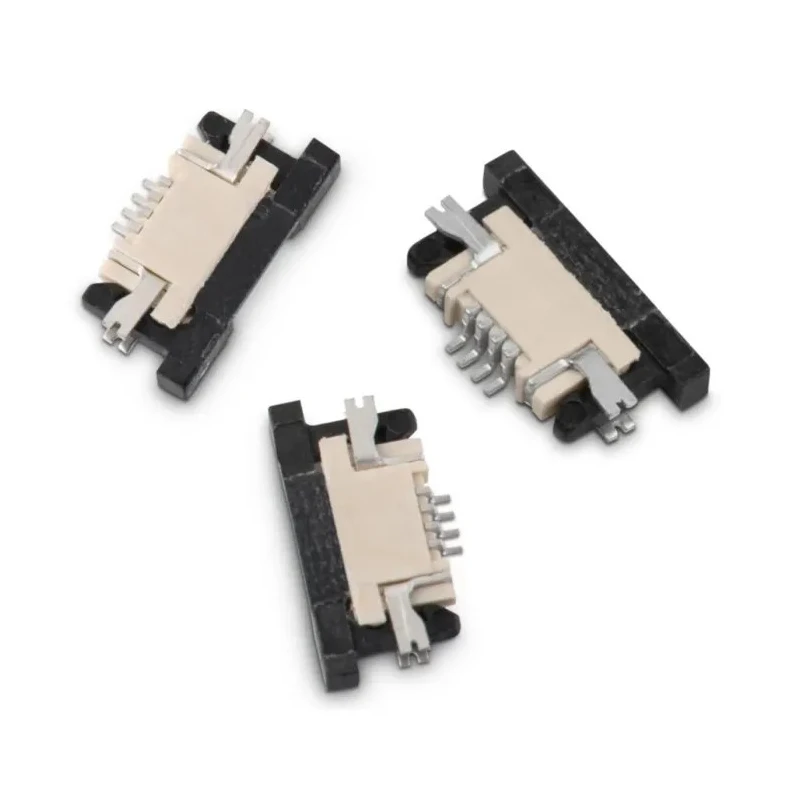

Wurth Elektronik WR-FPC 0.5 mm Pitch 8 Way Horizontal Female FPC Connector Surface Mount 687108183722
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 400mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a low profile 0.5 mm pitch suitable for high-density PCB layouts.
- Designed as a horizontal female FPC connector with eight contact positions.
- Utilizes phosphor bronze contacts plated with tin over nickel for durability.
- Equipped with a zero insertion force flip lock actuator for easy cable insertion and secure retention.
- Operates safely at 50V AC voltage and 400mA current capacity.
- Constructed with liquid crystal polymer housing material for stability and insulation.
- Surface mount termination with solder tabs ensures secure PCB mounting.
- Operational temperature range from -25°C to 85°C for various environments.
Product Description
Wurth Elektronik 687108183722 is a precision-engineered FPC connector featuring a 0.5 mm pitch and eight contact positions designed for high-density electronic applications. This horizontal female FPC connector offers a low profile height of just 1.2 mm, making it ideal for miniaturized and space-constrained assemblies.
The connector has phosphor bronze contacts with tin over nickel plating, enhancing electrical performance and corrosion resistance. The liquid crystal polymer housing provides excellent mechanical strength and electrical insulation.
The zero insertion force (ZIF) flip lock actuator facilitates easy insertion of flexible printed circuits (FPC) and ensures secure mechanical and electrical retention of the FPC. Surface mount technology with solder tabs on both sides strengthens PCB attachment and durability under vibration.
Rated for operation at 50V AC and 400mA current, it supports applications in consumer electronics, industrial control, and communications equipment. Its operating temperature range of -25°C to 85°C supports reliable function in varied environmental conditions.
Typical use cases include high-density displays, touch panels, cameras, tablets, and business or medical instrumentation, where compact and reliable electrical connections are required.
Low profile 0.5 mm pitch design suitable for dense PCB layouts. ZIF flip lock actuator allows easy FPC insertion with secure retention. Phosphor bronze contacts with tin over nickel plating for reliable conductivity. Liquid crystal polymer housing ensures mechanical and thermal stability.
Surface mount solder tabs provide enhanced PCB attachment. Reliable operation from -25°C to 85°C. Supports 50V AC voltage and 400mA current rating. One row female contacts with locking for durability. Explore the Wurth Elektronik FPC Connector range on EnvMart for precision components trusted in demanding electronic assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this FPC connector is 0.5 mm, making it suitable for high-density PCB layouts.
It has a current capacity of 400mA, allowing it to support various electronic applications.
The maximum operating temperature for this connector is 85°C, which supports reliable function in various environments.
This model uses surface mount technology with solder tabs for secure PCB attachment.
The housing is made from liquid crystal polymer, and the contacts are phosphor bronze plated with tin over nickel for enhanced conductivity and corrosion resistance.
This FPC connector features eight contact positions, designed for efficient electrical connections.
The connector is designed with a horizontal orientation, suitable for specific layout requirements in electronic assemblies.
It is rated for operation at 50V AC, making it suitable for various electronic applications.
This connector utilizes a zero insertion force (ZIF) flip lock actuator, allowing for easy insertion and secure retention of flexible printed circuits.
It can operate in environments ranging from -25°C to 85°C, providing versatility for different applications.
This model features female contacts, designed for compatibility with corresponding male connectors.
It is suitable for applications in consumer electronics, industrial control, and communications equipment, particularly where compact connections are needed.
