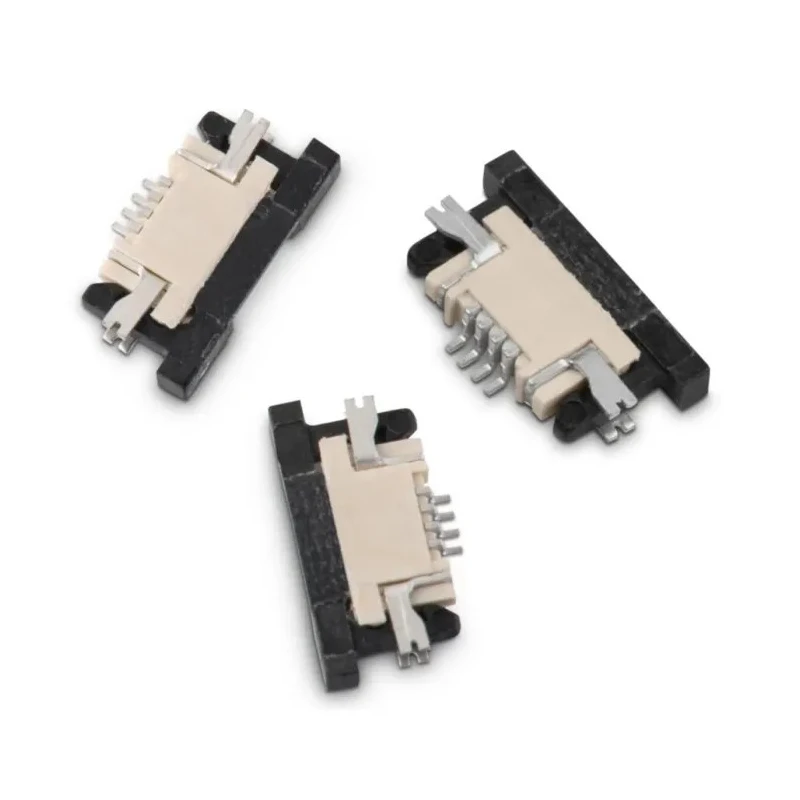

Wurth Elektronik WR-FPC 0.5 mm Pitch 10 Way Horizontal Male FPC Connector Bottom Contact 687110183722
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 400mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Bottom Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Male |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Low profile design with 1.2 mm height is ideal for space saving.
- Flip lock actuator enables easy and secure FPC insertion.
- Solder tabs included for secure PCB retention.
- Supports 400mA current and 50V AC voltage.
- Operates reliably between -25°C to 85°C temperature range.
- Constructed with phosphor bronze contacts plated with tin over nickel.
- Housing made from durable Liquid Crystal Polymer material.
- Bottom contact termination with female contact gender for design flexibility.
Product Description
Wurth Elektronik 687110183722 is a 10 Way Horizontal Male FPC Connector from the WR-FPC Series featuring 0.5 mm pitch and bottom contact termination. This connector boasts a low profile height of 1.2 mm, making it highly suitable for miniature, high density electronic assemblies.
The connector employs a flip lock actuator that provides zero insertion force (ZIF) for effortless cable insertion coupled with secure retention ensuring reliable electrical and mechanical connections. Supporting currents up to 400mA and 50V AC voltage, it operates effectively within a broad temperature range from -25°C to 85°C.
Manufactured with phosphor bronze contacts plated with tin over nickel for excellent conductivity and corrosion resistance, and housed in robust Liquid Crystal Polymer, this product offers durability and stability. The bottom contact position and female contact gender allow for design versatility in various PCB mounting applications.
Additional features include solder tabs on either side of the connector to firmly secure the device to PCBs, and a horizontal orientation with a single row of contacts to facilitate compact layouts. The locking mechanism ensures retention and protection against disconnection in demanding industrial and consumer devices.
Ideal applications include use in miniaturized high density electronics such as displays, touch panels, screens, consumer electronics like tablets, mobile phones, cameras, and industrial and medical equipment requiring reliable FPC connectivity.
Low profile design ideal for space constrained environments. Flip lock actuator enables secure and easy FPC cable insertion. Solder tabs ensure mechanical stability on PCB. Supports rated current and voltage for typical low power connectors.
Wide temperature range operation suitable for diverse conditions. High quality materials improve durability and electrical performance. Bottom contact configuration offers flexible PCB design options. Horizontal orientation with locking mechanism enhances reliability.
Explore more products like this in the FPC Connectors category on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 400mA.
It is rated for a maximum voltage of 50V AC.
It operates reliably within a temperature range of -25°C to 85°C.
The contacts are made from phosphor bronze plated with tin over nickel, and the housing is constructed from Liquid Crystal Polymer.
It features a bottom contact termination type with a male connector gender.
The pitch size is 0.5 mm.
This model has 10 contacts arranged in a single row.
It has a horizontal orientation.
It is designed for surface mounting.
It employs a flip lock actuator that provides zero insertion force (ZIF) for easy and secure cable insertion.
It is ideal for use in miniaturized high density electronics such as displays, touch panels, consumer electronics, and industrial equipment requiring reliable FPC connectivity.
The country of origin for this product is India.
