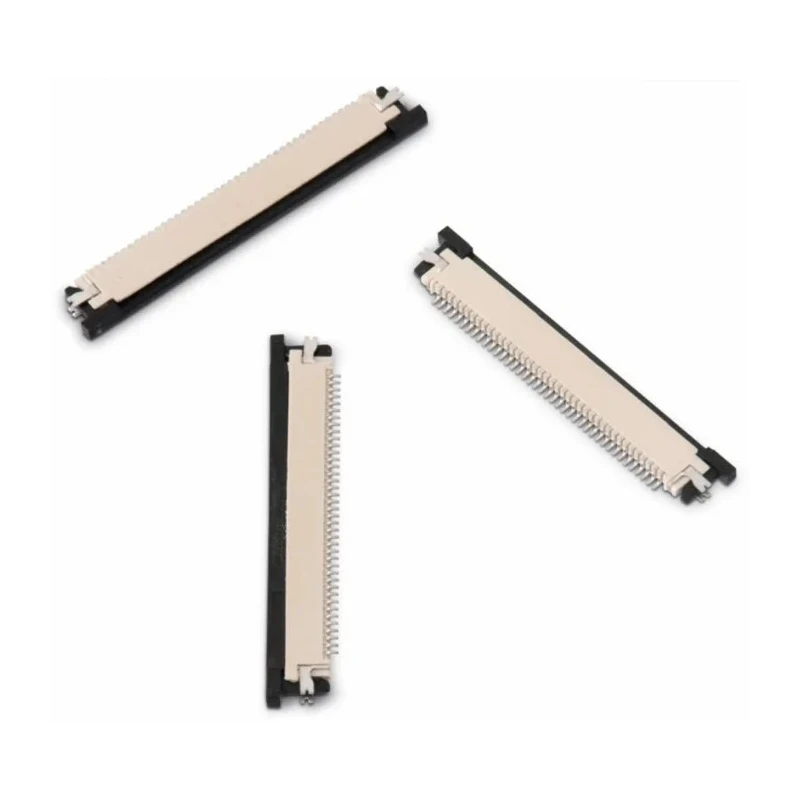

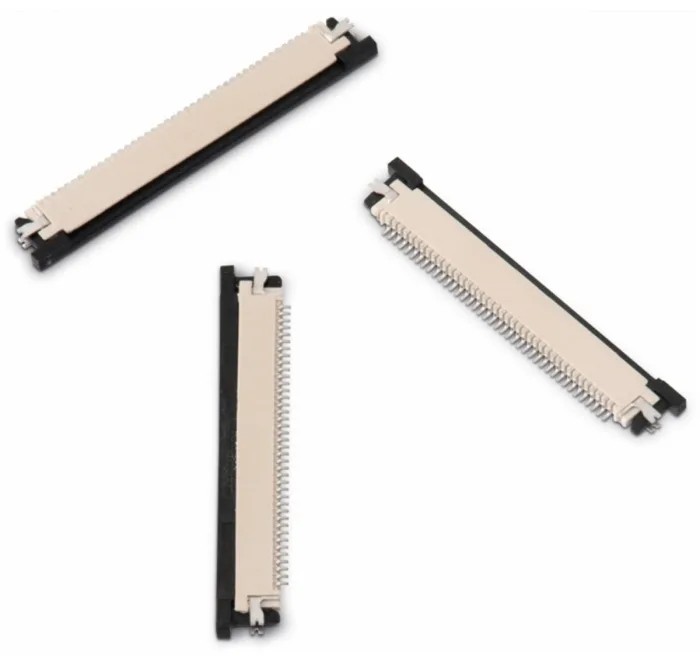

Wurth Elektronik WR-FPC 0.5 mm Pitch 22 Way Horizontal Female FPC Connector Top Contact 687122183622

Wurth Elektronik 687122183622 Horizontal Female FPC Connector provides a low profile, 0.5 mm pitch design optimized for miniaturized, high density electronics applications. The connector features a Zero Insertion Force (ZIF) rotating flip lock actuator to simplify FPC insertion and secure mechanical retention.

This model includes 22 phosphor bronze contacts plated with tin over nickel, arranged in a single row with contacts positioned at the top for versatility in design. The housing material is liquid crystal polymer, offering robust mechanical and thermal properties.

Designed for Surface Mount Technology (SMT), the connector operates safely across a temperature range of -25°C to 85°C and supports voltage up to 50V AC with a current rating of 400 mA. Its horizontal orientation and locking mechanism secure the connector firmly to the printed circuit board.

Typical applications include use in consumer electronics such as personal computers, tablets, mobile phones, cameras, as well as in industrial, medical, and business equipment where space-saving and reliable connections are essential.

0.5 mm pitch with 22 contacts ensures precise and reliable connections. Phosphor bronze contact material and tin over nickel plating provide durability and corrosion resistance. Flip lock actuator enables ZIF insertion, protecting delicate FPC cables.

Liquid crystal polymer housing enhances connector stability and insulation. Supports operation from -25°C to 85°C for broad environmental compatibility. Locking mechanism and surface mount design secure placement on PCB.

Rated for 50V AC voltage and 400 mA current for efficient electrical performance.

This connector supports design flexibility with top contact positioning and a low profile (just 1.2 mm height), making it ideal for high-density and miniaturized connector applications. The sturdy solder tabs on both sides enhance PCB retention.

Explore a wide range of Wurth Elektronik connectors on EnvMart for your electronic component needs, including detailed technical documents and design resources.
