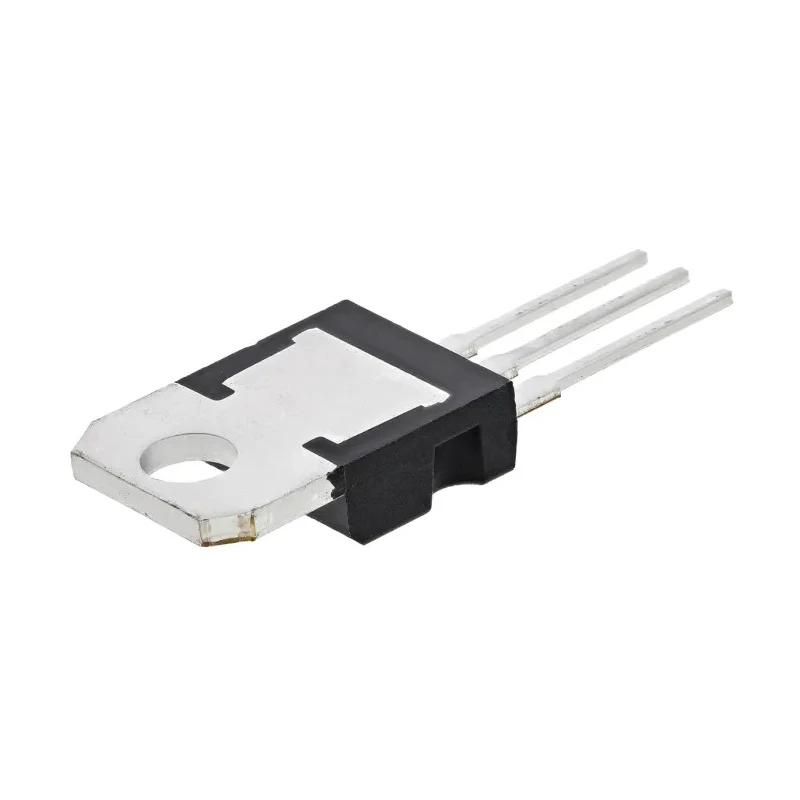

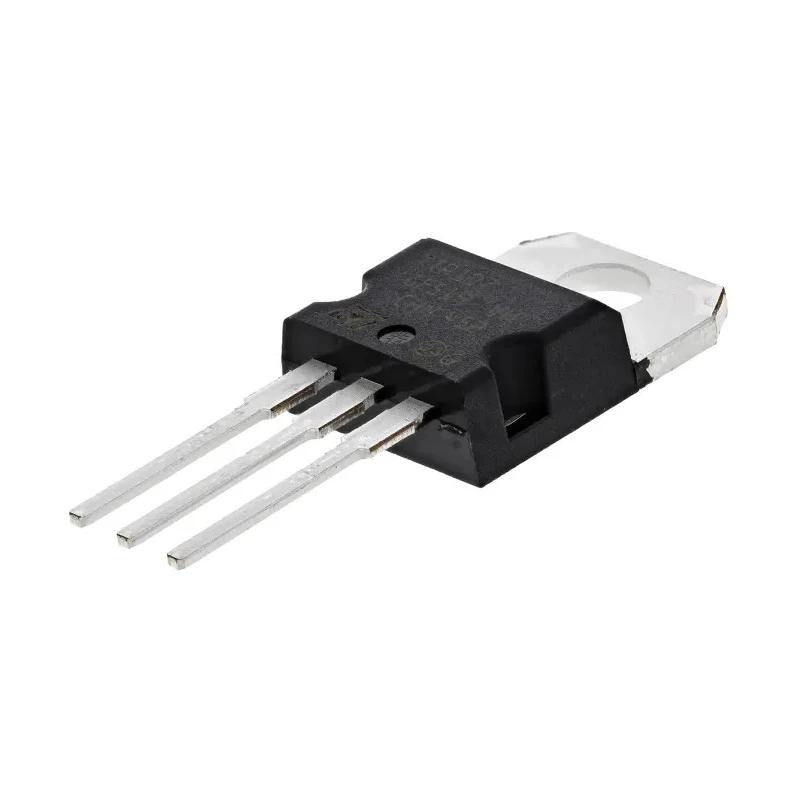

STMicroelectronics 1 Darlington Transistor PNP 8 A 100 V 80 W TO-220 TIP107

STMicroelectronics TIP107 is a PNP Darlington transistor designed for high current and voltage applications.

This transistor supports a maximum continuous collector current of 8 A and a collector-emitter voltage rating of 100 V, making it suitable for switching and amplification in industrial and electronic circuits.

The device is housed in a TO-220 package with 3 pins, suitable for through-hole mounting techniques, facilitating easy assembly and heat dissipation.

Its high DC current gain (hFE) of 200 ensures effective signal amplification while maintaining low power loss. It can operate reliably across a temperature range from -65°C to 150°C, allowing for use in demanding temperature environments.

Key electrical strengths include a maximum power dissipation of 80 W and a maximum collector emitter saturation voltage of 2 V, supporting efficiency and thermal stability. The TIP107 transistor is ideal for use in power control, motor drivers, and amplifier circuits in industrial, automation, and electronic manufacturing applications.

This transistor features a high DC current gain of 200 for efficient amplification. Supports a maximum operating temperature of up to 150°C for reliable performance. Designed for through-hole mounting, ideal for various electronic circuit applications.

Has a minimum operating temperature of -65°C, suitable for robust industrial environments. Maximum collector emitter saturation voltage is 2 V ensuring low conduction losses. Maximum emitter base voltage is 5 V and maximum collector base voltage is 100 V for versatile circuit design.

Compact dimensions with a length of 10.4 mm and height of 9.15 mm.

This product is new and originates from India by default unless otherwise specified. Explore the Electronics & Electricals section at EnvMart for more semiconductor components including Darlington Transistors and related power amplifiers.
