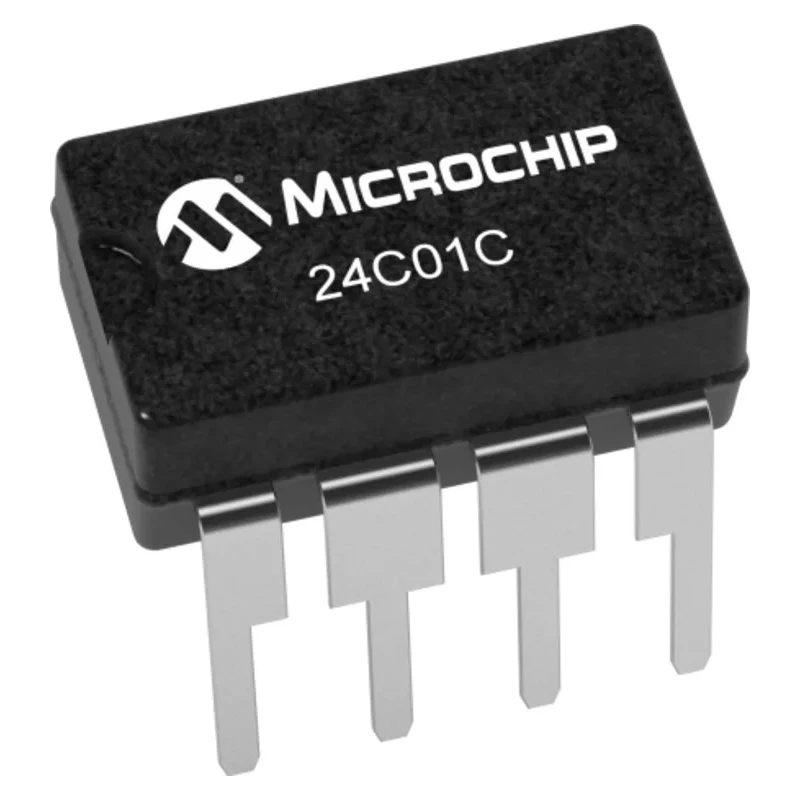

Microchip 1 kB EEPROM 900 ns 8-Pin PDIP Serial-2 Wire 24C01C-I/P

Microchip 24C01C-I/P is a 1 kB Serial Electrically Erasable Programmable Read-Only Memory (EEPROM) offered in an 8-pin PDIP through-hole package. It operates at a maximum clock frequency of 400 kHz with a fast random access time of 900 ns, making it suitable for time-critical embedded system applications.

The device features a low power CMOS design with maximum active current of 1 mA and standby current as low as 5 µA, optimizing power consumption. It functions over a supply voltage range from 4.5V to 5.5V and includes Schmitt trigger inputs for noise suppression, as well as output slope control to eliminate ground bounce, enhancing signal integrity.

Memory is organized as a single block of 128 x 8 bits with write cycle times of 1 ms for both byte and page writes, supporting page write functionality up to 16 bytes.

Operating temperature ranges from -40°C to 85°C for industrial environments, with automotive qualified variants able to operate up to 125°C. This EEPROM is fully RoHS compliant and Pb-free, supporting environmentally responsible designs.

Common industrial applications include embedded control systems, consumer electronics, data logging, and configuration storage in automotive and manufacturing sectors. Memory organized as a single block of 128 x 8-bit memory for reliable storage.

Operates over a voltage range from 4.5V to 5.5V suitable for various applications. Low-power CMOS technology ensures minimal active current of 1 mA and standby current of 5 µA. Supports fast write cycles of 1 ms with page write capability for up to 16 bytes.

Schmitt trigger inputs and output slope control reduce noise and eliminate ground bounce. Compatible with 100 kHz and 400 kHz clock frequencies for versatile communication. Industrial temperature range from -40°C to 85°C ensures robust operation.

Can connect up to eight devices on the same bus for expandable 8 kB memory capacity.

This Microchip EEPROM offers dependable performance and efficient power usage, suitable for demanding industrial, automotive, and consumer electronics applications. Browse the Electronics & Electricals Semiconductors section at EnvMart for more memory chip solutions.
