Hirose 0.5 mm Pitch 11 Way Right Angle Female FPC Connector Bottom Contact FH52-11S-0.5SH

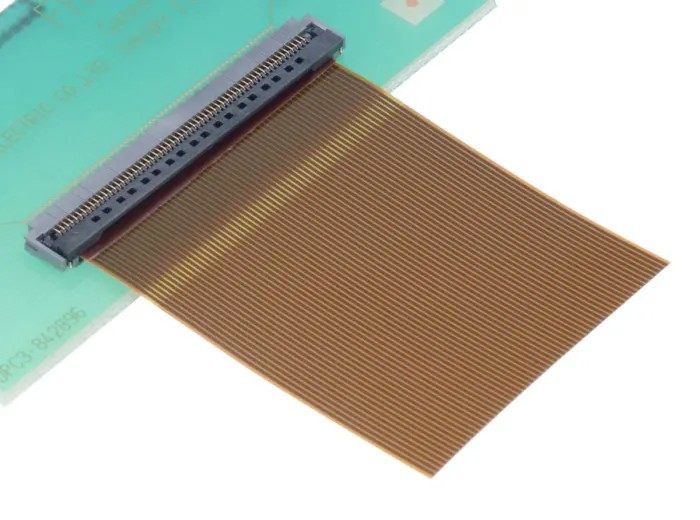

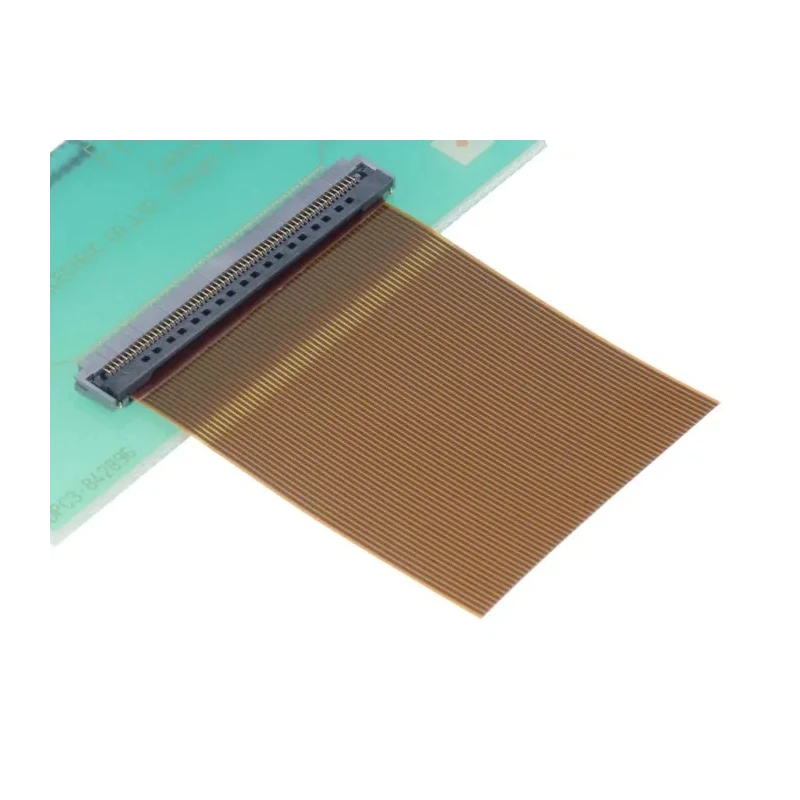

Hirose FH52-11S-0.5SH is a high-quality 11 way right angle female FPC Connector designed with a 0.5 mm pitch and bottom contact termination, ideal for compact and demanding electronic assemblies. It features a low profile 2.00 mm mated height suitable for space-constrained applications while maintaining robust mechanical and electrical performance.

This connector utilizes surface mount technology (SMT) and includes a ZIF (Zero Insertion Force) rotating flip lock actuator that provides an audible tactile click to confirm secure locking of the FPC/FFC ribbon cable. Phosphor bronze contacts with gold plating ensure superior conductivity and long-term reliability with a two-point contact design to enhance the electrical connection.

Metal fittings embedded in the liquid crystal polymer housing stabilize the actuator and extend mechanical durability. The solid bottom housing permits mounting directly over PCB conductive traces, optimizing PCB layout possibilities. The housing and materials are compliant with halogen free standards in accordance with IEC 61249-2-21, making it environmentally responsible.

The FH52 series connectors operate at voltages up to 50V ac, handle currents of up to 500mA, and function efficiently in temperature extremes ranging from -40°C to 105°C, allowing use in diverse industrial and commercial electronics. Applications include audio and video recording devices, car navigation systems, portable medical instruments, industrial control units, satellite receivers, LCD and digital televisions, printers, and notebook PCs.

Rotating flip lock actuator for easy and secure FPC insertion. Phosphor bronze gold-plated contacts with two-point contact design for reliability. Metal actuator fittings for enhanced retention and stability. Bottom contact termination and right-angle orientation for PCB flexibility.

Low profile 2 mm mated height suitable for compact designs. Halogen-free housing made from liquid crystal polymer. Supports automatic surface mount assembly processes. Wide operating temperature range of -40°C to 105°C. Voltage rating of 50V ac and current rating of 500mA.

This connector is manufactured in Japan under the trusted Hirose brand, known for precision and quality in electronic connectors. It offers a robust solution for secure and reliable FPC connections in professional electronics manufacturing.
