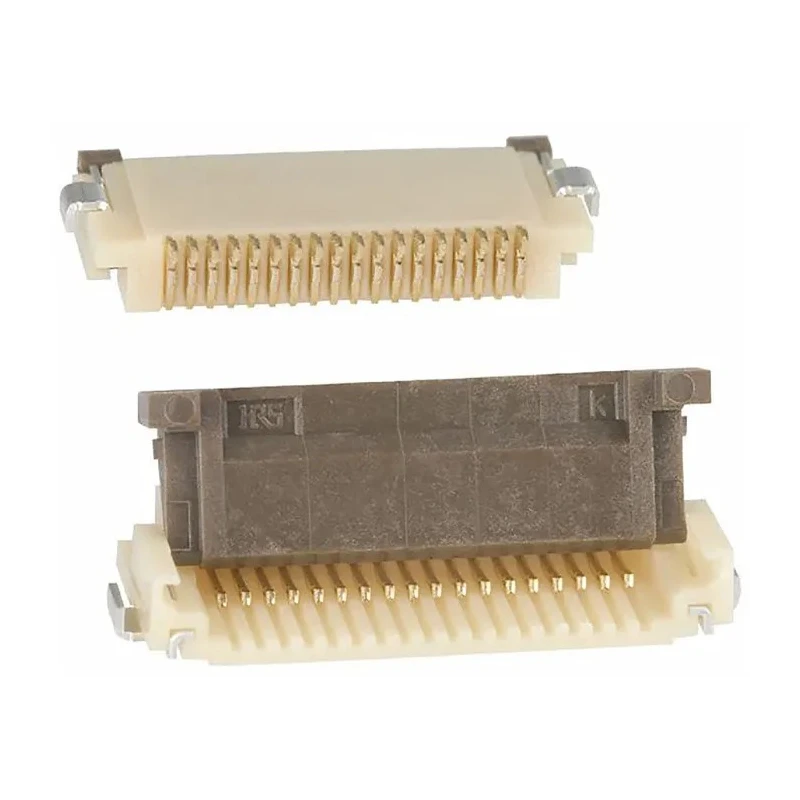

Hirose 0.5 mm Pitch 18 Way Right Angle Female FPC Connector, Solder FH12

Hirose FH12 0.5 mm Pitch 18 Way Right Angle Female FPC Connector FH12 series offers surface mount solder termination with an 18-contact configuration and 0.5 mm pitch suitable for compact electronic assemblies.

This connector integrates a one-touch rotating Zero Insertion Force (ZIF) actuator providing a tactile click to confirm secure mating, minimizing insertion force and protecting delicate components.

The right-angle orientation with bottom contacts allows efficient routing on PCBs while saving valuable board space and supporting high-density mounting requirements.

Manufactured with phosphor bronze contacts plated in gold and housed in durable polyamide material, the connector ensures reliable electrical performance and mechanical robustness.

Electrical ratings include 500mA current capacity at 50V AC and operational temperature range spanning -40°C to 85°C, making it suitable for challenging environments.

This FH12 series FPC connector with locking mechanism is commonly used in industrial, consumer electronics, telecommunications, and automotive applications requiring compact and dependable flexible printed circuit connections.

Features a 0.5 mm pitch with 18 contacts for precise connections. Supports a maximum current of 500mA and voltage of 50V AC. Incorporates a one-touch rotating ZIF actuator with tactile click for secure mating. Designed with a right-angle orientation and bottom contact position.

Constructed with gold-plated phosphor bronze contacts and polyamide housing for durability. Operates within a temperature range of -40°C to 85°C to suit various environments. Enables PCB space saving and high density mounting with locking mechanism.

Ideal for mobile phones, GPS, notebook PCs, digital cameras, and other handheld devices. Explore our comprehensive selection of FPC Connectors at EnvMart for your electronic interconnect needs.
