Hirose 0.5 mm Pitch 40 Way Right Angle Female FPC Connector, Surface Mount, Solder Termination FH12

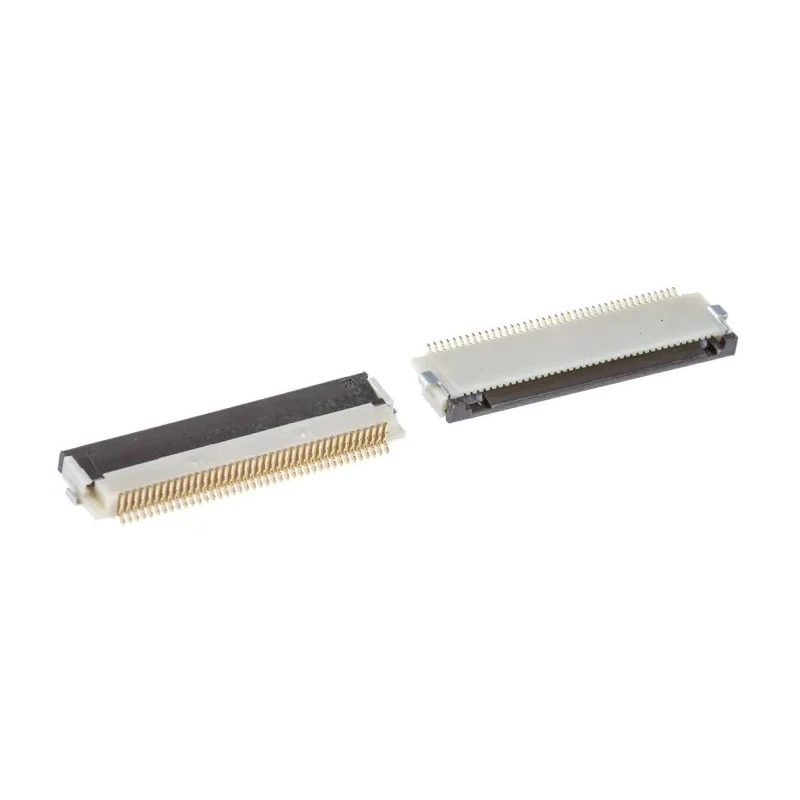

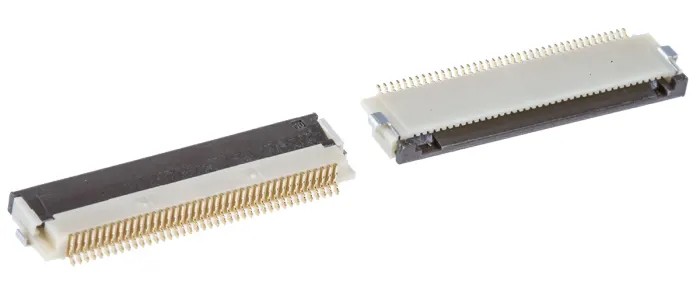

Hirose FH12 0.5 mm Pitch 40 Way Right Angle Female FPC Connector FH12 is a surface mount FPC Connector designed for use in compact electronic devices. It features a fine pitch of 0.5 mm across 40 contact positions, enabling high-density connections within limited PCB space. The connector utilizes phosphor bronze contacts plated with gold to ensure excellent electrical conductivity and resistance to corrosion over its operating life.

This connector incorporates a one-touch rotating zero insertion force (ZIF) actuator, facilitating simple and reliable mating with a tactile click confirmation. Its right angle orientation with bottom contact position optimizes PCB layout and space saving in applications demanding compact form factors.

Rated for 500mA current and 50 volts AC, it suits low power applications typical in devices such as mobile phones, GPS units, notebook PCs, data terminals, LCD TVs, digital cameras, and other handheld devices that require precise display interfacing.

The nylon housing offers robust mechanical and electrical insulation properties, supporting operation over a wide temperature range from -40°C to +70°C. The built-in locking mechanism secures the connection, minimizing signal loss and enhancing connector stability through device usage cycles.

40 contact positions with 0.5 mm pitch provide fine-pitched connectivity. Phosphor bronze contacts plated in gold ensure reliable signal transmission. One-touch rotating ZIF actuator simplifies connector mating and unmating.

Right angle orientation maximizes PCB space efficiency. Nylon housing ensures mechanical durability and insulation. Operating temperature range of -40°C to 70°C suits various environmental requirements. Includes locking mechanism for secure connector retention.

This Hirose FH12 series connector is widely applicable in industrial and consumer electronics manufacturing, supporting high density mounting on printed circuit boards within compact product designs.
