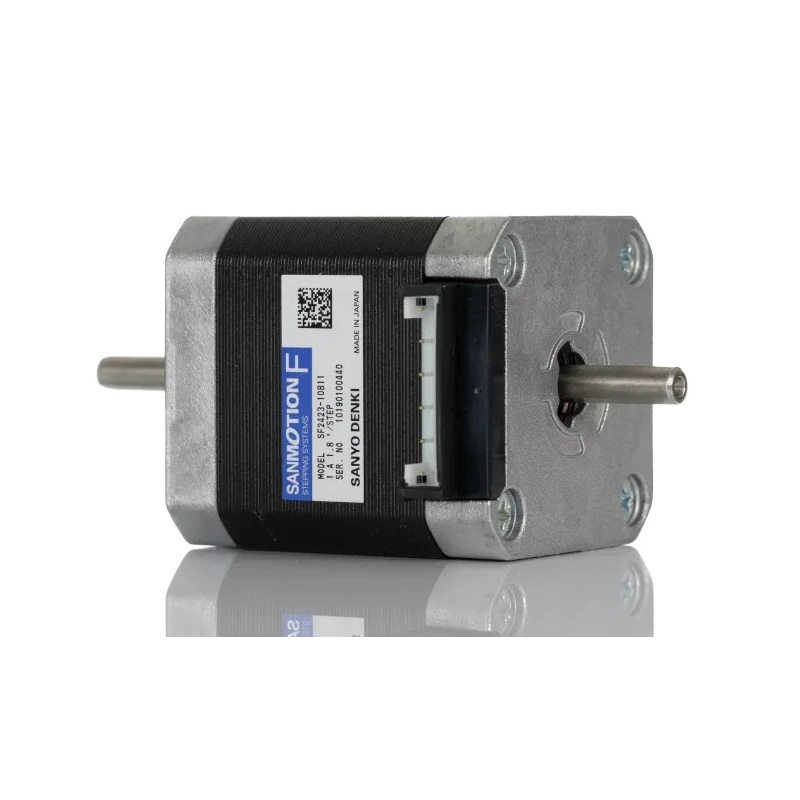

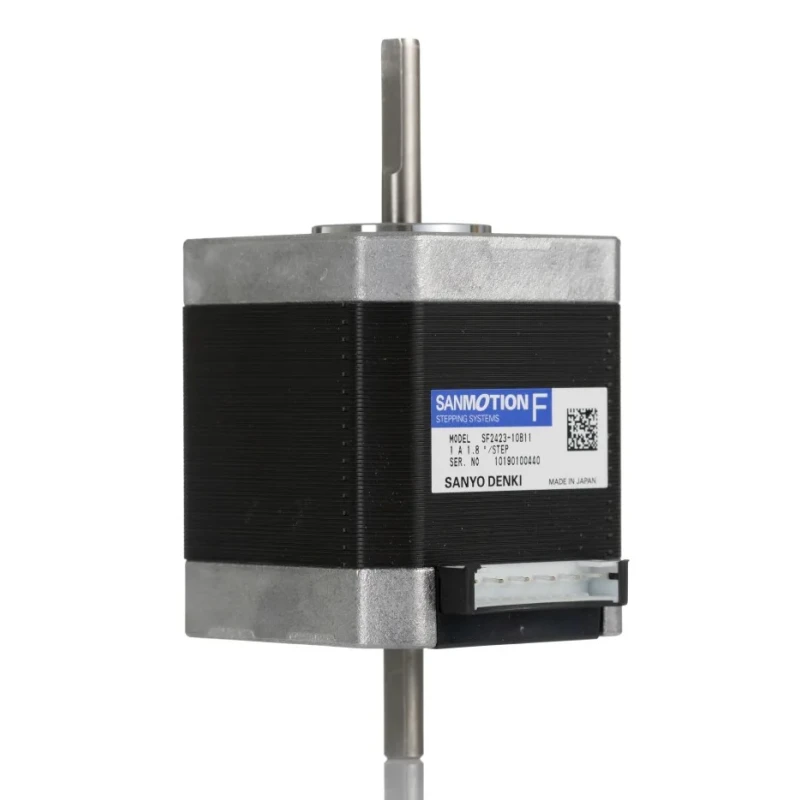

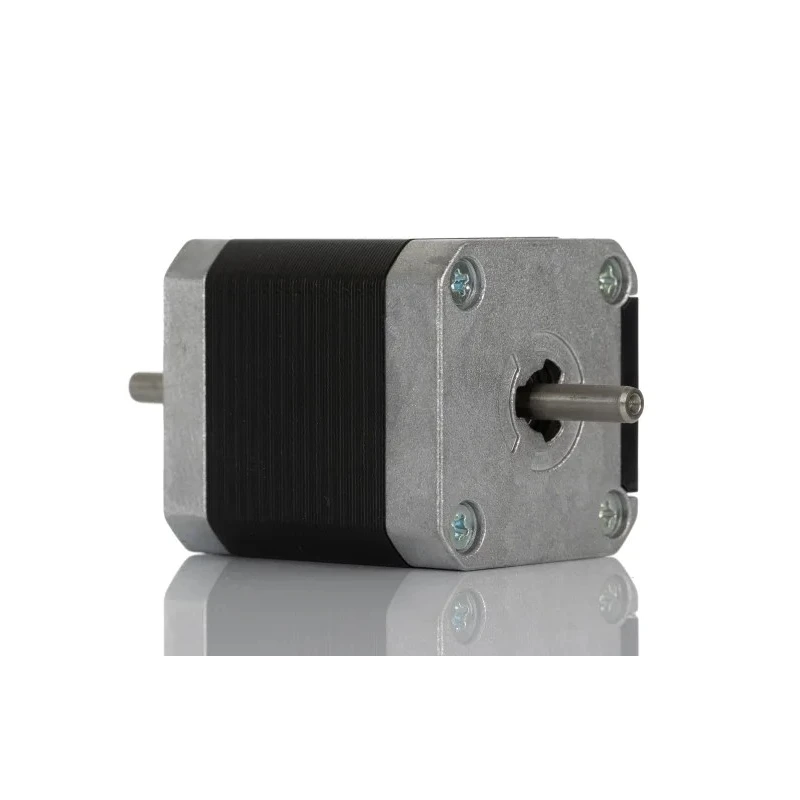

Sanyo Denki SF2 Series Bipolar Stepper Motor 24V, 0.56 Nm Holding Torque, 1.8° Step Angle SF2423-10B11

Sanyo Denki SF2423-10B11 is a bipolar stepper motor from the SF2 series, designed for precise positioning and control in industrial automation systems. Operating at 24V with a holding torque of 0.56 Nm and a step angle of 1.8°, this motor features a dual shaft and a compact flange size of 42 mm square and a 48 mm motor length, suitable for space-constrained installations.

Its bipolar winding arrangement and 1A current rating per phase contribute to high efficiency and low power consumption. The device delivers low noise operation at about 3 dB, making it ideal for noise-sensitive environments such as medical equipment and robotics.

The motor withstands a broad temperature range from -10°C to +50°C, allowing reliable performance in demanding industrial and manufacturing environments. The design improvements reduce heat dissipation and enhance overall motor efficiency by 2.4% compared to previous models.

This stepper motor is suitable for diverse applications including medical technology, robotics, security systems, and packaging facilities. It meets UL and RoHS regulatory standards, ensuring compliance with safety and environmental requirements.

Manufactured in Japan, the SF2423-10B11 upholds high quality and durability, ensuring consistent operational performance in industrial, laboratory, and commercial use cases. Efficient bipolar design delivers reversible motor movement and precise positioning.

Low noise and heat generation reduce operational disturbances. Compact footprint with dual shaft enhances installation flexibility. Wide temperature tolerance supports industrial and medical applications. Complies with international standards including UL and RoHS.

Japanese manufacturing offers robust performance and reliability. Explore top-quality Stepper Motors like the Sanyo Denki SF2423-10B11 in our Motors category at EnvMart for industrial, automation, and robotic solutions.
