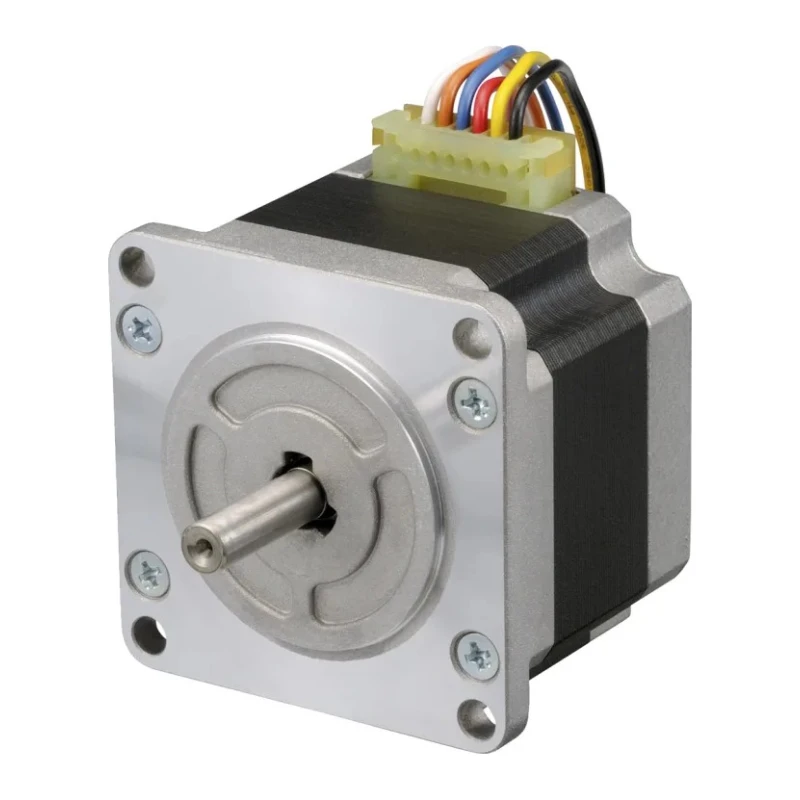

Sanyo Denki 103H7 Series Stepper Motor 24V DC, 0.83Nm Torque, 1.8° Step Angle, 56x56 mm Frame, 6.35 mm Shaft 103H7123-0410
Specifications
| Country of Origin | Philippines |
|---|---|
| Voltage | 24V |
| Brand | Sanyo Denki |
| Model | 103H7123-0410 |
| Depth | 55.3mm |
| IP Rating | IP40 |
| Width | 2.20in |
| Mount Type | Horizontal, Vertical |
| Current Rating | 2A |
| Series | 103H7 |
| Frame Size | 56 x 56 mm |
| Shaft Diameter | 6.35mm |
| Shaft Length | 20.6mm |
| Standards/Approvals | CE, RoHS Compliant, TUV, UL |
| Step Angle | 1.8° |
| Holding Torque | 0.83Nm |
| Winding Arrangement | Unipolar, Lead Wire Type, Bipolar |
Key Features
- This motor operates at 24V DC and 2A current rating for efficient power use.
- It features a compact 56 x 56 mm frame size suitable for space-constrained applications.
- The shaft diameter is 6.35 mm with a length of 20.6 mm for versatile mounting.
- Designed with unipolar and bipolar winding arrangements for varied control options.
- IP40 rating ensures protection against solid objects greater than 1 mm.
- Compatible with horizontal and vertical mount types for installation flexibility.
- Operates reliably within a temperature range of -10°C to +50°C for industrial environments.
- Meets CE, RoHS, TUV, and UL standards for safety and quality compliance.
Product Description
Sanyo Denki 103H7123-0410 stepper motor is a precision electric motor designed for automation, robotics, CNC machinery, and 3D printing applications. Operating at 24V DC with a holding torque of 0.83Nm and a 1.8° step angle, it ensures highly accurate step movements optimized for fine positioning tasks.
This motor has a 56 x 56 mm compact frame, making it suitable for equipment requiring a small footprint. Its 6.35 mm diameter shaft with 20.6 mm length allows ease of mechanical coupling and mounting both horizontally and vertically.
The winding arrangement supports unipolar and bipolar configurations with lead wire types, enhancing control flexibility for various drive electronics. The stepper motor also incorporates a hybrid design combining permanent magnets and stator/rotor teeth to improve torque consistency and performance.
IP40 ingress protection provides resistance against solid objects larger than 1 mm, suitable for typical industrial indoor environments. The device is tested and certified to meet CE, RoHS, TUV, and UL standards, ensuring compliance with international safety and environmental regulations.
Typical applications include 3D printers, robotic arms, CNC machines, and other automation systems requiring precise and repeatable rotary motion. Its robust design supports a broad operating temperature range from -10°C to +50°C, suitable for demanding industrial and manufacturing conditions.
This stepper motor provides a 0.83Nm holding torque for stable positioning. Utilizes a 24V DC voltage and 2A current for energy-efficient operation. Compact 56x56 mm frame size supports space-efficient installation. Includes unipolar and bipolar winding options for versatile control.
IP40 rating enhances durability against environmental contaminants. Mountable horizontally or vertically to suit application needs. Certified with CE, RoHS, TUV, and UL for quality assurance. Designed for use in industrial automation, CNC, robotics, and 3D printing.
Explore more Stepper Motors and related automation components in the Motors & Pumps category on EnvMart for comprehensive industrial-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of this stepper motor is 0.83Nm, providing stable positioning for applications requiring precise control.
This model operates at 24V DC with a current rating of 2A, ensuring efficient power usage in its applications.
The motor has a compact frame size of 56 x 56 mm and a depth of 55.3 mm, making it suitable for space-constrained installations.
The step angle for this model is 1.8°, allowing for fine positioning and accurate step movements.
It supports both unipolar and bipolar winding arrangements, providing flexibility for various control options.
This motor has an IP40 rating, which protects it against solid objects larger than 1 mm, suitable for typical industrial environments.
Yes, it is compatible with both horizontal and vertical mounting types, offering installation flexibility for various applications.
The shaft diameter is 6.35 mm with a length of 20.6 mm, facilitating easy mechanical coupling and mounting.
This motor is designed for use in automation, robotics, CNC machinery, and 3D printing applications that require precise and repeatable rotary motion.
It operates reliably within a temperature range of -10°C to +50°C, making it suitable for demanding industrial conditions.
This motor meets CE, RoHS, TUV, and UL standards, ensuring compliance with international safety and environmental regulations.
The Sanyo Denki 103H7123-0410 stepper motor is manufactured in the Philippines.
