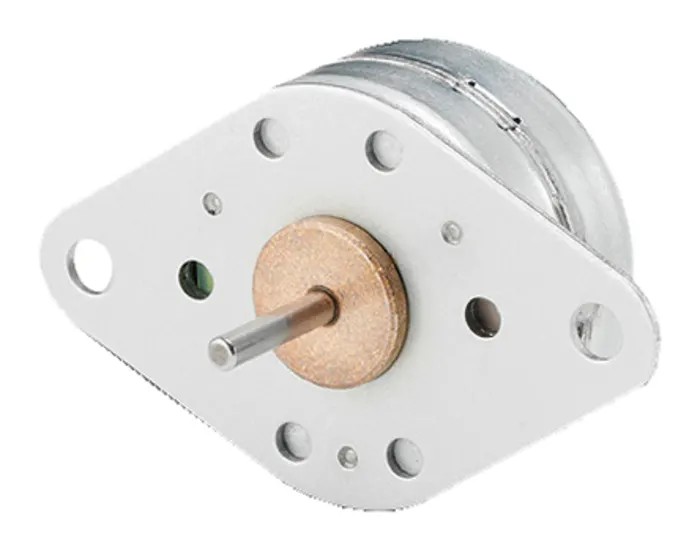

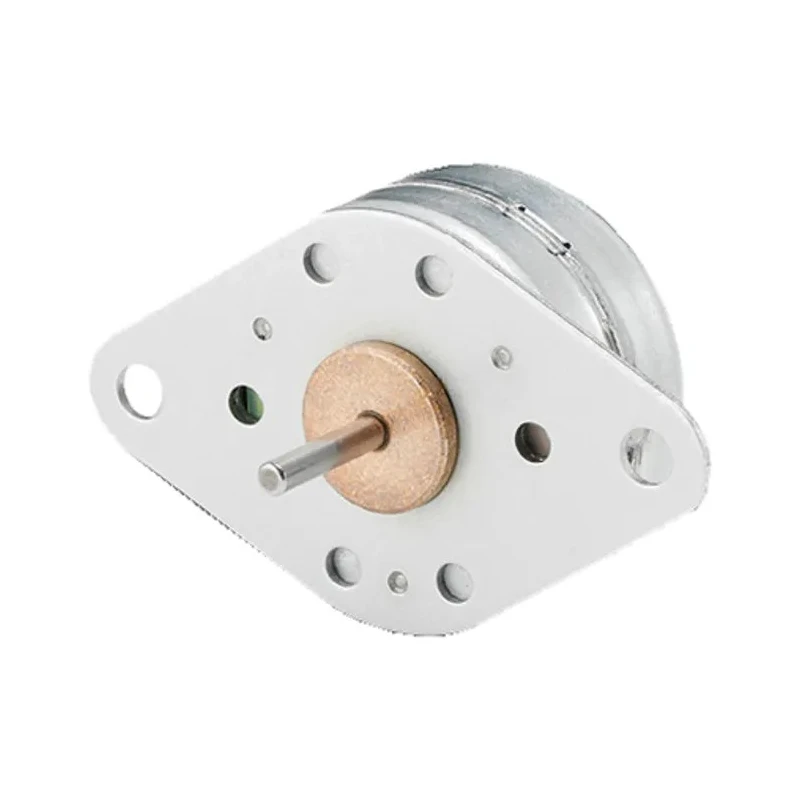

Portescap 26M048B Series Permanent Magnet Stepper Motor 12V, 10.6mNm Holding Torque, 7.5° Step Angle, 26.2 x 42.9 26M048B2B

Free Delivery in India | Lowest Global Shipping Charges

Portescap 26M048B Series Permanent Magnet Stepper Motor 12V, 10.6mNm Holding Torque, 7.5° Step Angle, 26.2 x 42.9 26M048B2B

Name: Portescap 26M048B Series Permanent Magnet Stepper Motor 12V, 10.6mNm Holding Torque, 7.5° Step Angle, 26.2 x 42.9 26M048B2B
Brand: Portescap
SKU: 268412
Price: 56.3 USD
Availability: InStock



Category Stepper Motors Brand Portescap Condition New

Specifications

Country of Origin	India
Voltage	12V
Brand	Portescap
Model	26M048B2B
Depth	28.42mm
Current Rating	110mA
Series	26M048B
Frame Size	26.2 x 42.9 mm
Sub Type	Permanent Magnet
Output Speed	900rpm
Shaft Diameter	2mm
Shaft Length	11.3mm
Standards/Approvals	RoHS Compliant
Step Angle	7.5°
Holding Torque	10.6mNm
Winding Arrangement	Bipolar
Number of Pole Pairs	12
Detent Torque	0.85mNm

Key Features

This stepper motor features a 7.5° step angle for fine incremental rotations.
It has a compact 26.2 x 42.9 mm frame size suitable for space-constrained applications.
The 2 mm shaft diameter and 11.3 mm shaft length ensure compatibility with various couplings.
Bipolar winding arrangement supports efficient motor drive and control.
The motor runs at an output speed of 900 rpm with a low detent torque of 0.85 mNm.
Constructed with high-quality bearing assembly for long operational life.
The product complies with RoHS standards ensuring environmental safety.
Manufactured in India under the 26M048B series to provide cost-effective and reliable performance.

Product Description

Portescap 26M048B2B permanent magnet stepper motor is designed for applications requiring precise and reliable motion control. Operating at 12V, this bipolar can-stack stepper motor delivers a holding torque of 10.6 mNm and a precise 7.5° step angle allowing for smooth and accurate positioning.

The motor features a compact frame size of 26.2 x 42.9 mm, making it ideal for use in devices where space-saving is critical. The shaft diameter is 2 mm with a shaft length of 11.3 mm, offering versatility in coupling and integration into existing mechanical setups.

With a current rating of 110 mA and 12 pole pairs, this stepper motor achieves an output speed of up to 900 rpm. Its detent torque of 0.85 mNm ensures stable holding without unintended rotation when powered off. The motor's winding arrangement is bipolar, which provides efficient operation and excellent open-loop control capability.

Portescap's 26M048B series motors are renowned for their durable bearing assemblies that extend the motor’s life in industrial and commercial environments. These motors comply with RoHS standards, ensuring they meet environmental regulations for hazardous substances.

This stepper motor is manufactured in India and is suitable for diverse industrial applications including automation, robotics, manufacturing, and laboratory equipment requiring reliable step motor solutions.

This stepper motor features a 7.5° step angle for fine incremental rotations. Compact 26.2 x 42.9 mm frame accommodates tight installation spaces. 2 mm diameter shaft with 11.3 mm length for versatile mechanical coupling.

Bipolar winding arrangement enhances motor control and efficiency. Output speed up to 900 rpm suitable for fast step operations. Low detent torque of 0.85 mNm ensures stable motor holding. RoHS compliant meets environmental safety standards.

Long life guaranteed by high-quality bearing assembly. Choose from EnvMart's wide range of Stepper Motors for dependable performance in your industrial automation and control systems.
