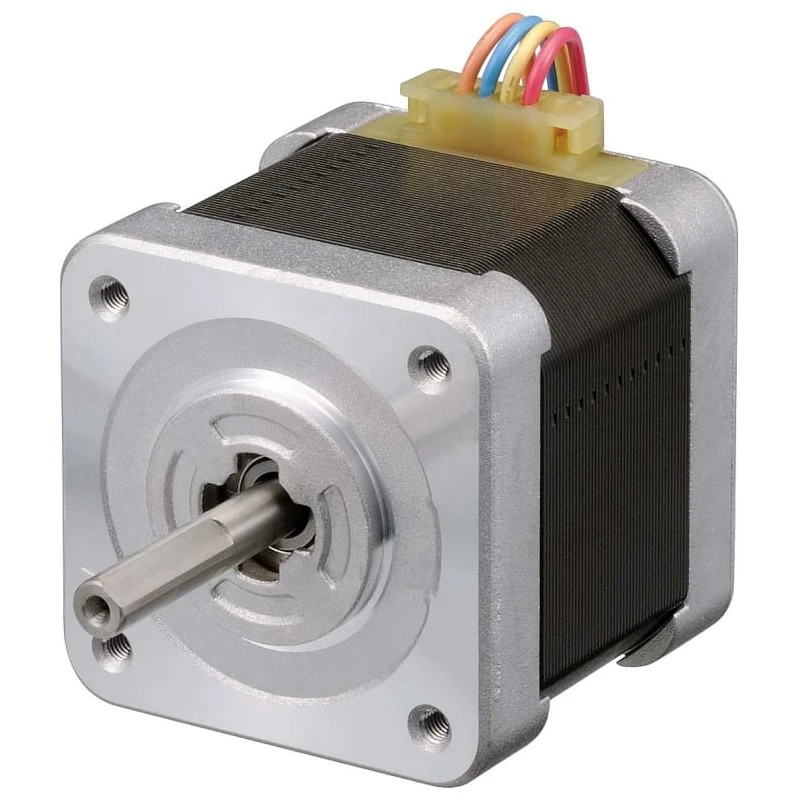

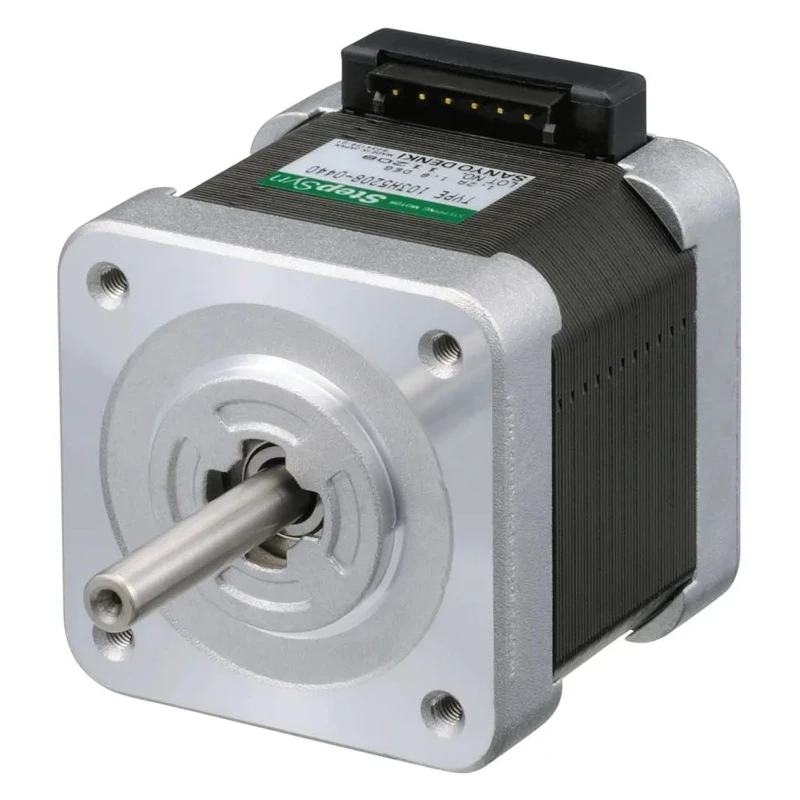

Sanyo Denki 103H5 Series Hybrid Stepper Motor 24V, 0.51Nm Torque, 1.8° Step Angle, 42x42 mm Frame, 5 mm Shaft 103H5210-5240
Specifications
| Country of Origin | Philippines |
|---|---|
| Voltage | 24V |
| Brand | Sanyo Denki |
| Model | 103H5210-5240 |
| Depth | 49.5mm |
| IP Rating | IP65 |
| Current Rating | 1A |
| Series | 103H5 |
| Frame Size | 42 x 42 mm |
| Sub Type | Hybrid Stepper Motor |
| Shaft Diameter | 5mm |
| Shaft Length | 24mm |
| Standards/Approvals | CE, RoHS Compliant, TUV, UL |
| Step Angle | 1.8° |
| Holding Torque | 0.51Nm |
| Winding Arrangement | Bipolar, Unipolar |
Key Features
- Hybrid stepper motor with a compact 42 x 42 mm frame for minimal bulk.
- Provides a holding torque of 0.51Nm to prevent shaft dislodging under vibration.
- Equipped with a 5 mm diameter shaft and 24 mm shaft length for versatile mounting.
- Supports bipolar and unipolar winding arrangements for flexible control.
- Rated IP65 for high protection against dust and water ingress.
- Low static angle error of ±0.09° ensures precise positioning.
- Current rating of 1A suitable for low power industrial applications.
- Mountable vertically or horizontally to suit installation requirements.
Product Description
Sanyo Denki 103H5210-5240 is a hybrid stepper motor in the SANMOTION 103H5 series, rated at 24V with a holding torque of 0.51Nm and a precise 1.8° step angle. It features a compact 42 x 42 mm frame size and a 5 mm diameter shaft with a length of 24 mm, designed to deliver reliable and accurate position control in industrial equipment.
This motor supports both bipolar and unipolar winding configurations, allowing for flexible integration into diverse automation and control systems. Its advanced hybrid design enables half-stepping and microstepping capabilities, ideal for applications requiring enhanced precision.
With an IP65 rating, the motor is protected against dust and water ingress, ensuring durable operation in harsh environments. It operates effectively within a temperature range from -10℃ to +50℃, making it suitable for various industrial, manufacturing, packaging machinery, fluid control systems, computer devices, and video camera applications.
The stepper motor maintains a low static angle error of ±0.09°, improving positioning accuracy. Its 1A current rating makes it efficient for low power usage while providing a holding torque strong enough to resist heavy vibrations.
Compact 42 x 42 mm frame with 5 mm shaft diameter. Hybrid design with bipolar and unipolar winding arrangements. High protection class IP65 for dust and water resistance. Operating temperature from -10℃ to +50℃ suited for industrial environments.
Standards compliant with CE, RoHS, TUV, and UL for assured quality.
This stepper motor is ideal for industrial automation, robotics, packaging machinery, and precise fluid control systems. Experience reliable and precise motion control with the Sanyo Denki SANMOTION 103H5 series.
Explore more industrial motors and stepper motor solutions within EnvMart’s comprehensive catalog for advanced automation needs.
Explore more products in our Stepper Motors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of this model is 0.51Nm, which helps prevent shaft dislodging under vibration.
This stepper motor has a step angle of 1.8°, allowing for precise positioning in various applications.
The motor has a compact frame size of 42 x 42 mm and a depth of 49.5 mm, with a shaft diameter of 5 mm and a shaft length of 24 mm.
The Sanyo Denki 103H5 Series Hybrid Stepper Motor is rated for 24V operation.
This model supports both bipolar and unipolar winding arrangements, providing flexibility in control.
The current rating for this stepper motor is 1A, suitable for low power industrial applications.
It has an IP65 rating, ensuring high protection against dust and water ingress.
The motor operates effectively within a temperature range of -10℃ to +50℃.
This model is compliant with CE, RoHS, TUV, and UL standards, ensuring quality and safety.
Yes, it can be mounted both vertically and horizontally to suit various installation requirements.
It is suitable for industrial automation, robotics, packaging machinery, and precise fluid control systems.
The motor maintains a low static angle error of ±0.09°, enhancing positioning accuracy.
