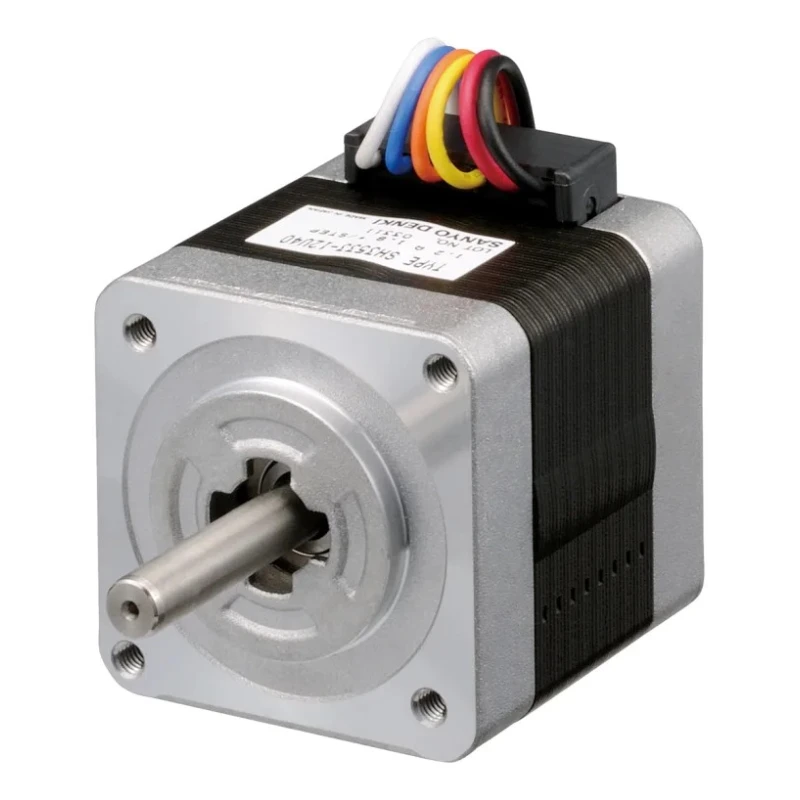

Sanyo Denki SH3533 Series Stepper Motor 24V, 0.15Nm Holding Torque, 1.8° Step Angle, 35x35 mm Frame, 5 mm Shaft SH3537-12U40
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V |
| Brand | Sanyo Denki |
| Model | SH3537-12U40 |
| Depth | 39mm |
| IP Rating | IP40 |
| Mount Type | Vertical, Horizontal |
| Current Rating | 1.2A |
| Series | SH3533 |
| Frame Size | 35 x 35 mm |
| Shaft Diameter | 5mm |
| Shaft Length | 20mm |
| Standards/Approvals | CE, RoHS Compliant, TUV, UL |
| Step Angle | 1.8° |
| Holding Torque | 0.15Nm |
| Winding Arrangement | Unipolar |
Key Features
- This stepper motor operates at 24V DC, ensuring stable and efficient performance.
- The 35 x 35 mm frame size and 5 mm shaft diameter optimize space utilization.
- Designed with unipolar winding arrangement for improved control.
- The motor is suitable for vertical and horizontal mounting configurations.
- It features IP40 rating, providing moderate protection against dust and foreign objects.
- Shaft length measures 20 mm, accommodating various coupling requirements.
- Compliance with CE, RoHS, TUV, and UL standards ensures quality and safety.
- Ideal for applications such as electric grippers and electric cylinders in automation systems.
Product Description
Sanyo Denki SH3537-12U40 is a high-precision unipolar stepper motor from the SH3533 Series, engineered for compact and space-restricted industrial automation environments. This 2-phase motor features a step angle of 1.8 degrees and a holding torque of 0.15 Nm, providing robust performance for a wide range of equipment such as electric grippers and electric cylinders.
The motor operates on a 24V DC supply and has a current rating of 1.2 A. Its compact 35 x 35 mm frame and 5 mm shaft diameter make it suitable for installations with limited space. The shaft length of 20 mm enhances compatibility with different mechanical setups, while the motor supports both vertical and horizontal mounting arrangements to fit diverse application needs.
Designed with an IP40 ingress protection rating, the motor offers moderate defense against dust and foreign particles, making it reliable for industrial use. The resistance per phase is 2.7 ohms, ensuring efficient electrical characteristics for smooth motion control. This product complies fully with international standards including CE, RoHS, TUV, and UL, reflecting its commitment to quality and safety.
Manufactured in Japan, the Sanyo Denki SH3533 Series stepper motor is ideal for precise positioning tasks in laboratory automation, manufacturing machinery, robotics, and other industrial control applications. Double shaft options enhance design flexibility for specialized implementations.
This stepper motor operates at a 24V DC voltage supply. It features a 1.8° step angle for accurate positioning. Holding torque is rated at 0.15 Nm for effective load handling. The 35 x 35 mm frame size allows compact integration.
Shaft diameter is 5 mm with a 20 mm shaft length. Mounting options include both vertical and horizontal positions. IP40 rating ensures protection against dust ingress. Designed to meet CE, RoHS, TUV, and UL safety and compliance standards.
Ideal for space-restricted applications such as electric grippers and cylinders. Explore a wide range of precision Stepper Motors and automation components at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Sanyo Denki SH3537-12U40 operates at a voltage of 24V DC.
This stepper motor has a holding torque rated at 0.15 Nm.
The step angle for this model is 1.8 degrees, allowing for accurate positioning.
It features a frame size of 35 x 35 mm and a shaft diameter of 5 mm with a shaft length of 20 mm.
The current rating for the SH3537-12U40 is 1.2 A.
This motor supports both vertical and horizontal mounting configurations.
The motor has an IP40 rating, providing moderate protection against dust and foreign objects.
It complies with CE, RoHS, TUV, and UL standards, ensuring quality and safety.
The SH3537-12U40 is designed with a unipolar winding arrangement for improved control.
This model is suitable for applications such as electric grippers and electric cylinders in automation systems.
This stepper motor is manufactured in Japan.
The resistance per phase for this model is 2.7 ohms, contributing to its efficient electrical characteristics.
