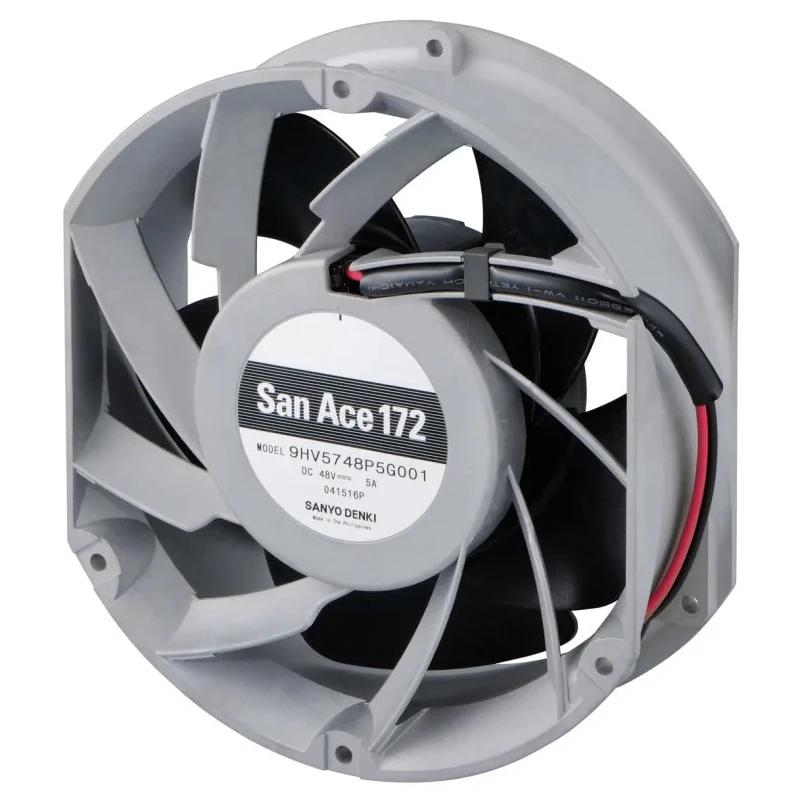

Sanyo Denki San Ace 9HV Series Axial Fan 48V DC 240W 5A 966 m³/h 10,500 rpm Ball Bearing Square Frame 9HV5748P5G001

Sanyo Denki 9HV5748P5G001 San Ace 9HV Series axial fan is a high-performance cooling solution operating at 48V DC with a power consumption of 240W and a maximum current of 5A. Designed with a square aluminum frame and a plastic impeller, it provides reliable airflow of 966 m³/h at a fan speed of 10,500 rpm while maintaining a noise level of 83 dB.

This axial fan features a ball bearing system to enhance durability and sustain long operational life in demanding industrial environments. The backward curved blades optimize static pressure, making it ideal for use in applications such as industrial inverters, uninterruptible power supplies, data storage systems, and telecommunications equipment.

The unit supports PWM speed control to reduce power consumption, increasing efficiency during variable load conditions. It is engineered to operate effectively under harsh environmental conditions with an operating temperature range from -20°C to +70°C. The constructed aluminum frame and plastic impeller provide resistance against impact and corrosion, extending its lifespan in challenging settings.

Compact dimensions of 172 mm height, 150 mm width, and 51 mm depth make this fan easy to integrate into enclosures with limited space. The fan uses screw terminals for secure electrical connections and complies with RoHS standards for environmental safety.

Typical industrial use cases include ventilation in servers, telecommunications infrastructure, data centers, and other equipment requiring dependable thermal management. The fan features a high speed of 10,500 rpm for effective cooling performance.

It has a square frame size of 172 mm x 150 mm x 51 mm suitable for compact enclosure installations. Ball bearing design ensures durability and long service life under industrial conditions. Low noise level of 83 dB enables quieter operation in sensitive environments.

Constructed from aluminum frame with plastic impeller for impact and corrosion resistance. Equipped with screw terminal type and backward curve fan blades. Supports PWM speed control for efficient power management. Suitable for harsh temperature ranges from -20°C to +70°C for versatile industrial use.

Explore the Sanyo Denki range of Axial Fans at EnvMart for reliable industrial cooling solutions designed to enhance equipment performance and longevity.
