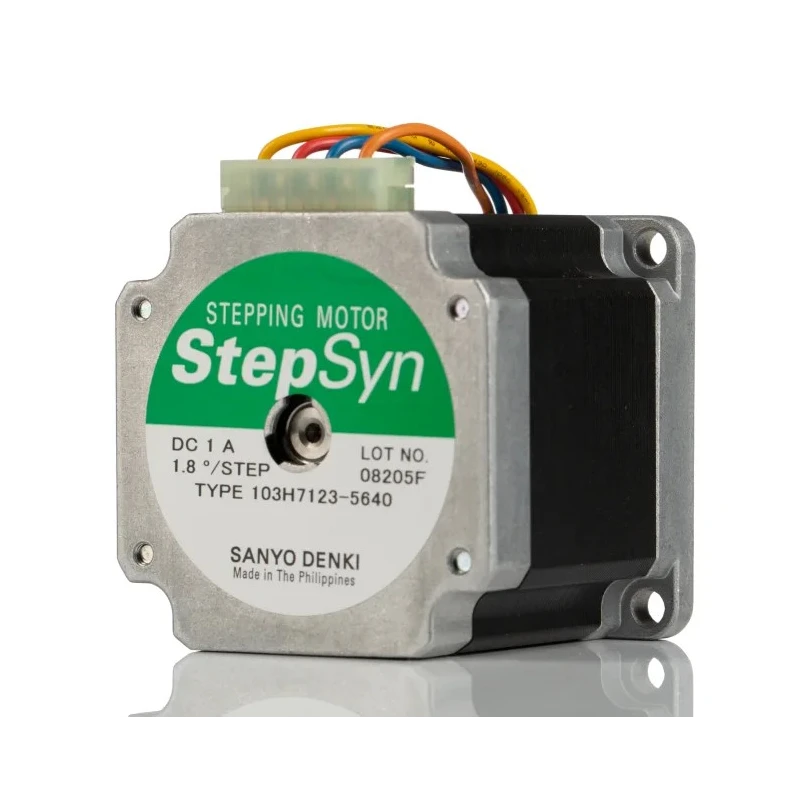

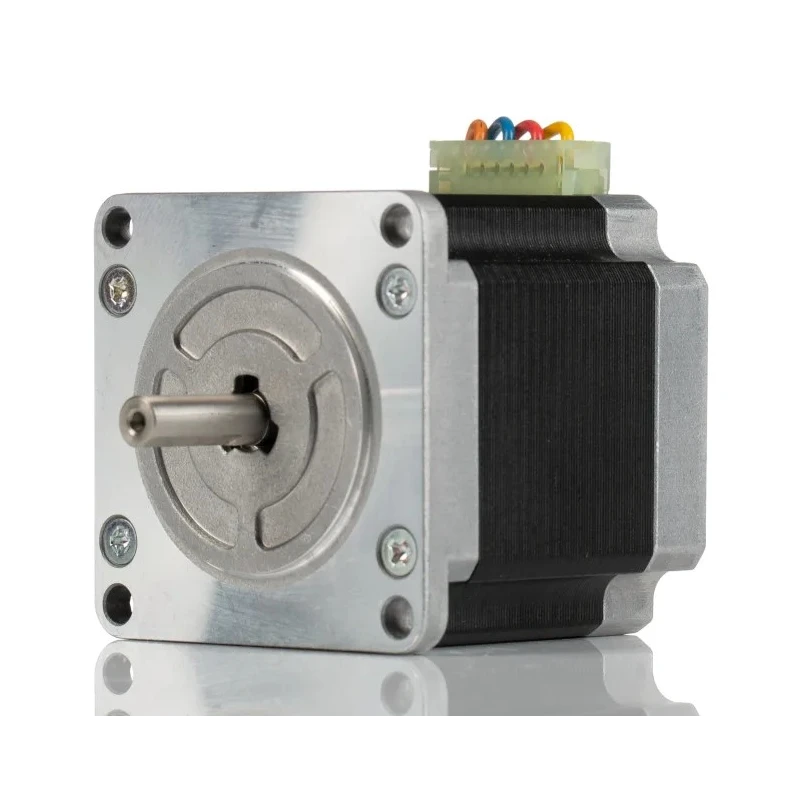

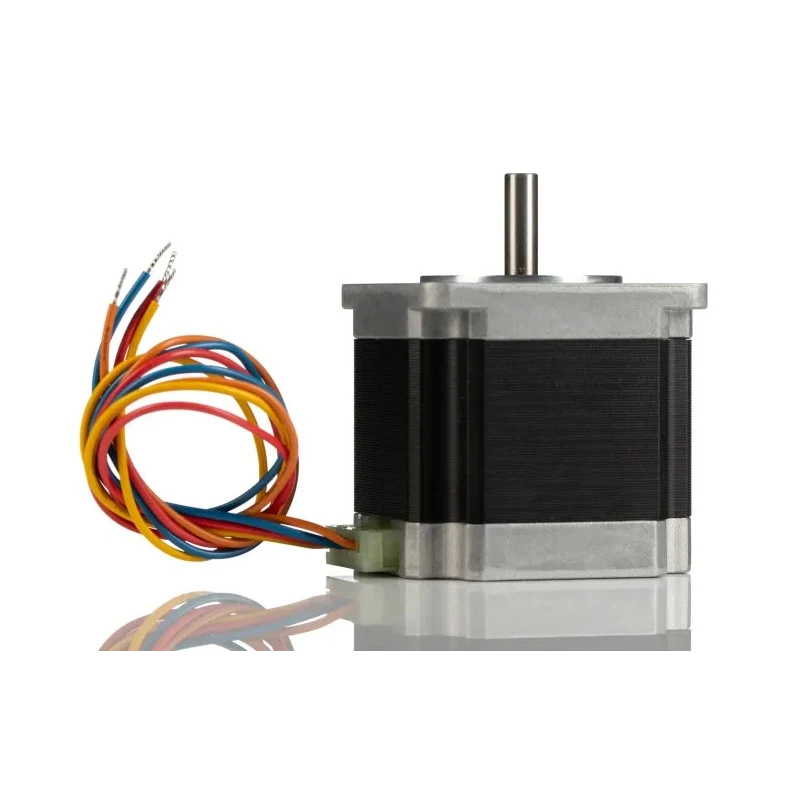

Sanyo Denki 103H7 Series Stepper Motor 24V, 1Nm Holding Torque, 1.8° Step Angle, 56x56 mm Frame Size, 6.35 mm 103H7123-5640
Specifications
| Country of Origin | Philippines |
|---|---|
| Voltage | 24V |
| Brand | Sanyo Denki |
| Model | 103H7123-5640 |
| Depth | 55.3mm |
| IP Rating | IP40, IP43, IP65 |
| Current Rating | 1A |
| Series | 103H7 |
| Frame Size | 56 x 56 mm |
| Shaft Diameter | 6.35mm |
| Shaft Length | 20.6mm |
| Standards/Approvals | CE, RoHS Compliant, TUV, UL |
| Step Angle | 1.8° |
| Holding Torque | 1Nm |
| Winding Arrangement | Bipolar |
| Detent Torque | 1000mNm |
Key Features
- Features a compact 56x56 mm frame size for space-saving integration.
- Bipolar winding arrangement ensures efficient current use.
- Equipped with a 6.35 mm shaft diameter and 20.6 mm shaft length for robust mechanical coupling.
- Designed to operate within a wide temperature range from -10°C to +50°C.
- Has an IP rating including IP40, IP43, and IP65 for various environmental protections.
- Compliant with CE, RoHS, TUV, and UL standards for quality and safety.
- Resistant to vibrations across 10 to 500 Hz frequency range, ensuring reliability in heavy-duty applications.
- Ideal for precision positioning equipment, robotics, process automation, and fluid control systems.
Product Description
Sanyo Denki 103H7123-5640 is a high-precision stepper motor from the 103H7 Series designed to provide accurate motion control in industrial applications. Operating at 24V with a holding torque of 1Nm and a precise step angle of 1.8°, this motor is engineered to deliver smooth and reliable performance.
The motor features a compact 56x56 mm frame size coupled with a 6.35 mm shaft diameter and 20.6 mm shaft length, making it suitable for tight installations while maintaining robust mechanical coupling capabilities. Its bipolar winding arrangement contributes to efficient current management and consistent operation.
It is rated with multiple IP protection levels including IP40, IP43, and IP65, offering protection from solid objects and water ingress, adaptable to diverse industrial environments. Designed to operate effectively within a temperature range of -10°C to +50°C, the motor is also vibration resistant across frequencies from 10 Hz to 500 Hz, ensuring durability under rigorous conditions.
This stepper motor complies with international standards CE, RoHS, TUV, and UL, confirming its safety and environmental compliance. Its typical applications include precision positioning equipment, robotics, process automation lines, packaging machinery, and fluid control systems where precise, controlled motion is critical.
Manufactured in the Philippines, the 103H7123-5640 motor upholds high quality and reliability standards crucial for demanding industrial and laboratory settings. Compact 56x56 mm frame design. 1.8° step angle for fine resolution.
1Nm holding torque for strong motor force. Bipolar winding configuration. IP40, IP43, IP65 ratings for environmental protection. Wide temperature range -10°C to +50°C. Vibration resistance from 10 to 500 Hz. Compliant with CE, RoHS, TUV, UL standards.
Manufactured in Philippines for assured quality. Explore a broad range of premium Stepper Motors and other motion control products at EnvMart for your industrial automation and robotics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of this stepper motor is 1Nm.
The step angle of the Sanyo Denki 103H7123-5640 is 1.8°.
This motor has a compact frame size of 56x56 mm and a depth of 55.3 mm.
The shaft diameter is 6.35 mm and the shaft length is 20.6 mm.
It operates at a voltage of 24V.
The motor is rated with IP40, IP43, and IP65 for various environmental protections.
It is designed to operate within a temperature range of -10°C to +50°C.
This model complies with CE, RoHS, TUV, and UL standards for quality and safety.
It features a bipolar winding arrangement for efficient current use.
It is resistant to vibrations across a frequency range of 10 to 500 Hz.
This stepper motor is ideal for precision positioning equipment, robotics, process automation, and fluid control systems.
The current rating for the Sanyo Denki 103H7123-5640 is 1A.
