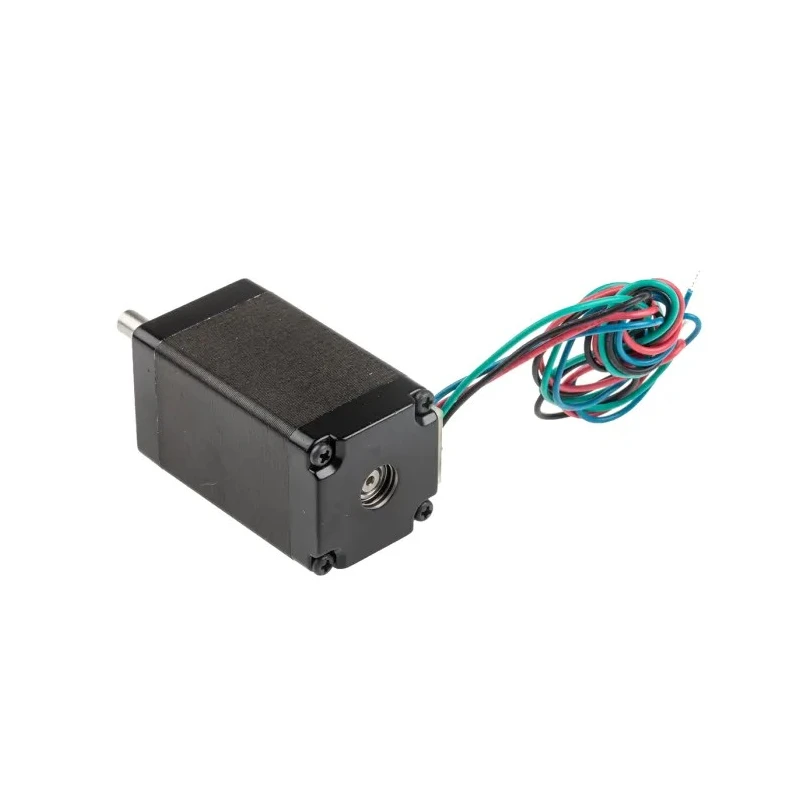

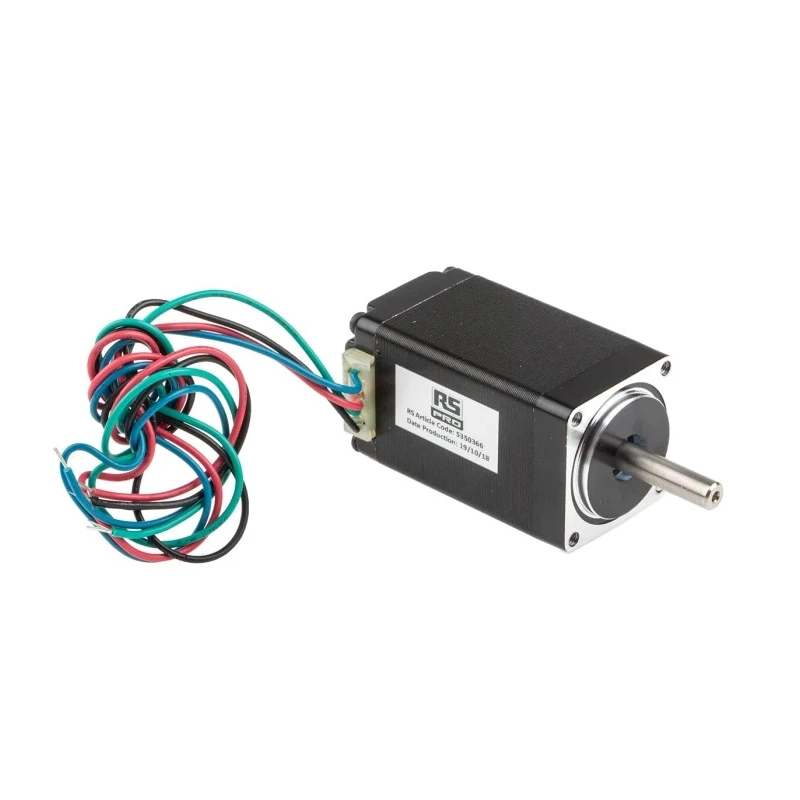

RS PRO Hybrid Stepper Motor 6.2 V, 0.12 Nm Holding Torque, 1.8° Step Angle, 28 x 28 mm Frame, 5 mm Shaft 535-0366
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 6.2V |
| Brand | RS PRO |
| Model | 535-0366 |
| Depth | 51mm |
| IP Rating | IP54, IP65 |
| Width | 28mm |
| Current Rating | 670mA |
| Frame Size | 28 x 28 mm |
| Output Speed | 186rpm |
| Shaft Diameter | 5mm |
| Shaft Length | 22mm |
| Standards/Approvals | RoHS Compliant |
| Step Angle | 1.8° |
| Holding Torque | 0.12Nm |
| Winding Arrangement | Bipolar, Unipolar |
| Number of Pole Pairs | 1 |
| Detent Torque | 5mNm |
| RS PRO Hybrid Stepper Motor 0.9 °, 1.8 °, 1260mNm, 60 V dcBrand | RS PRO |
Key Features
- This stepper motor features a 1.8° step angle for fine movement increments.
- It has a bipolar, unipolar winding arrangement with a current rating of 670 mA.
- The motor has a compact 28 x 28 mm frame size with a 5 mm diameter shaft.
- It offers IP54 and IP65 ratings for robust environmental protection.
- The motor includes a 22 mm shaft length and a depth of 51 mm for mounting compatibility.
- Resistance per phase is 9.2 Ω contributing to efficient electrical performance.
- The motor speed reaches up to 186 rpm, suitable for low RPM precision tasks.
- Detent torque is measured at 5 mNm, helping maintain position when unpowered.
Product Description
The RS PRO 535-0366 Hybrid Stepper Motor is a brushless motion control device rated at 6.2 volts and delivering a holding torque of 0.12 newton meters. It features a precise 1.8° step angle that enables accurate incremental movements, ideal for low RPM applications demanding high positional control.
Designed with a 28 mm by 28 mm frame and a 5 mm diameter shaft, this motor fits compact setups and includes a 22 mm shaft length and 51 mm depth for versatile mounting requirements. The bipolar, unipolar winding arrangement combined with a current rating of 670 mA and a resistance per phase of 9.2 ohms ensures effective electrical function and power delivery.
Its IP54 and IP65 ingress protection ratings provide good resistance against dust and water, making it suitable for various industrial environments. The output speed can reach up to 186 rpm, and a detent torque of 5 mNm helps maintain shaft position when unpowered.
Compliant with RoHS directives, the motor is environmentally friendly and free from hazardous substances. These qualities make it suitable for industrial, laboratory, automation, and electronics applications such as laser positioning, optics, linear actuators, rotation stages, and precise mechanical systems.
This stepper motor offers a step angle of 1.8° for precise movement control. It delivers a holding torque of 0.12 Nm for steady positioning. The motor has a compact 28 x 28 mm frame size and 5 mm diameter shaft for easy integration.
With 670 mA current rating and 9.2 Ω resistance per phase, it ensures reliable electrical performance. It features IP54 and IP65 ratings for dust and water protection in demanding environments. Output speed up to 186 rpm supports smooth operational dynamics.
Detent torque of 5 mNm aids in load holding during power off conditions. RoHS compliance guarantees environmentally responsible manufacturing. Explore the extensive selection of motors and stepper solutions available for your automation and motion control needs on EnvMart.
Explore more products in our Stepper Motors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of this model is 0.12 Nm, providing steady positioning during operation.
This stepper motor features a step angle of 1.8°, allowing for precise incremental movements.
The motor has a compact frame size of 28 x 28 mm, with a shaft diameter of 5 mm and a shaft length of 22 mm.
The output speed can reach up to 186 rpm, suitable for low RPM precision tasks.
It has a current rating of 670 mA, ensuring effective electrical performance.
The motor has IP54 and IP65 ratings, providing protection against dust and water in various environments.
This model features a bipolar, unipolar winding arrangement for its operation.
The resistance per phase is 9.2 Ω, contributing to its efficient electrical performance.
The detent torque is measured at 5 mNm, helping to maintain the position when unpowered.
Yes, this motor is RoHS compliant, ensuring it is free from hazardous substances.
The depth of this model is 51 mm, which is important for mounting compatibility.
It is suitable for applications such as laser positioning, optics, linear actuators, and precise mechanical systems.
