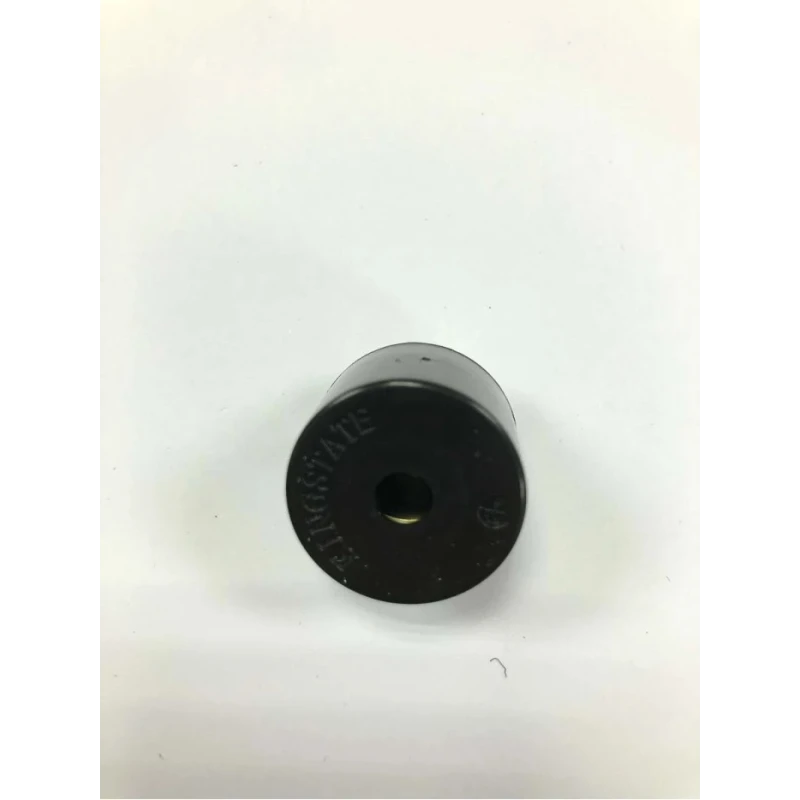

RS PRO 78 dB Through Hole Continuous Internal 16 mm Piezo Buzzer Component 3V dc Min 20V dc Max 181-2660

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 78 dB Through Hole Continuous Internal 16 mm Piezo Buzzer Component 3V dc Min 20V dc Max 181-2660

Name: RS PRO 78 dB Through Hole Continuous Internal 16 mm Piezo Buzzer Component 3V dc Min 20V dc Max 181-2660
Brand: RS PRO
SKU: 420851
Price: 1.88 USD
Availability: InStock



Category Piezo Buzzer Component Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Diameter	23.8mm
Brand	RS PRO
Sound Level	78dB
Height	16mm
Model	181-2660
Drive Type	Internal
Mount Type	Through Hole
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Standards/Approvals	RoHS
Maximum Frequency	3.4kHz
Termination Style	Pin
Maximum Supply Voltage	20V dc
Minimum Supply Voltage	3V dc
Supply Current	6mA
Tone Type	Continuous
Minimum Frequency	2.4kHz

Key Features

Designed with an internal drive type delivering consistent buzzer sound.
Diameter measures 23.8 mm with a height of 16 mm for compact installation.
Operates reliably in temperature ranges from -30°C to 85°C.
Features a pin termination style for secure and easy PCB mounting.
Compatible with frequencies between 2.4 kHz and 3.4 kHz.
Supply current is 6 mA, ensuring low power consumption.
Constructed with high heat ABS UL-94 1/16” HB BLACK material for durability.
Certified RoHS compliant, supporting environmental standards.

Product Description

RS PRO 181-2660 Piezo Buzzer Component is a robust electronic sound indicator designed for a variety of industrial, electronic, and laboratory applications. Featuring through hole mounting and a pin termination style, this buzzer operates with a continuous tone at 78 dB sound level, making it suitable for alert systems and notification purposes.

It supports a wide supply voltage range from 3 V dc minimum to 20 V dc maximum, allowing versatile use in different electronic devices. The buzzer's diameter is 23.8 mm with a height of 16 mm, which supports integration into compact setups. Its frequency range of 2.4 kHz to 3.4 kHz ensures clear audio signals with efficient power consumption, drawing only 6 mA supply current.

This component works effectively in harsh environments with an operating temperature range from -30°C to +85°C. Manufactured from high heat ABS UL-94 1/16” HB BLACK plastic, it delivers excellent resistance to heat and mechanical wear. The product complies with RoHS directives, underlining its safety and sustainability credentials.

Typical applications include industrial control panels, electronic circuits, alarm systems, and equipment signaling in manufacturing and automation. Its internal drive type design ensures high reliability and consistent sound production, critical for time-sensitive alerts in commercial and industrial setups.

Internal drive type for stable buzzer output. Continuous tone provides clear audible indication. Through hole mount with pin termination for easy PCB integration. High heat resistant ABS material for durability and safety.

Wide temperature range enables use in varied industrial environments. Compliant with RoHS environmental standards.

RS PRO products are engineered for performance and reliability, making this piezo buzzer an ideal choice for professional electronic component needs. Browse more piezo buzzers and electronic components on EnvMart for your specific project requirements.
