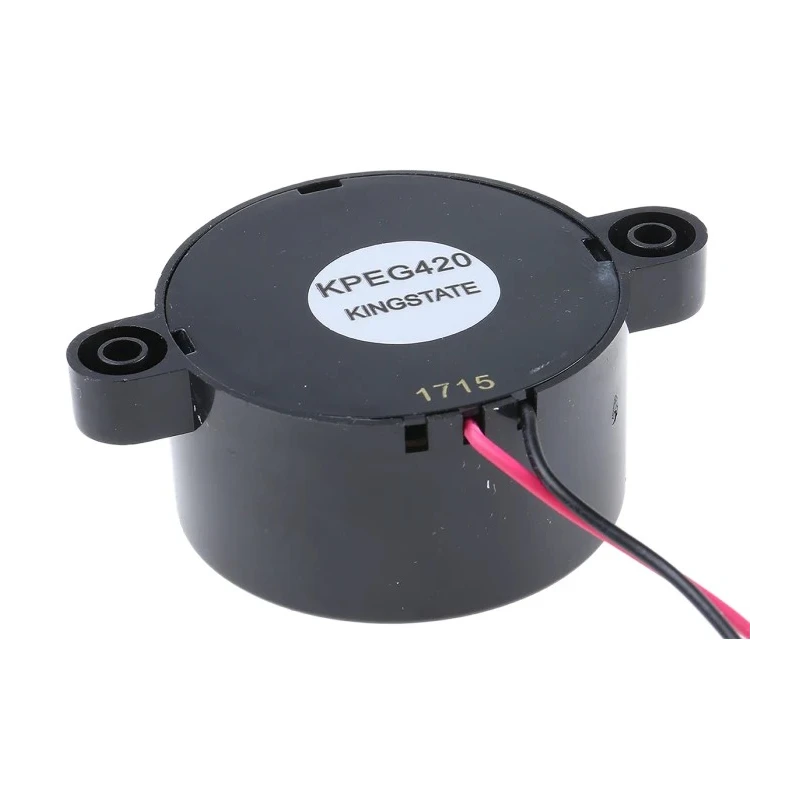

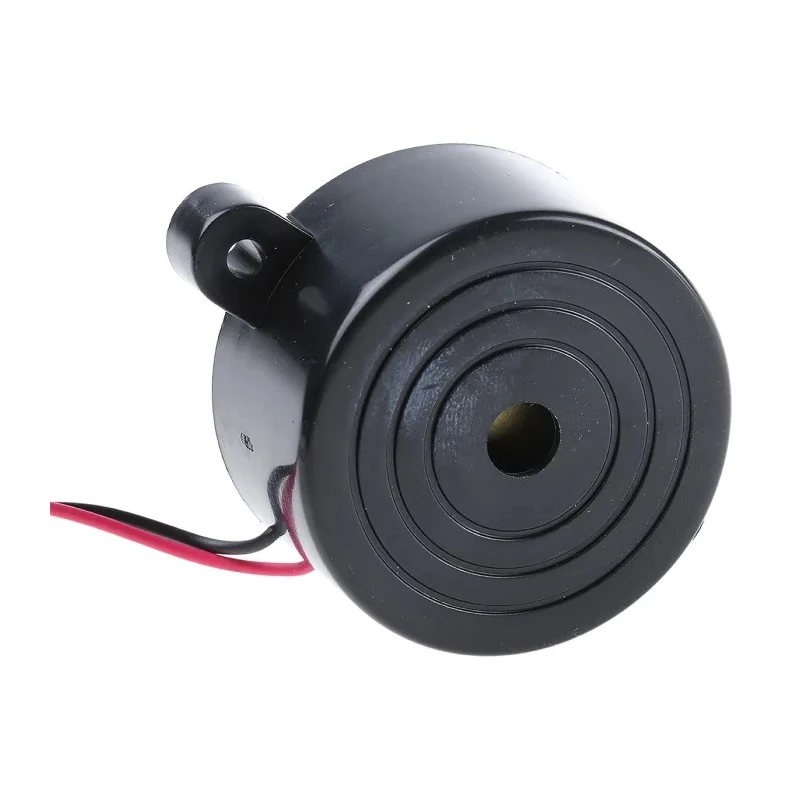

RS PRO 102 dB Panel Mount Continuous Internal 22 mm Piezo Buzzer Component 59.5 mm Length 3 V dc Min 16 V dc Max 7542015P

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 102 dB Panel Mount Continuous Internal 22 mm Piezo Buzzer Component 59.5 mm Length 3 V dc Min 16 V dc Max 7542015P

Name: RS PRO 102 dB Panel Mount Continuous Internal 22 mm Piezo Buzzer Component 59.5 mm Length 3 V dc Min 16 V dc Max 7542015P
Brand: RS PRO
SKU: 425685
Price: 5.14 USD
Availability: InStock



Category Piezo Buzzer Component Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Diameter	41.8mm
Brand	RS PRO
Sound Level	102dB
Height	22mm
Length	59.5mm
Model	7542015P
Drive Type	Internal
Mount Type	Panel Mount
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Standards/Approvals	RoHS
Maximum Frequency	3.3kHz
Maximum Supply Voltage	16V dc
Minimum Supply Voltage	3V dc
Supply Current	40mA
Tone Type	Continuous
Minimum Frequency	2300Hz

Key Features

This buzzer emits a high-volume alert at 102 dB comparable to a car horn.
Designed for panel mount installation with flange screw mounting versatility.
Operates over a temperature range from -30°C to +85°C.
Continuous tone output with frequencies ranging from 2300 Hz to 3.3 kHz.
Low supply current consumption of 40 mA at the rated voltage.
Durable ABS housing suitable for harsh industrial environments.
Ideal for alarm applications in freezer doors, secure doors, and automation systems.
Compact dimensions with 22 mm height for easy PCB integration.

Product Description

RS PRO 7542015P Piezo Buzzer Component is a high-performance panel mount continuous internal buzzer that produces a loud alert sound of 102 dB at frequencies between 2300 Hz and 3.3 kHz. Operating on a minimum voltage of 3 V DC and a maximum of 16 V DC, it offers versatile use across various industrial and commercial alerting applications.

Its compact design features a diameter of 41.8 mm, length of 59.5 mm, and a height of 22 mm, enabling straightforward integration onto printed circuit boards with flange screw mounting options for secure installation. The internal drive type ensures reliable continuous tone delivery with minimal current draw of 40 mA, enhancing energy efficiency.

Constructed with a robust acrylonitrile butadiene styrene (ABS) housing, the buzzer withstands harsh operating environments and temperatures ranging from -30°C to +85°C. These properties make it well-suited for use as an alarm in freezers, secure access points, factory automation, and agricultural gate monitoring.

The RS PRO 7542015P buzzer complies with RoHS standards, supporting environmentally responsible manufacturing practices. Its loud output, compact panel mount form factor, and durable construction provide an excellent solution for high-volume alert signaling in industrial, commercial, laboratory, HVAC, and manufacturing settings.

This buzzer emits a high-volume alert at 102 dB comparable to a car horn. Designed for panel mount installation with flange screw mounting versatility. Operates over a temperature range from -30°C to +85°C. Continuous tone output with frequencies ranging from 2300 Hz to 3.3 kHz.

Low supply current consumption of 40 mA at the rated voltage. Durable ABS housing suitable for harsh industrial environments. Ideal for alarm applications in freezer doors, secure doors, and automation systems. Compact dimensions with 22 mm height for easy PCB integration.

This product is part of the wide range of Piezo Buzzer Components available at EnvMart, ideal for professional use and reliable industrial alerting solutions.
