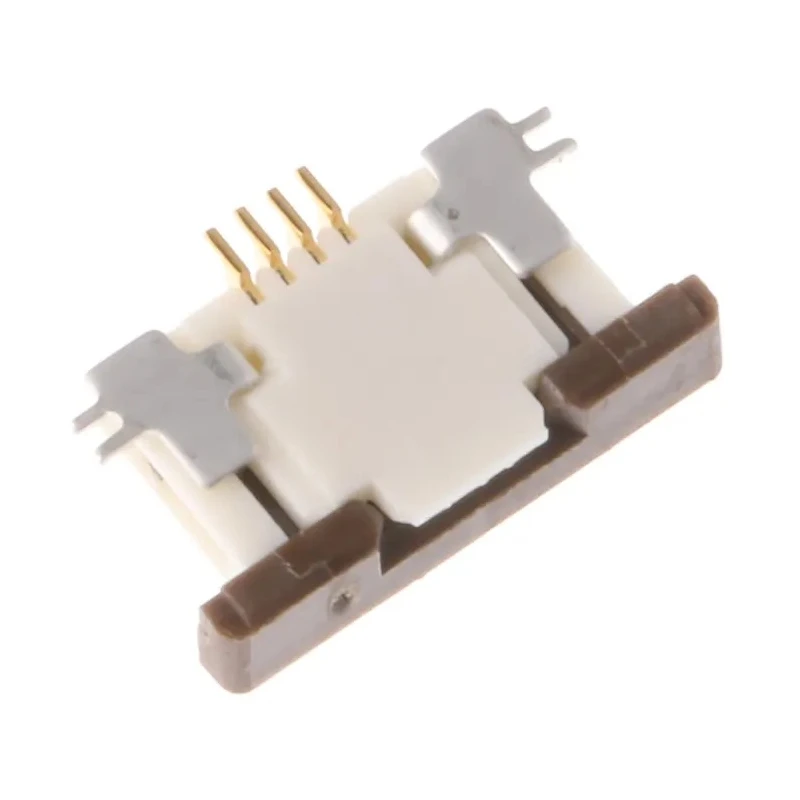

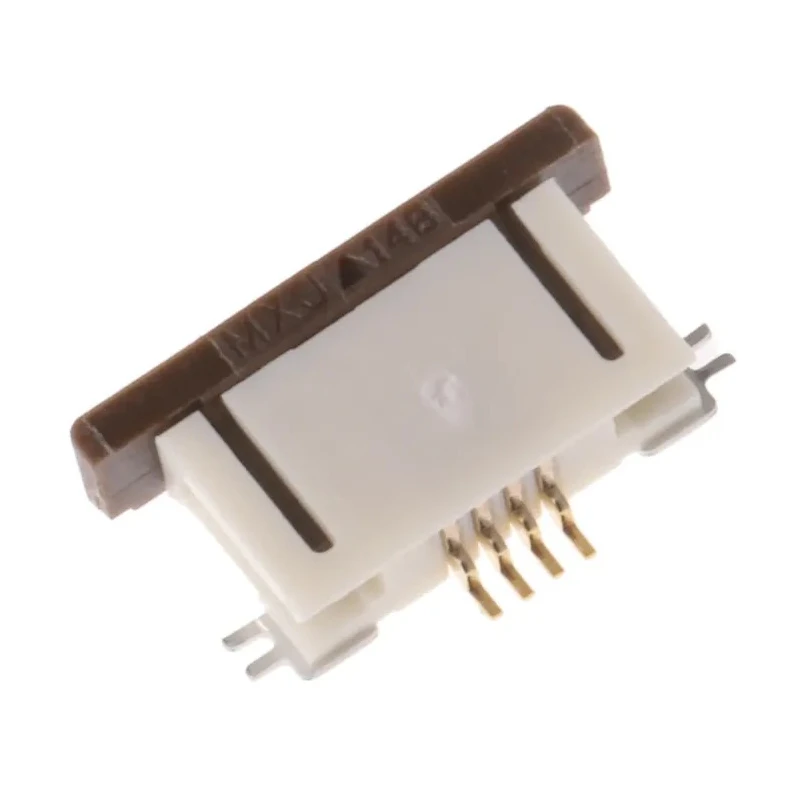

Molex 0.5 mm Pitch 4 Way Right Angle Female Easy-On FPC Connector, Solder Termination 52746-0471

Molex 52746-0471 0.5 mm Pitch 4 Way Right Angle Female Easy-On FPC Connector, with solder termination, offers a high-density and reliable interconnection solution. This connector features a Zero Insertion Force (ZIF) slide type actuator that facilitates easy insertion and secure engagement of flexible printed circuits (FPCs), minimizing wear and tear for repeated cycles.

The 52746 series connectors incorporate movable phosphor bronze contacts plated with gold over nickel, providing excellent conductivity and resistance to corrosion. The top-aligned contacts are designed to move with the cable when pulled, maintaining secure contact retention and electrical continuity even under mechanical stress.

Constructed with a durable nylon housing and fitted with solder tabs (nails) on the base, the connector ensures strong retention on the PCB and strain relief for solder tail joints, enhancing overall mechanical stability. The right angle contact position and 0.5 mm pitch are specifically designed to save space in compact electronic assemblies.

This connector series supports voltages up to 50 V, carrying currents of 500 mA, and is rated for operation between -20°C and 85°C, making it suitable for a variety of demanding environments. The locking mechanism further secures the FPC cable during use, preventing accidental disconnection.

Molex Easy-On FPC Connectors find applications in several high-demand industries such as automotive navigation and audio systems, digital cameras, home security devices, tablet and notebook PCs, patient monitors, GPS units, smartphones, and tablets. Their compact form factor and reliable performance make them ideal for tight packaging electronic designs requiring dependable flexible cable connections.

Zero insertion force slide actuator ensures ease of use and durability. Gold over nickel plating on phosphor bronze contacts provides reliable electrical performance. Nylon housing supports mechanical strength and electrical insulation.

Solder tabs offer secure PCB attachment and strain relief. Compact right angle orientation optimizes PCB space utilization. Wide temperature range (-20°C to 85°C) suitable for various applications. Ideal for automotive, telecommunications, medical, consumer electronics, and mobile devices.
