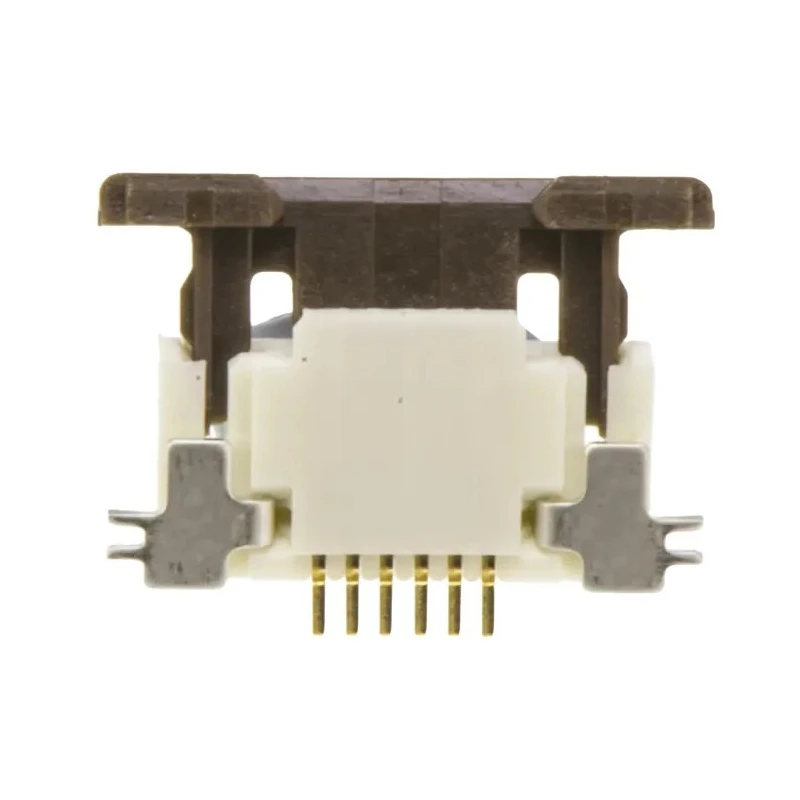

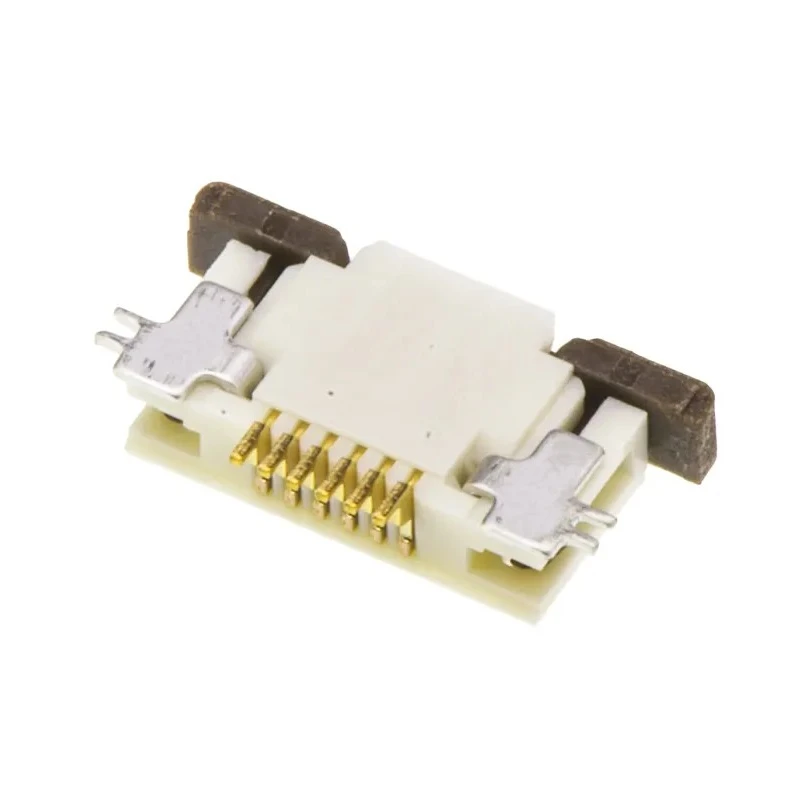

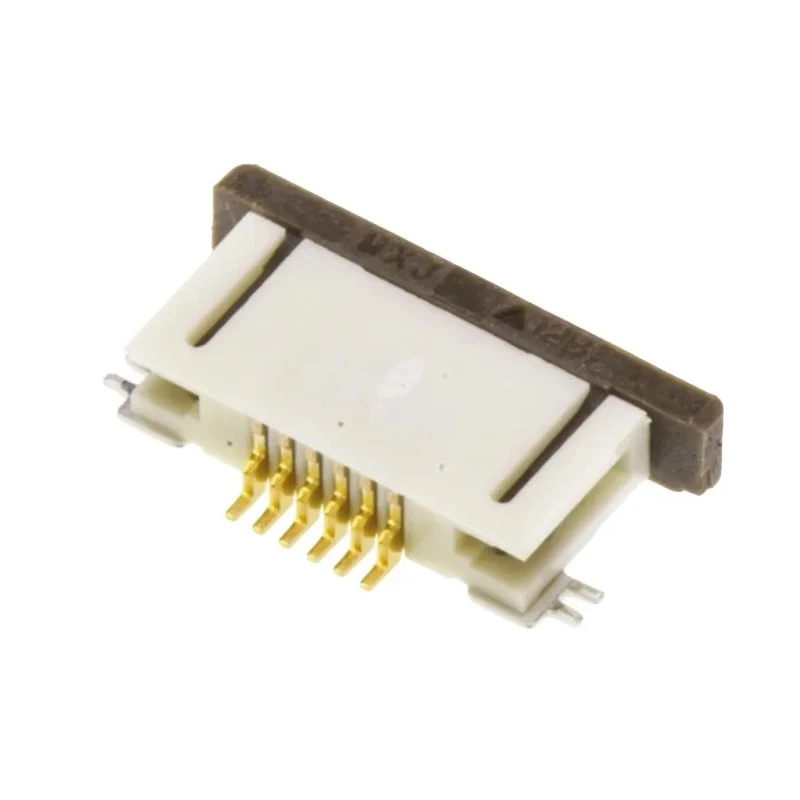

Molex 0.5 mm Pitch 6 Way Right Angle Female FPC Connector Solder 52746-0671

Molex 52746-0671 is a 0.5 mm pitch, 6 way right angle female FPC connector designed for high-density electronic interconnections requiring reliable signal transmission. This solder termination connector features a zero insertion force (ZIF) slide actuator that ensures secure and repeatable connections with minimal wear, making it ideal for applications in automotive, consumer electronics, medical devices, datacommunications, and mobile technology.

The connector contacts are made from phosphor bronze with gold over nickel plating, providing excellent conductivity and corrosion resistance. Its nylon housing offers robust mechanical support and insulation, suitable for operating temperatures from -20°C to 85°C. The right angle orientation and surface mount design enable a compact fit on printed circuit boards where space saving is critical.

Molex's Easy On 52746 series includes hinged actuators to facilitate easier insertion of flexible printed circuits (FPC), while maintaining secure contact retention. The solder tabs at the base provide mechanical strength and strain relief for soldered tails, enhancing durability in dynamic industrial environments.

Primary uses include automotive infotainment systems, digital cameras, home security devices, tablets, smartphones, GPS systems, and medical patient monitoring equipment. These connectors are part of a modular ecosystem supporting high-density FPC cable interconnections and benefit industries requiring compact, reliable connectivity solutions.

Zero insertion force (ZIF) slide type actuator enables secure, low-wear connections. Phosphor bronze contacts with gold over nickel plating provide reliable signal integrity. Right angle female connector with solder termination for surface mounting.

Nylon housing material ensures mechanical durability and electrical insulation. Operating voltage of 50V and current rating of 500mA support various electronics applications. Operating temperature range from -20°C to 85°C suitable for diverse industrial conditions.

Solder tabs assure secure PCB retention and strain relief at solder joints. Hinged actuator design offers easy FPC insertion and secure contact retention. Explore our wide selection of precision FPC Connectors for electronics manufacturing and design at EnvMart.
