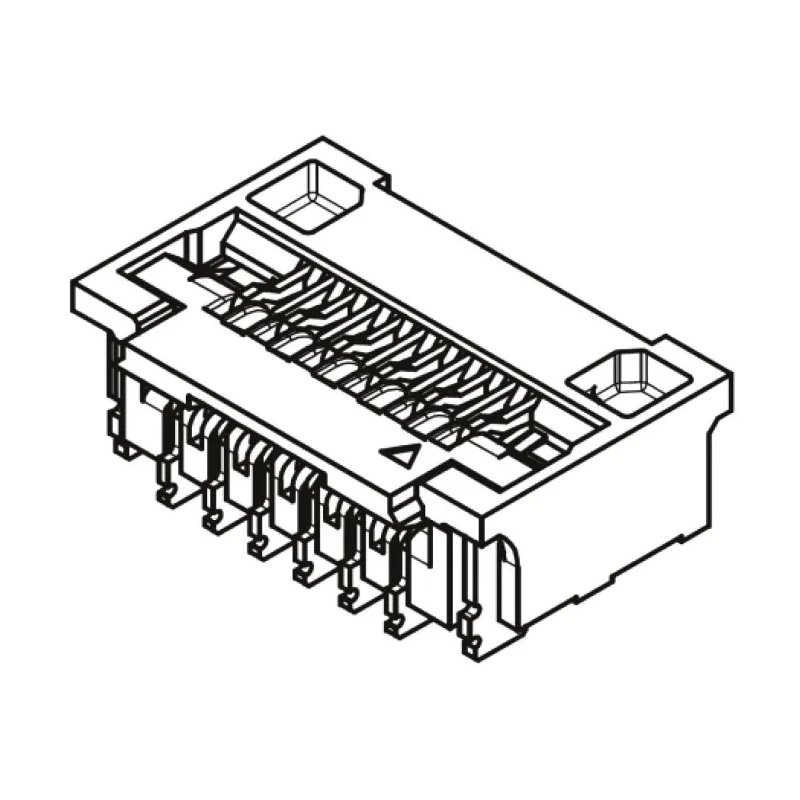

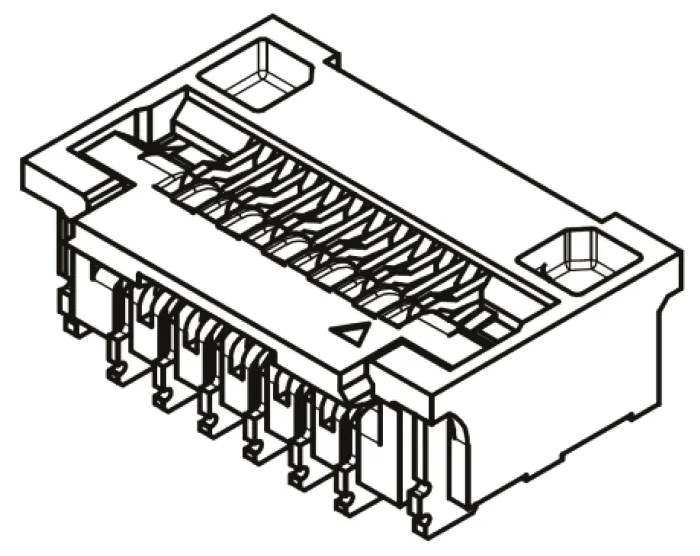

Molex 0.25 mm Pitch 25 Way Right Angle Female FPC Connector, Bottom Contact 502078-2510

Molex 502078-2510 is a 0.25 mm pitch, 25 way right angle female FPC connector with bottom contact, engineered for surface mounting applications. It features a compact 1.0 mm height design within the Molex Easy-On 502078 series, providing a space-saving and reliable connection solution for modern electronic assemblies.

The connector’s contacts are crafted from copper alloy, plated with gold over nickel to provide excellent conductivity and corrosion resistance. Its unique spring feature on alternate terminals maintains consistent electrical contact even under flexing conditions, ensuring enduring performance in demanding environments.

This FPC Connector supports a current rating of 200mA and an operating voltage of 50 volts AC, making it suitable for low-power electronic circuits. The full Zero Insertion Force (ZIF) design simplifies cable insertion and significantly reduces the risk of damage to flexible printed circuits during assembly.

With a temperature tolerance ranging from -20°C to 85°C, this connector can be deployed in diverse industrial, commercial, and electronic equipment applications that require reliable flexible cable connections. The housing is constructed from high-grade thermoplastic material, ensuring effective insulation and durability.

The right-angle orientation and locking mechanism allow for secure cable retention in tight spaces, optimizing PCB layout efficiency. This product is ideal for use in electronics manufacturing, telecommunications equipment, consumer electronics, instrumentation, and other industrial contexts where compact, high-density flexible cable connectors are required.

This connector has 25 female contacts arranged in a single row. Contact plating is gold over nickel to enhance corrosion resistance. It is designed as a surface-mount device with bottom contact termination. Operating temperature ranges from -20°C to 85°C.
