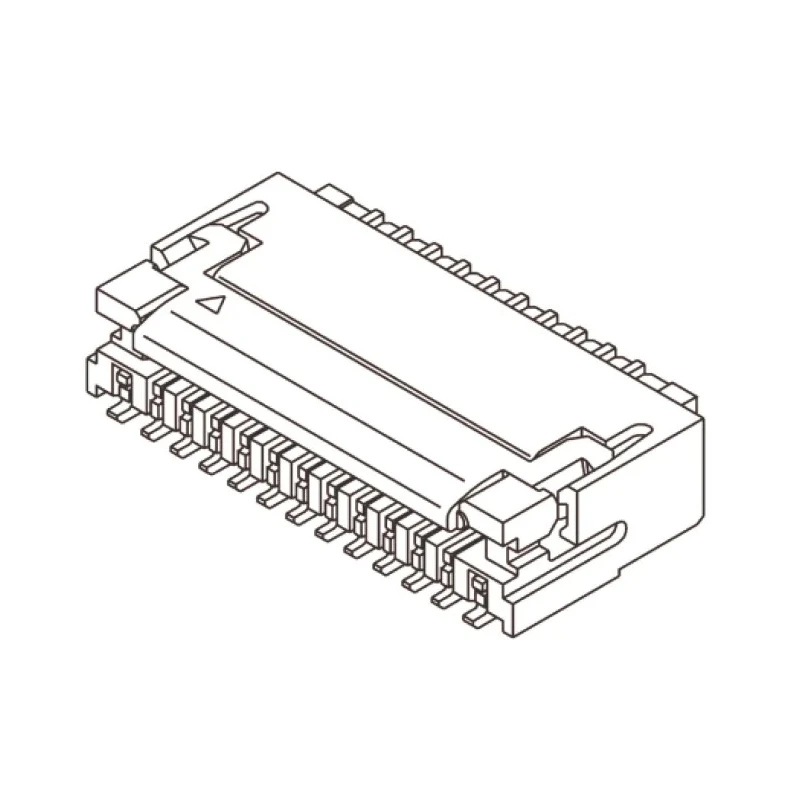

Molex 0.3 mm Pitch 39 Way Right Angle FPC Connector, ZIF Bottom Contact 54393-3982

The Molex 54393-3982 is a 0.3 mm pitch, 39 way right angle FPC connector designed with zero insertion force (ZIF) bottom contact technology to facilitate easy connection and disconnection of flexible printed circuits. This surface mount connector is ideal for compact PCB layouts, saving space while maintaining reliable electrical performance.

Constructed with phosphor bronze contacts plated with tin over nickel, the connector ensures excellent conductivity and corrosion resistance. Its thermoplastic housing provides strength and durability to support frequent cable insertions and removals.

The right-angle orientation allows for flexible routing of cables in various electronic assemblies, making it suitable for consumer electronics, communications, computing, and industrial applications. The actuator mechanism can rotate back 100 degrees to enable effortless insertion of FPC cables, reducing the risk of damage.

The connector supports up to 50 V voltage and 200 mA current, operating efficiently between -20°C and 85°C to withstand diverse environmental conditions. The series also incorporates a cable pre-hold feature that securely holds the flex cable in place during insertion, aiding manufacturing processes and ensuring consistent contact reliability.

As part of Molex's 54393 series, this component is supplied on a reel, optimizing assembly line efficiency. It is made in China, guaranteeing adherence to international standards and quality controls.

39 contacts with 0.3 mm pitch for high-density connections. Phosphor bronze contacts with tin over nickel plating for lasting performance. Right angle orientation for versatile PCB layout options. Surface mount type suitable for automated PCB assembly.

Zero insertion force bottom contact improves cable longevity and ease of use. Operating voltage up to 50 V and 200 mA current rating. Temperature range from -20°C to 85°C for wide application use. Durable thermoplastic housing construction.

Actuator rotates back 100 degrees to facilitate cable insertion. Integrated cable pre-hold feature for secure FPC engagement.

Ideal for electronics industries, lab equipment, computing, telecommunications, and manufacturing facilities requiring compact, reliable, and high-performance FPC Connectors. Explore more Molex components and connectors on EnvMart for your specific application needs.
