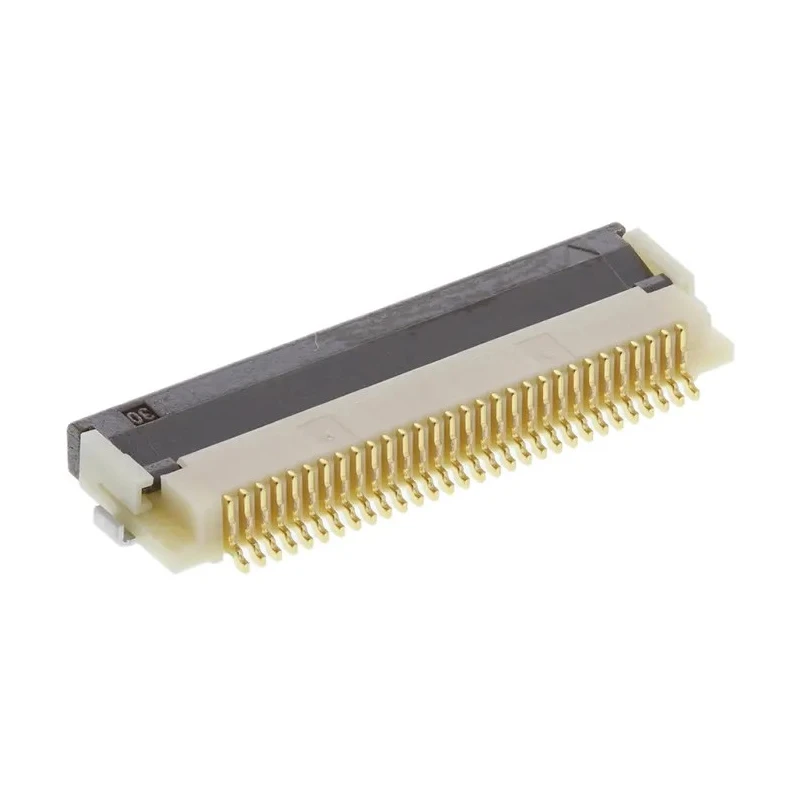

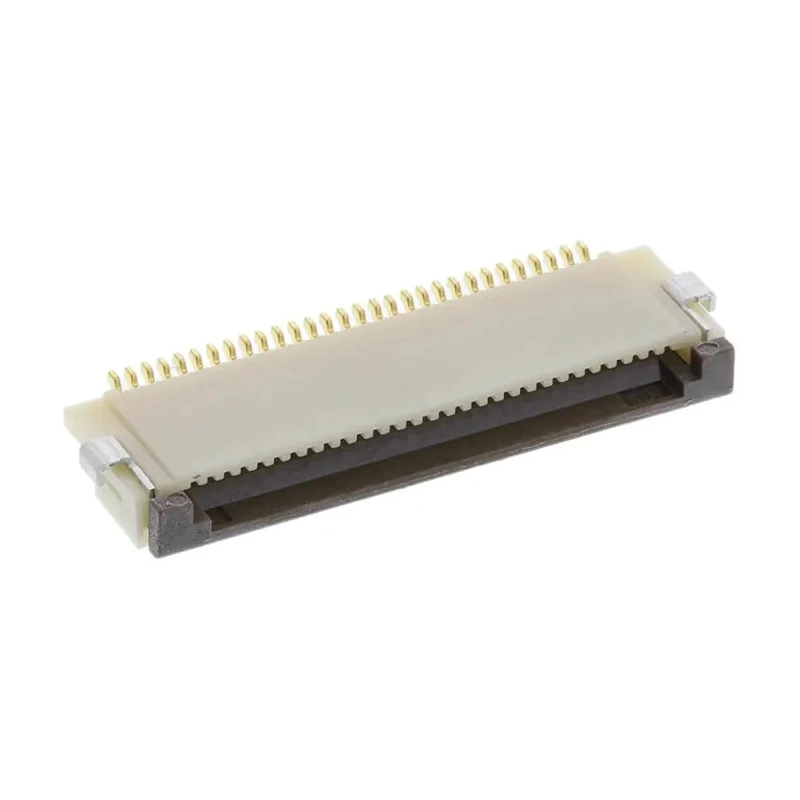

Hirose 0.5 mm Pitch 30 Way Right Angle Female FPC Connector Solder FH12

Hirose FH12 0.5 mm Pitch 30 Way Right Angle Female FPC Connector is a high-quality surface mount FPC/FFC connector designed with a zero insertion force (ZIF) one-touch rotating actuator that provides easy operation and a tactile click to confirm proper connection.

Featuring 30 phosphor bronze contacts plated with gold, this connector delivers excellent electrical performance with a current rating of 500mA and voltage rating of 50V AC. Its compact footprint and right angle orientation allow efficient use of PCB space in high density mounting scenarios. The housing material is robust polyamide, suitable for demanding industrial and electronic applications.

Operating reliably across a broad temperature range from -40°C to 70°C, this connector supports numerous uses including mobile phones, GPS devices, notebook PCs, data terminals, LCD televisions, digital and video cameras, and other small handheld devices requiring secure LCD connections.

This product includes a locking mechanism for connection reliability and has a single row configuration with bottom contacts. Manufactured in Japan, it meets high quality manufacturing standards.

One-touch rotating ZIF actuator provides easy and secure connector engagement. Gold plated phosphor bronze contacts ensure excellent electrical conductivity. Compact design suitable for high density PCB mounting. Supports operation at voltages up to 50V AC and currents up to 500mA.

Durable polyamide housing withstands harsh operating environments. Operates within temperature range of -40°C to +70°C. Ideal for electronic consumer devices and industrial electronics. Locking mechanism enhances connection stability.

30 contacts in single row enable ample connection points. Explore additional Hirose connectors and compatible FPC Connector products at EnvMart for your electronic assembly and manufacturing needs.
