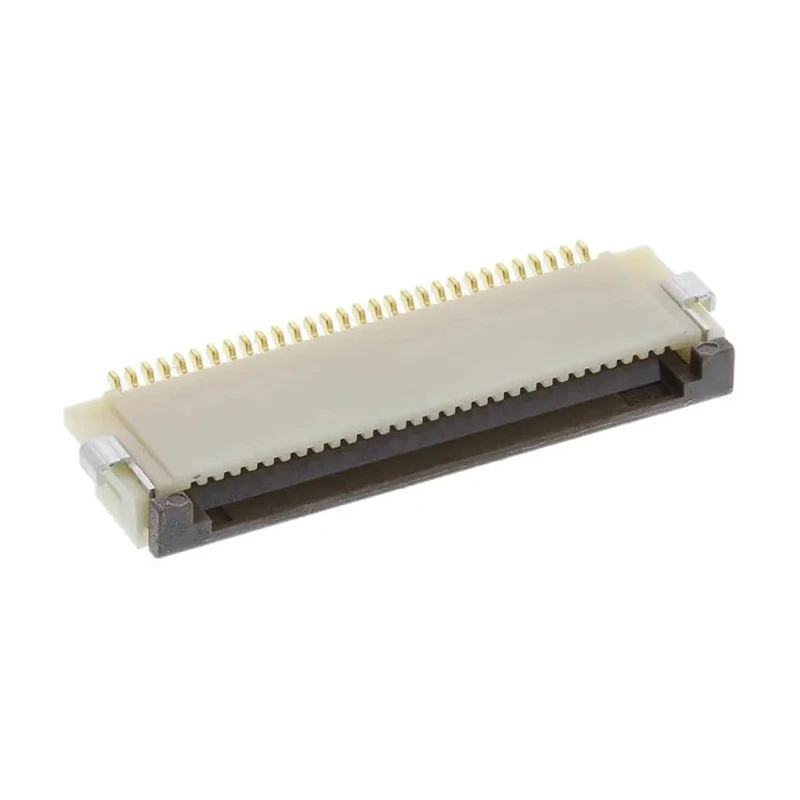

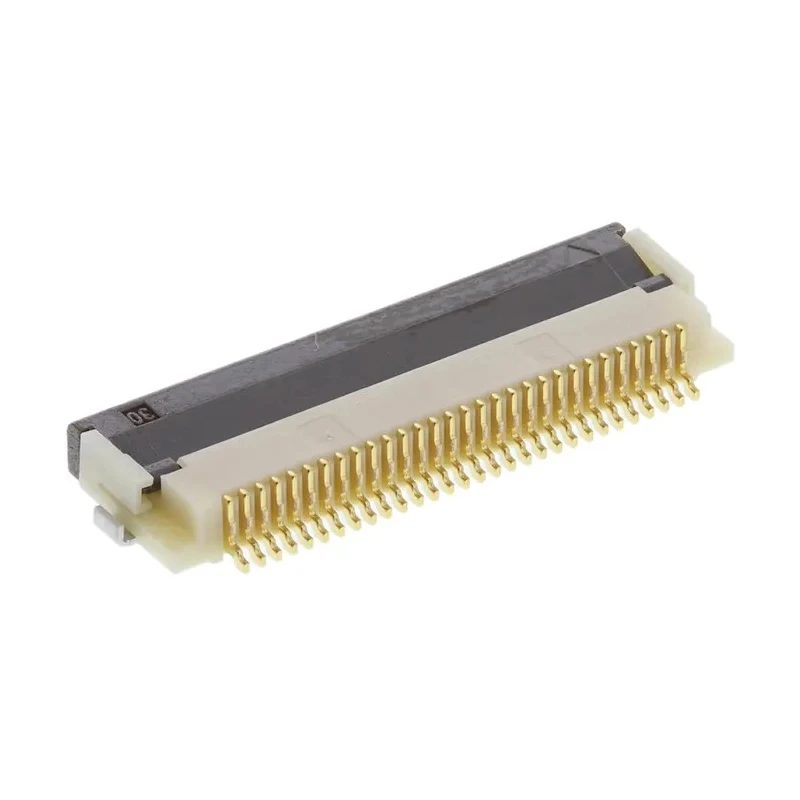

Hirose 0.5 mm Pitch 30 Way Right Angle Female FPC Connector, Solder FH12

Hirose FH12-30S-0.5SH(55) is a high precision 0.5 mm pitch, 30 way right angle female FPC connector designed for surface mount solder connections. It features a zero insertion force (ZIF) rotating actuator that allows easy and safe connection of flexible printed circuits without damaging contacts. The actuator delivers a tactile click to confirm secure mating and locking, preventing accidental disconnections during operation.

This connector's compact right-angle design optimizes PCB space, enabling high-density mounting in limited layouts. The contacts are constructed from phosphor bronze and finished with gold plating, providing excellent electrical performance and corrosion resistance. It carries current up to 500mA at 50 volts AC, suitable for various low power electronic signaling.

The connector supports a bottom contact configuration in a single row of 30 positions, allowing compatibility with flat flexible cables in numerous electronic applications. The robust polyamide housing offers mechanical protection under harsh industrial or commercial environments. Its operational temperature range from -40°C to +70°C ensures reliable performance across outdoor and indoor settings.

Applications include use in mobile phones, GPS devices, notebook computers, data terminals, LCD televisions, video cameras, and other handheld electronic devices where reliable, low-profile FPC connections are critical. Being manufactured in Japan, this Hirose connector offers quality and consistency aligned with demanding international standards.

This connector features a one-touch rotating zero insertion force (ZIF) actuator for easy cable insertion. The tactile click confirms proper mating and secure locking mechanism. It supports high-density mounting due to its compact right-angle design.

Contact material is phosphor bronze with gold plating for excellent conductivity and corrosion resistance. Rated for 500mA current and 50V AC voltage performance. Suitable for bottom contact with a single row of 30 contacts.

Operating temperature ranges from -40°C to +70°C for reliable performance in diverse environments. Housing is made from durable polyamide ensuring mechanical strength. Ideal for applications in mobile phones, GPS, notebook PCs, digital cameras, and LCD TVs.

Manufactured in Japan ensuring high quality standards. Explore our Electronics Components and FPC Connector range from Hirose at EnvMart for premium quality and trusted performance in your industrial and commercial projects.
