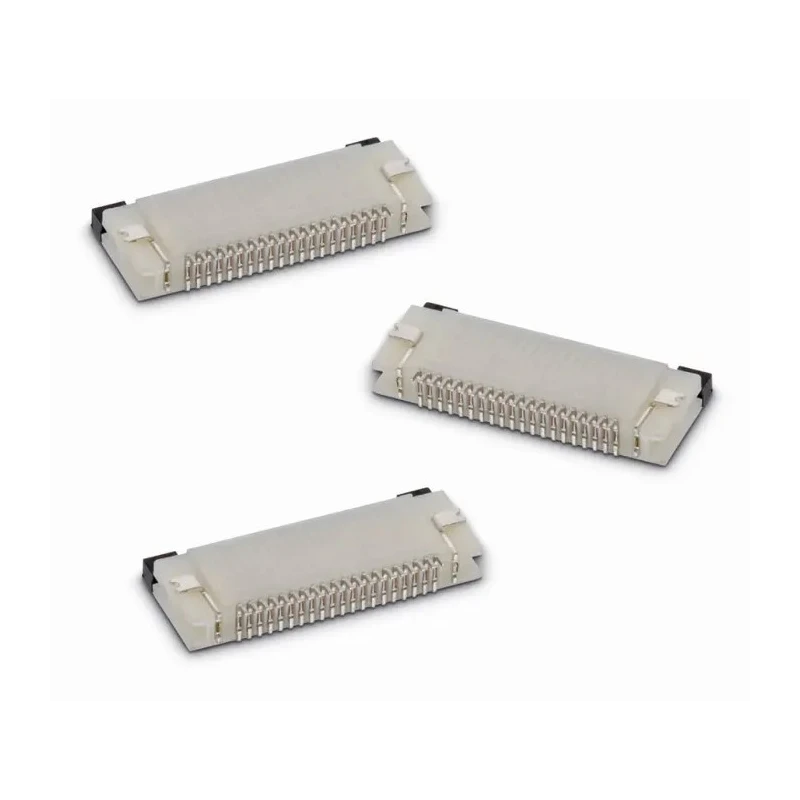

Wurth Elektronik WR-FPC 0.5 mm Pitch 16-Way Horizontal Male FPC Connector, ZIF Bottom Contact 687116149022
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF Bottom Contact |
| Maximum Operating Temperature | 105°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Male |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- 0.5 mm pitch facilitates high-density connections for compact electronics.
- 16-way horizontal male connector for flexible printed circuits (FPC).
- ZIF bottom contact termination enables secure cable insertion without excessive force.
- Flip-lock hinge actuator provides strong retention and solder security.
- Polyamide housing and phosphor bronze contacts for durability and reliability.
- Tin over nickel plating improves conductivity and corrosion resistance.
- Surface mount design simplifies PCB integration.
- Rated for up to 500 mA and 50V AC operation.
Product Description
Wurth Elektronik presents the WR-FPC 0.5 mm Pitch 16-Way Horizontal Male FPC Connector, model number 687116149022. This connector is specifically designed for applications requiring high-density and secure flexible cable connections in electronic assemblies, displays, keyboards, and other miniaturized devices.
Featuring a fine 0.5 mm pitch, the 16-way connector allows for space saving on PCBs while supporting direct cable insertion due to its ZIF (Zero Insertion Force) bottom contact mechanism. The flip-lock actuator ensures that once the cable is inserted, it remains firmly locked and electrically connected, reducing stress during soldering and assembly processes.
The connector is constructed using polyamide housing material for longevity and robust performance, with phosphor bronze contacts plated in tin over nickel for excellent conductivity and corrosion resistance. Its horizontal orientation and surface mount design make integration straightforward and efficient for automated or manual PCB manufacturing.
Operating up to 500 mA and 50 V AC, the WR-FPC series connector suits demanding electronic environments and offers reliability across a wide temperature range from -40°C to 105°C. A single row configuration makes routing and layout easy, and the locking mechanism enhances connectivity stability.
Engineered for compact electronics, mobile devices, and industrial control panels. Ideal for flexible display interfaces, membrane switches, and keyboard cable terminations. Supports high-density wiring needs in consumer, medical, and laboratory devices.
Efficient surface mounting improves throughput in production lines. Polyamide and phosphor bronze ensure mechanical and electrical robustness.
This Wurth Elektronik connector meets practical requirements for modern PCB and FPC cable assembly, offering secure connections and versatile applications across industrial, laboratory, and commercial electronics. Explore the full range of FPC Connectors and related solutions from Wurth Elektronik and many other brands on EnvMart for all your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Wurth Elektronik WR-FPC connector is 0.5 mm, allowing for high-density connections in compact electronic applications.
This connector is rated for a maximum current of 500 mA.
It is rated for operation at up to 50V AC.
The housing is made of polyamide, and the contacts are made of phosphor bronze with tin over nickel plating.
The connector is designed in a horizontal orientation.
It operates effectively within a temperature range of -40°C to 105°C.
This model features 16 contacts.
It utilizes a ZIF (Zero Insertion Force) bottom contact termination type, allowing for easy cable insertion.
The WR-FPC connector is designed for surface mounting on PCBs.
The connector has a male gender, while the contacts are female.
It is suitable for applications in electronic assemblies, displays, keyboards, and other miniaturized devices requiring high-density connections.
The flip-lock actuator provides strong retention and ensures that once the cable is inserted, it remains securely locked, enhancing reliability during soldering and assembly.
