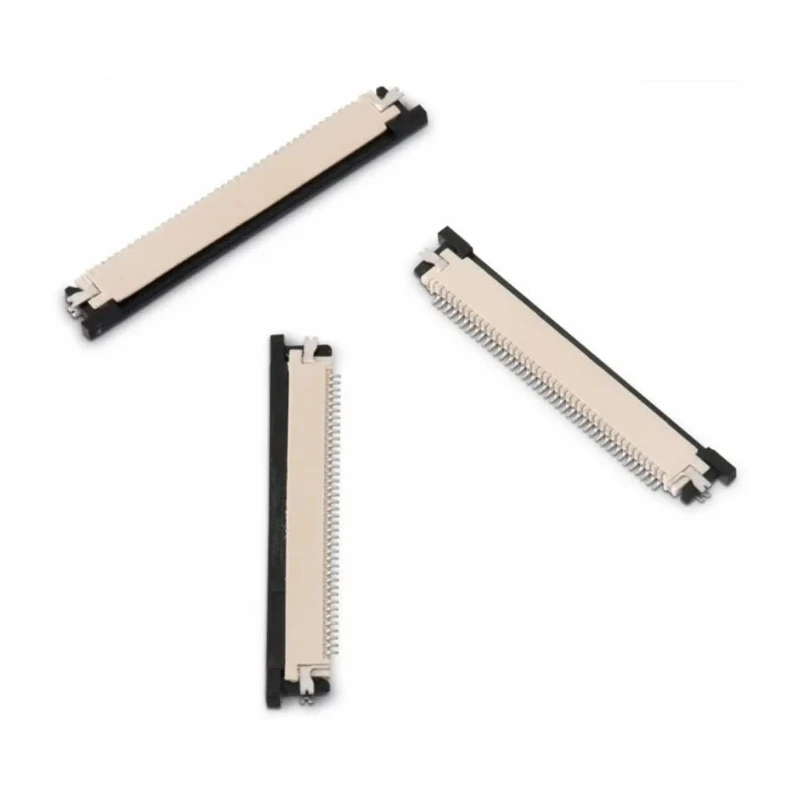

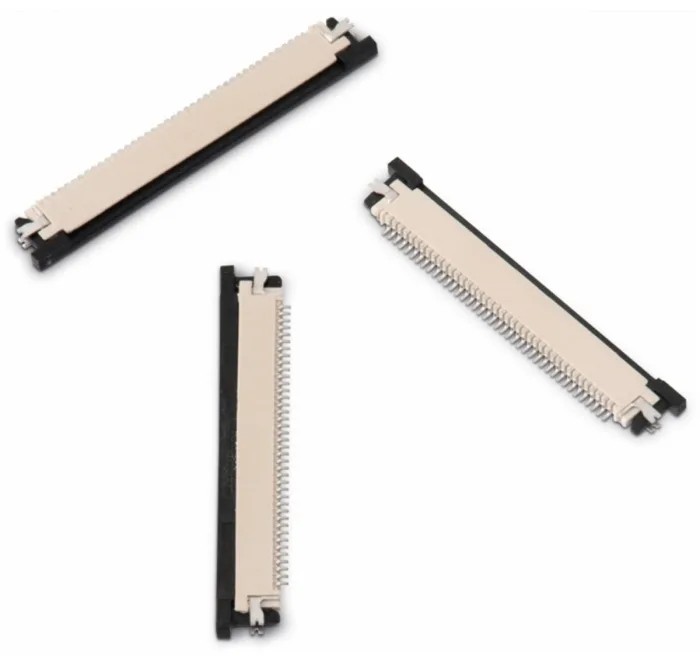

Wurth Elektronik WR-FPC 0.5 mm Pitch 24 Way Horizontal Male FPC Connector Top Contact 687124183622

Wurth Elektronik model 687124183622 is a 24 way horizontal male FPC connector featuring a fine 0.5 mm pitch and top contact termination. This low profile ZIF (Zero Insertion Force) connector has a height of just 1.2 mm and incorporates a flip lock actuator mechanism for easy insertion and strong retention of flexible printed circuits.

The connector contacts are made from phosphor bronze with tin over nickel plating, delivering reliable electrical performance and mechanical durability. Its housing is made from high-quality liquid crystal polymer that ensures dimensional stability and resistance to temperature variations.

Designed to handle currents up to 400mA and voltages up to 50 volts AC, this connector functions between -25°C and 85°C, making it suitable for various electronic applications.

Applications include miniaturized high-density electronics such as display modules, touch panels, personal computing devices, tablets, mobile phones, digital cameras, industrial equipment, medical devices, and business electronics.

Low profile design for space-saving in compact electronics. Flip lock actuator for convenient and secure FPC insertion. Solder tabs ensure firm electrical and mechanical PCB mounting. Phosphor bronze contacts with tin over nickel plating for durability.

Liquid crystal polymer housing provides stability and longevity. Current rating of 400mA and voltage rating of 50V AC. Reliable performance over wide temperature range (-25°C to 85°C). Horizontal orientation with locking mechanism for secure connection.

Ideal for use in consumer electronics, industrial, medical, and communication devices.
