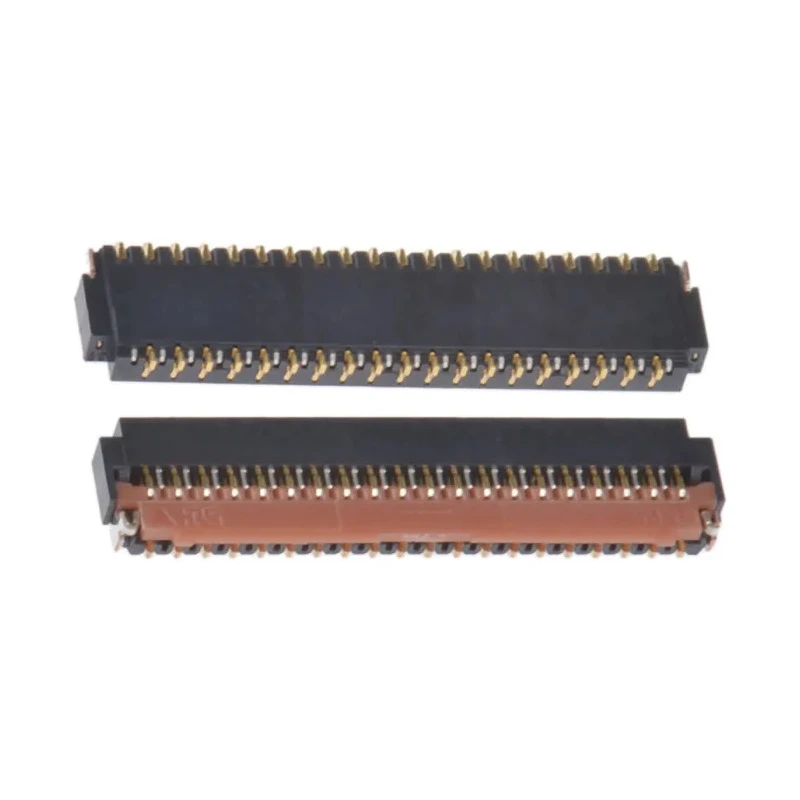

Hirose FH26 0.3 mm Pitch 71 Way Straight Female FPC Connector, Solder
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V ac |
| Brand | Hirose |
| Orientation | Straight |
| Current | 200mA |
| Model | FH26 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | FH26 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.3mm |
| Contact Plating | Gold |
| Number of Contacts | 71 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a low profile height of 1.00 mm for space-saving PCB design.
- Equipped with a rotating one-touch ZIF actuator for easy insertion and secure retention.
- Constructed with phosphor bronze contacts plated with gold to ensure strong conductivity.
- Supports a current rating of 200mA and voltage of 30V AC.
- Includes dual rows with 71 contacts in a straight, female orientation.
- Housing is made from durable polyamide material with halogen-free options available.
- Designed to operate between -55°C and 85°C for robust environmental performance.
- Metal fittings guide the FPC accurately without increasing connector footprint.
Product Description
Hirose FH26W-71S-0.3SHW(97) is a 71 way straight female FPC connector with a pitch of 0.3 mm, featuring solder termination. This connector is part of the FH26 series renowned for its compact and lightweight design, suitable for modern electronic applications requiring space-saving and high reliability.
The connector employs a zero insertion force (ZIF) mechanism with a rotating actuator that simplifies FPC insertion while providing a tactile click to confirm engagement. The metal fittings serve as precise guides for the FPC without increasing the connector's PCB footprint. Its low-profile height of only 1.00 mm and narrow width of 3.2 mm enable efficient use of PCB real estate.
Constructed using phosphor bronze contacts plated with gold, it ensures excellent electrical conductivity and longevity. The double-sided leads with a 0.6 mm pitch facilitate easy surface mounting on PCBs. The housing, made from polyamide, adheres to halogen-free standards for safer electronic device manufacturing.
Designed to operate safely within -55°C to 85°C temperature range and handle currents up to 200mA at 30V AC, it is reliable for various applications. The solid bottom design permits mounting over conductive PCB traces without performance compromises.
This connector is ideal for various industrial uses including miniaturized portable equipment, personal mobile devices, notebook PCs, mobile phones, PDAs, portable audio players, and DVD-R players.
Features a low profile 1.0 mm height for PCB space saving. Rotating one-touch actuator enables easy FPC insertion and secure retention. Tactile click confirms full closure of actuator. Metal fittings ensure accurate FPC alignment without increasing connector size.
Double-sided leads allow straightforward PCB mounting. Enclosed design allows mounting over conductive PCB traces. Halogen-free versions comply with IEC61249-2-21 standards. Supports currents up to 200mA and 30V AC voltage.
Operates between -55°C to 85°C for wide environmental tolerance. Perfect for miniaturized portable and mobile electronic devices. For exploring more FPC Connectors and related components, browse the Electronics & Electricals categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 200mA and a voltage of 30V AC.
The pitch of this connector is 0.3 mm.
This model features 71 contacts arranged in a straight orientation.
The contacts are made of phosphor bronze plated with gold, and the housing is constructed from polyamide material.
It is designed to operate safely between -55°C and 85°C.
This connector employs a solder termination type.
It features a rotating one-touch ZIF actuator that simplifies FPC insertion and provides a tactile click to confirm engagement.
It has a low profile height of 1.00 mm, making it suitable for space-saving PCB designs.
Yes, it is designed for surface mounting on PCBs.
It is ideal for miniaturized portable equipment, personal mobile devices, notebook PCs, mobile phones, PDAs, and portable audio players.
Halogen-free versions comply with IEC61249-2-21 standards.
The contacts are arranged in a straight orientation with two rows.
