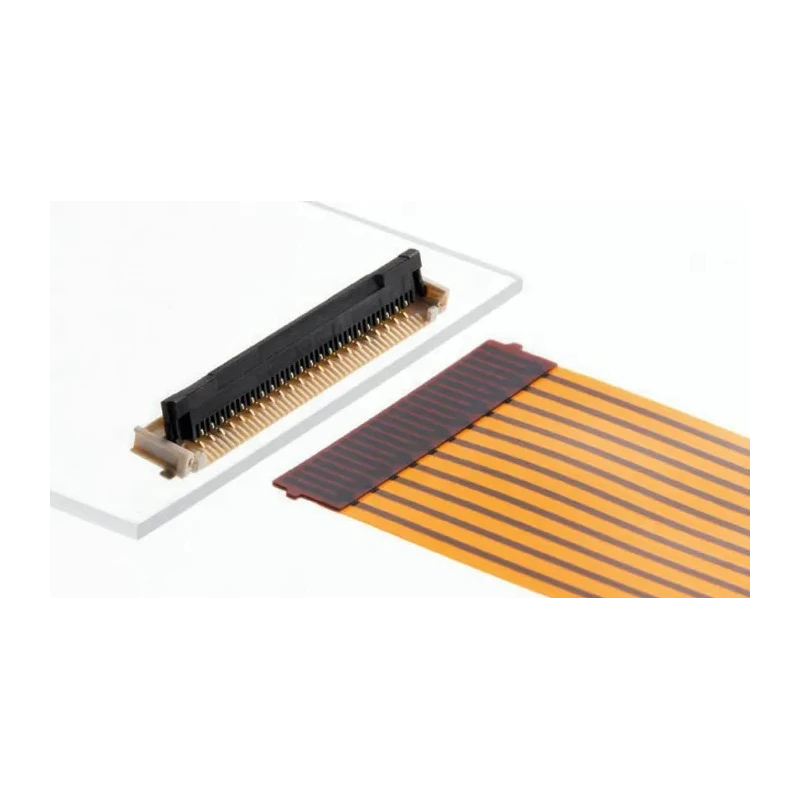

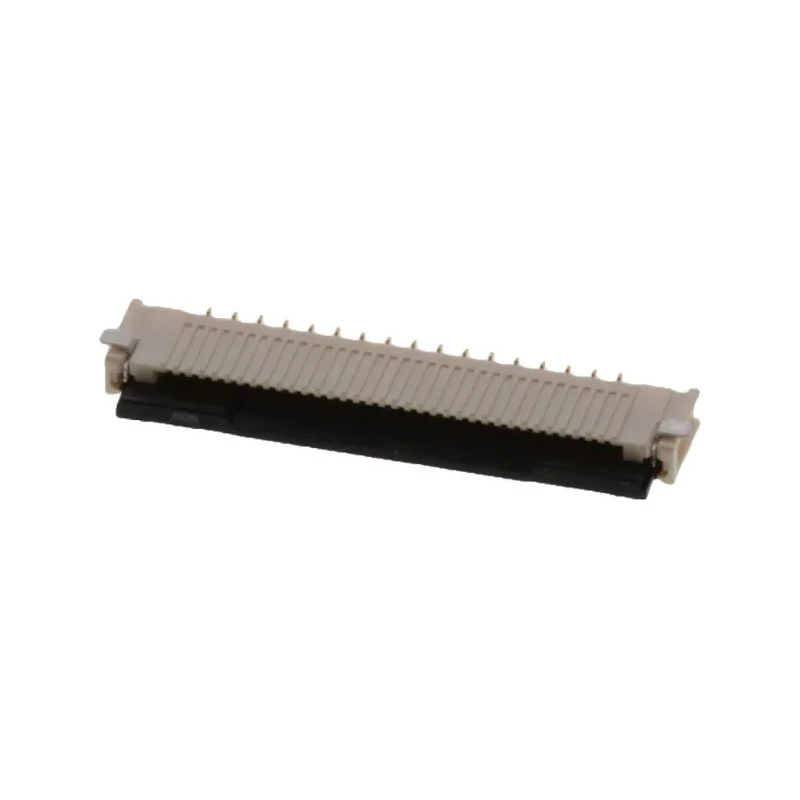

Molex 1 mm Pitch 17 Way Right Angle Male FPC Connector, Easy-On Series, Surface Mount, ZIF, Solder, 500mA, Gold 200528-0170
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | 200528 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 17 |
| Contact Gender | Male |
| Connector Gender | Male |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Provides 17 contacts for wire-to-board connections in compact electronic designs.
- Easy-On Series with ZIF (Zero Insertion Force) for effortless cable insertion and high mating reliability.
- Robust phosphor bronze contacts plated with gold over nickel for superior electrical performance.
- Liquid crystal polymer housing ensures durability and thermal stability up to 105°C.
- Cable ear-tab locking mechanism for secure cable alignment and retention.
- Wide operating temperature range from -40°C to 105°C for demanding environments.
- Right angle orientation enables tight packaging and efficient layout in PCB design.
- Solder termination for strong mechanical retention and reliable electrical connectivity.
Product Description
Molex 200528-0170 1 mm Pitch 17 Way Right Angle Male FPC Connector is engineered for high-precision wire-to-board connections in compact electronic devices. This connector supports a 1 mm pitch and provides 17 bottom-contact terminals, facilitating efficient signal transmission while maintaining exceptional electrical reliability.
The Easy-On Series features double-bottom contacts to remove dust and contaminants, ensuring high contact reliability and repeatable cycling. ZIF (Zero Insertion Force) mechanism allows for effortless cable insertion, minimizing cable stress and damage during assembly.
Phosphor bronze contacts with gold-over-nickel plating deliver low contact resistance and corrosion protection, ideal for signal integrity in critical circuits. The housing is crafted from liquid crystal polymer, offering excellent durability, flexibility, and resistance to high-temperature conditions.
Cable ear-tab locking with indents assists cable alignment, improves retention force, and simplifies actuation for robust installation. Surface mount termination and right-angle orientation optimize PCB layout and space utilization, enabling integration into small enclosures.
Capable of handling currents up to 500mA and voltages up to 50V AC/DC, suitable for a wide range of consumer and industrial applications. With one row and a minimum operating temperature of -40°C, the connector is designed to perform reliably under harsh environments.
This connector is ideal for use in printers, copiers, display audio systems, flat-screen televisions, and various consumer electronics. Its compact, low-profile design (mating height of just 1.90 mm) makes it particularly suitable for applications requiring high-density connections and stringent space requirements.
Molex's Easy-On 1.0mm FFC/FPC connectors combine technical innovation and reliable manufacturing, ensuring long-term performance and ease of assembly for industrial, laboratory, and commercial electronics manufacturers.
For more FPC Connectors and Molex products, explore the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle currents up to 500mA, making it suitable for various applications requiring reliable electrical connectivity.
The connector is rated for a maximum voltage of 50V AC/DC, ensuring compatibility with a range of electronic devices.
It features solder termination, which provides strong mechanical retention and reliable electrical connectivity in applications.
The contacts in this connector are spaced at a 1 mm pitch, allowing for compact and efficient wire-to-board connections.
The maximum operating temperature is 105°C, making it suitable for high-temperature applications.
The housing is made from liquid crystal polymer, while the contacts are made of phosphor bronze with gold over nickel plating for enhanced electrical performance.
This connector has a right angle orientation, which helps optimize PCB layout and space utilization in electronic designs.
It provides 17 contacts for wire-to-board connections, facilitating efficient signal transmission.
It utilizes a Zero Insertion Force (ZIF) mechanism, allowing for effortless cable insertion and minimizing stress during assembly.
The minimum operating temperature is -40°C, enabling reliable performance in harsh environmental conditions.
This connector is ideal for use in printers, copiers, display audio systems, flat-screen televisions, and various consumer electronics.
The connector features male contacts, which are designed for secure connections with compatible female counterparts.
