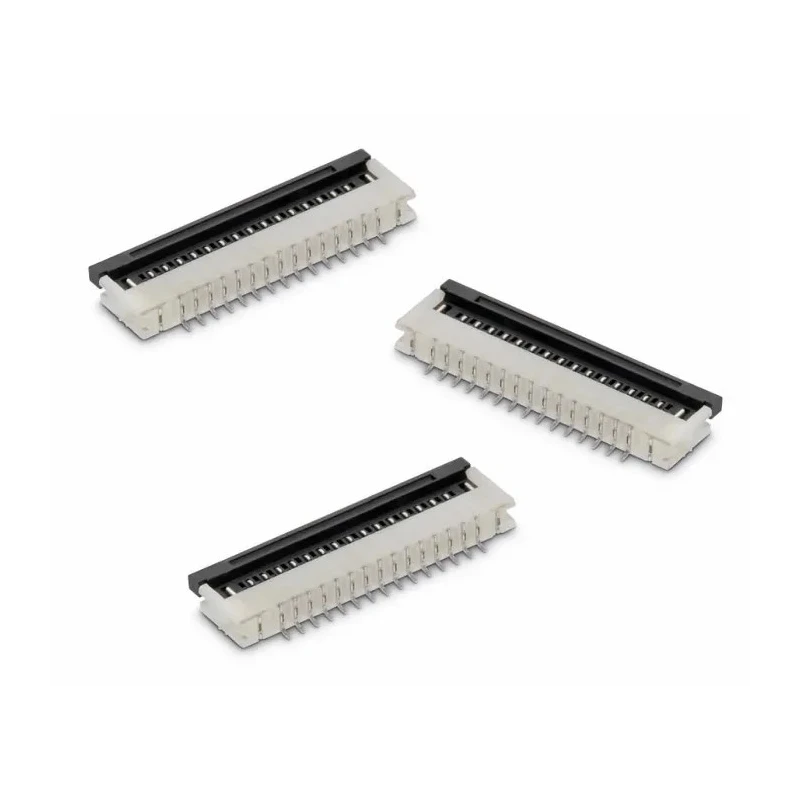

Wurth Elektronik WR-FPC 1 mm Pitch 24 Way Horizontal Female FPC Connector Solder 686124148922
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100, 100V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a compact 1 mm pitch, ideal for high-density electronic assemblies.
- Equipped with 24 phosphor bronze contacts for optimal conductivity and durability.
- Bottom contact configuration with flip-lock hinge actuator ensures secure wire-to-board connections.
- Supports ZIF insertion force and surface-mount solder retention for easy and efficient installation.
- Rated for 100V AC and 1A current, supporting reliable signal transmission in low-profile electronic systems.
- Polyamide housing with tin over nickel plating enhances corrosion resistance and mechanical strength.
- Operates across a wide temperature range from -40°C to 105°C, suited for industrial environments.
Product Description
Wurth Elektronik 686124148922 WR-FPC 1 mm Pitch 24 Way Horizontal Female FPC Connector, Solder sets the standard for precision and reliability in PCB-to-cable connections. This connector is engineered for space-saving and high-density requirements, making it ideal for modern electronics that demand compact design and robust performance.
Built on the WR-FPC series platform, the connector features a 1 mm pitch and 24 contacts made from phosphor bronze, ensuring dependable electrical contact and excellent mechanical stability. The female surface-mount connector utilizes a bottom contact configuration and flip-lock hinge actuator, allowing easy cable insertion without the need for a mating connector.
Compact footprint enables integration in miniaturized devices such as displays, keyboards, tablet modules, and instrumentation systems. Surface mount termination type supports efficient automated soldering, improving manufacturing productivity.
Zero Insertion Force (ZIF) technology decreases cable wear, making it ideal for frequent connection/disconnection cycles. Polyamide housing material provides long-term resilience, and tin over nickel contact plating delivers enhanced corrosion resistance.
Rated for 100V AC and 1A current, suitable for both signal and low-power applications. Locking mechanism with hinged actuator ensures stable and vibration-resistant cable retention.
Designed for demanding environments, this connector operates at temperatures from -40°C to 105°C, making it suitable for industrial, laboratory, commercial, and advanced manufacturing use cases. Typical applications include PCB assembly for embedded systems, medical instrumentation, and mobile electronics.
Industries served: Electronics Manufacturing, Laboratory Equipment, Industrial Automation, Consumer Devices, Precision Instrumentation, HVAC Controls. Browse Wurth Elektronik and FPC Connector categories on EnvMart for similar solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 1 mm, making it suitable for high-density electronic assemblies.
This model features 24 contacts, which are made from phosphor bronze for optimal conductivity.
It can operate at a maximum temperature of 105°C, suitable for demanding environments.
This connector uses a solder termination type, which supports efficient automated soldering processes.
It is rated for 100V AC and a current of 1A, supporting reliable signal transmission.
The housing is made of polyamide, and the contacts are plated with tin over nickel for enhanced corrosion resistance.
This model features Zero Insertion Force (ZIF) technology, which decreases cable wear during connection cycles.
The orientation of the Wurth Elektronik WR-FPC connector is horizontal, allowing for flexible installation options.
It is suitable for applications including PCB assembly for embedded systems, medical instrumentation, and mobile electronics.
The contact position is bottom, which is designed for secure wire-to-board connections.
The country of origin for this connector is China.
It features a flip-lock hinge actuator that ensures stable and vibration-resistant cable retention.
