Phoenix Contact UT 35-PE Series Earth Terminal Block 1-Level, Screw Termination, 1.5mm² to 35mm² Cable CSA, 125A 3044241

Free Delivery in India | Lowest Global Shipping Charges

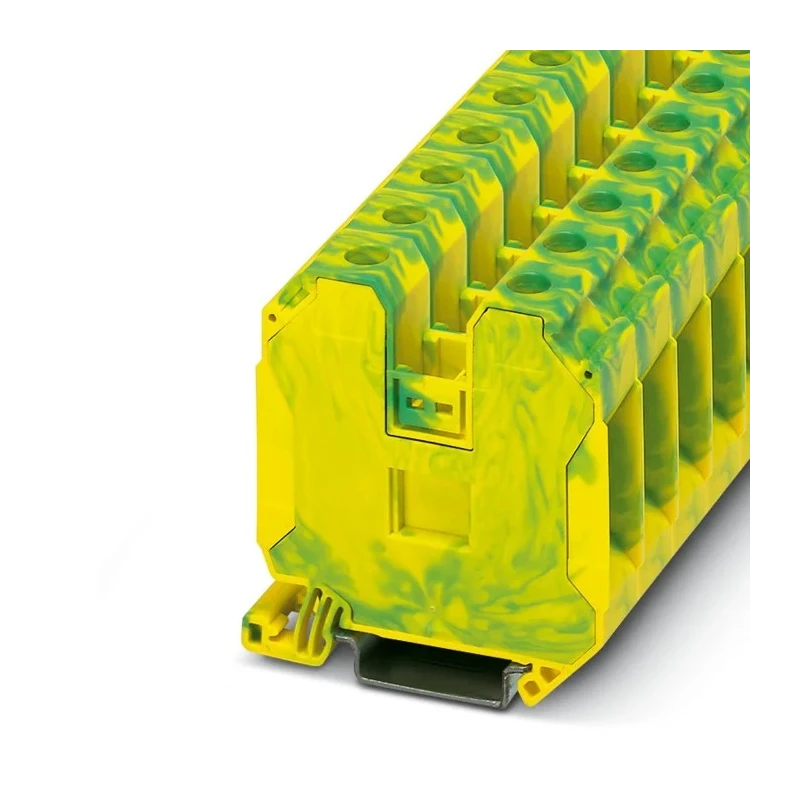

Phoenix Contact UT 35-PE Series Earth Terminal Block 1-Level, Screw Termination, 1.5mm² to 35mm² Cable CSA, 125A 3044241

Name: Phoenix Contact UT 35-PE Series Earth Terminal Block 1-Level, Screw Termination, 1.5mm² to 35mm² Cable CSA, 125A 3044241
Brand: PHOENIX CONTACT
SKU: 124497
Price: 15.99 USD
Availability: InStock



Category Earth Terminal Blocks Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Turkey
Voltage	8kV
Brand	Phoenix Contact
Colour	Green, Yellow
Model	3044241
Series	UT 35-PE
Termination Type	Screw
Maximum Operating Temperature	110°C
Number of Levels	1
Number of Positions	2
Sub Type	Single-Level
Minimum Operating Temperature	-60°C
Pitch	16mm
Hazardous Area Certification	ATEX
Standards/Approvals	CSA, cURus, IEC 60947-7-1
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	2AWG
Cable CSA	1.5, 35mm²
Terminal Block Current	125A

Key Features

Rated current capacity of 125 amps ensures suitability for high power applications.
Rated surge voltage of 8 kV provides enhanced electrical safety.
Single-level design with 2 positions optimizes space in electrical panels.
ATEX certification allows safe use in hazardous environments.
Operating temperature ranges from -60°C to 110°C for wide environmental adaptability.
Screw termination guarantees secure and stable wire connection.
Compliant with IEC 60947-7-1 standards assuring industrial reliability.
Flammability rating UL 94 V0 increases safety in fire-prone conditions.

Product Description

Phoenix Contact 3044241 UT 35-PE Series Earth Terminal Block is engineered for efficient and secure cable termination in industrial and hazardous area applications. Featuring screw termination and a single-level assembly, it supports cable cross-sections ranging from 1.5mm² to 35mm², suitable for wire sizes from 16 AWG to 2 AWG. The terminal block accommodates a current rating of 125A and can withstand surge voltages up to 8 kV, providing high electrical performance and safety.

This earth terminal block operates reliably within a broad temperature range from -60°C to 110°C, making it adaptable across various industrial conditions. Its ATEX certification allows use in potentially explosive atmospheres, enhancing its suitability for heavy-duty machine building, railway applications, and plant engineering sectors.

Compliant with IEC 60947-7-1 standards and featuring a UL 94 V0 flammability rating, this terminal block ensures strict adherence to industrial safety and reliability norms. The robust screw connection method guarantees secure wire attachment, supporting two connections per level for efficient panel design.

The green and yellow color scheme facilitates quick identification of earth connections, critical in complex electrical installations. Originating from Turkey, the product assures quality manufacturing standards.

Rated current capacity of 125 amps. Rated surge voltage: 8 kV. Single-level, 2-position configuration. Screw termination connection type. Operating temperature range: -60°C to 110°C. ATEX certified for hazardous environments.

Complies with IEC 60947-7-1 standards. UL 94 V0 flammability rating. Color coding green and yellow.

This earth terminal block is ideal for use in industrial electronics, electrical installations, railway systems, and plant engineering where safety, reliability, and space efficiency are paramount. Environmentally resistant, it is built to endure demanding electrical and mechanical stresses.
