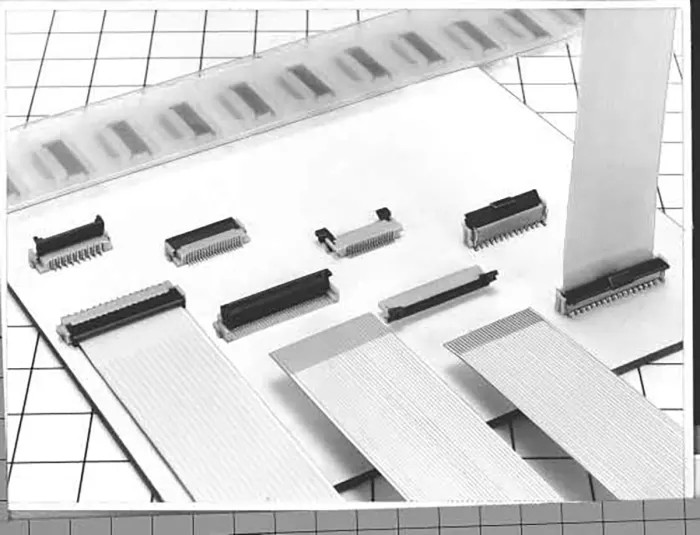

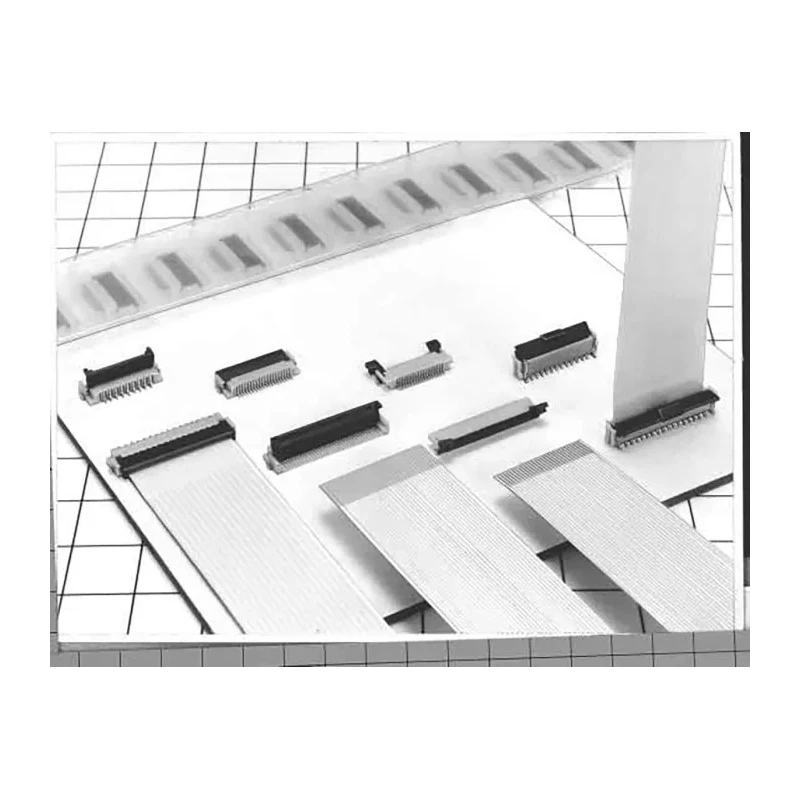

Hirose 0.5 mm Pitch 10 Way Straight Female FPC Connector, Solder FH12
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Hirose |
| Orientation | Straight |
| Current | 500mA |
| Model | FH12 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | FH12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Vertical |
Key Features
- Features a 0.5 mm pitch with 10 contact positions for precise connections.
- Constructed from phosphor bronze contacts with gold plating for durability and conductivity.
- Surface mount type with vertical contact position and straight orientation.
- Equipped with a rotating one-touch ZIF locking mechanism for easy assembly.
- Operates reliably between -40°C and 85°C temperature range.
- Housing made of polyamide providing robust insulation and mechanical strength.
- Designed for high-density mounting with vertical mount type.
- Japan origin ensuring high quality and manufacturing standards.
Product Description
Hirose FH12 model 10 Way Straight Female FPC Connector features a 0.5 mm pitch and solder termination ideally suited for high-density electronic component mounting. This connector incorporates a phosphor bronze contact material with gold plating, ensuring excellent electrical connectivity and corrosion resistance for demanding applications.
The surface mount type with vertical contact position and straight orientation supports compact PCB designs while maintaining reliable connections.
It includes a rotating one-touch ZIF (Zero Insertion Force) locking mechanism that simplifies assembly and enhances production efficiency by reducing insertion force and ensuring a secure lock.
The connector is rated for 500 mA current and 50V AC voltage, supporting low power electronic circuits within temperature ranges from -40°C to 85°C, making it suitable for industrial and commercial electronic equipment.
The polyamide housing material provides mechanical strength and electrical insulation required in harsh manufacturing environments.
Originating from Japan, this component adheres to high-quality manufacturing standards, making it a trusted choice for electronics assembly, automation, and manufacturing laboratories.
Features a 0.5 mm pitch with 10 contact positions for precise connections. Constructed from phosphor bronze contacts with gold plating for durability and conductivity. Surface mount type with vertical contact position and straight orientation.
Equipped with a rotating one-touch ZIF locking mechanism for easy assembly. Operates reliably between -40°C and 85°C temperature range. Voltage rating up to 50V AC suitable for low-power electronic applications. Housing made of polyamide providing robust insulation and mechanical strength.
Designed for high-density mounting with vertical mount type. Japan origin ensuring high quality and manufacturing standards. Ideal for industrial, electronics manufacturing, and assembly line use cases. Explore our comprehensive range of electronic connectors to find compatible components for your project at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose FH12 connector features a 0.5 mm pitch, allowing for precise connections in high-density electronic applications.
This model has 10 contact positions, designed for effective connectivity in compact PCB designs.
It is rated for 50V AC, suitable for low-power electronic circuits.
The connector supports a current rating of 500 mA, making it suitable for low-power applications.
The contacts are made from phosphor bronze with gold plating, while the housing is constructed from polyamide, providing mechanical strength and electrical insulation.
It operates reliably within a temperature range of -40°C to 85°C, suitable for various industrial and commercial applications.
This connector utilizes solder termination, which is ideal for secure connections on printed circuit boards.
The connector features a straight orientation with vertical contact positions, designed for high-density mounting.
It is equipped with a rotating one-touch ZIF (Zero Insertion Force) locking mechanism, which simplifies assembly and ensures a secure connection.
This connector is manufactured in Japan, adhering to high-quality manufacturing standards.
This model supports surface mounting, making it suitable for compact electronic designs.
It is designed for use in industrial, electronics manufacturing, and assembly line applications, particularly where high-density connections are required.
