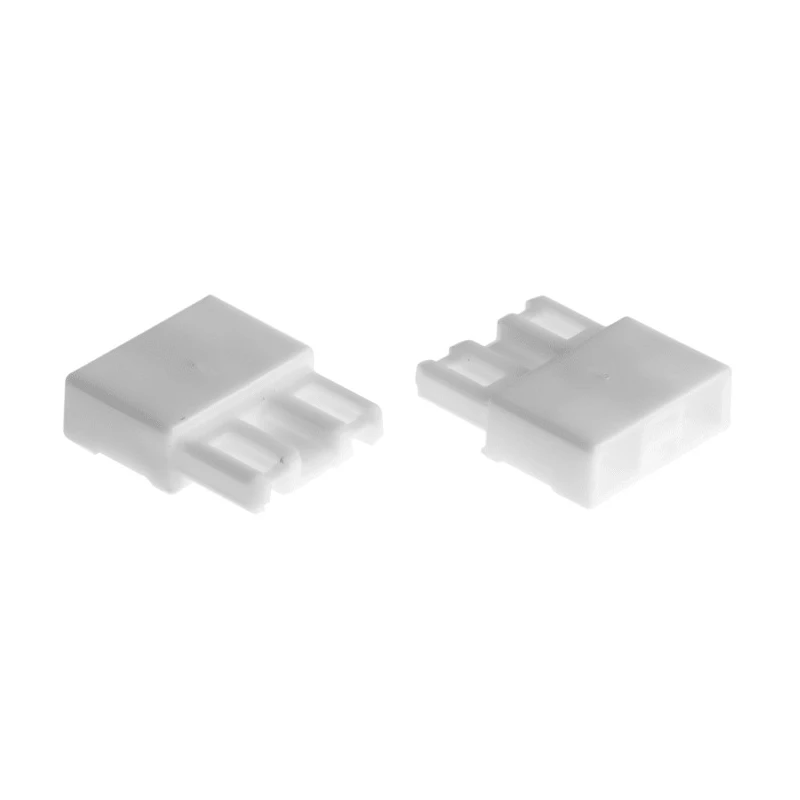

JST 2 Way 4 mm LED Connector Housing for LED Lighting Audio & Video Connector Accessory LEBRP-02V-S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Colour | White |
| Model | LEBRP-02V-S |
| Series | LEB |
| Accessory Type | 2 Way 4 mm LED Connector Housing |
| For Use With | LED Lighting Audio & Video Connector Accessory |
Key Features
- The low-profile design with a 4.0 mm pitch suits compact LED lighting setups.
- Features a polarising locking mechanism to ensure secure mating between wire housing and PCB headers.
- The fork type contacts provide high contact pressure and accommodate thermal expansion.
- Allows slight misalignment between PCBs, enhancing connector reliability.
- Contacts come crimped to 26 AWG blue UL1061 cable for easy installation.
- Connector housing is white in color and designed for use with LED lighting audio and video accessories.
Product Description
JST LEBRP-02V-S 2 Way 4 mm LED Connector Housing offers a reliable connection solution for LED lighting and audio/video electronic circuits. It supports both board-to-board and wire-to-board configurations with a 4.0 mm pitch and a compact PCB height of 2.7 mm.
The connector system features a polarising locking mechanism that prevents incorrect insertion and secures the housing firmly to the PCB header. The fork type contacts ensure strong, stable connections due to their high contact pressure and extended mating stroke, which compensates for thermal expansion and contraction in LED lighting applications.
This connector also tolerates slight horizontal misalignments in the pitch direction, improving installation ease and maintaining electrical integrity. The white housing complements LED lighting products aesthetically while providing durable electrical insulation.
The contacts are supplied pre-crimped with 26 AWG blue UL1061 cable, facilitating straightforward connection to wiring assemblies. Designed and manufactured in Japan, this connector housing adheres to JST’s commitment to quality and reliability in industrial and commercial electronic connector components.
The low-profile, 4.0 mm pitch satisfies compact LED lighting requirements. Polarised locking ensures secure, error-free mating. Fork contacts maintain electrical pressure and accommodate thermal changes. Allows minor PCB misalignment without connection loss.
Pre-crimped contacts simplify assembly. White color housing designed for LED lighting applications.
This product is ideal for industrial LED lighting assemblies, audio/video connector setups, and other electronics manufacturing that require robust, reliable connector accessories. It supports efficient electrical connections in compact and thermally sensitive environments.
Explore more Connector Housing products by JST and other leading manufacturers in the Electronics & Electricals category at EnvMart.
Explore more products in our Connector Accessory category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 4.0 mm, designed to suit compact LED lighting setups.
This model has a compact PCB height of 2.7 mm, making it suitable for low-profile applications.
It features a polarising locking mechanism that prevents incorrect insertion and ensures secure mating with PCB headers.
The connector uses fork type contacts that provide high contact pressure and accommodate thermal expansion.
The contacts come pre-crimped to 26 AWG blue UL1061 cable for easy installation into wiring assemblies.
The connector housing is white in color, designed to complement LED lighting products aesthetically.
It is suitable for industrial LED lighting assemblies, audio/video connector setups, and other electronics manufacturing requiring reliable connections.
This connector housing is manufactured in Japan, adhering to JST's quality standards.
Yes, it allows for slight horizontal misalignments in the pitch direction, enhancing installation ease and maintaining electrical integrity.
This model belongs to the LEB series of connector housings.
It is classified as a 2 Way 4 mm LED Connector Housing, specifically designed for LED lighting and audio/video applications.
It is primarily used for providing reliable electrical connections in compact and thermally sensitive environments, particularly for LED lighting setups.
