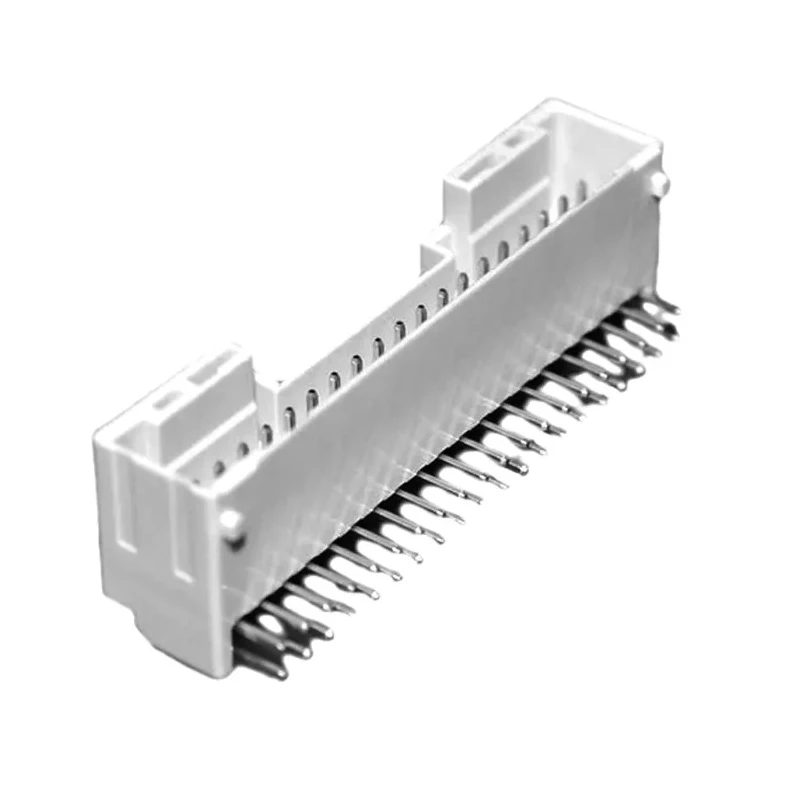

JST 2.0mm Pitch PUD Series Right Angle Through Hole Shrouded PCB Header Connector 40 Contacts 2 Row S40B-PUDSS-1(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST 2.0mm Pitch PUD Series Right Angle Through Hole Shrouded PCB Header Connector 40 Contacts 2 Row S40B-PUDSS-1(LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S40B-PUDSS-1(LF)(SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PUD
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a compact, high density double row layout for stable contacts.
Includes a locking mechanism to ensure secure mating with audible click confirmation.
Constructed with copper alloy contacts plated with tin for durability and conductivity.
Rated for 3A current and 250V voltage with operation from -25°C to 85°C.
Designed for through hole mounting with a right angle orientation and shrouded housing.
Supports wire-to-board connector system with male contact gender and solder terminations.
Manufactured in Japan to ensure quality and reliability.

Product Description

JST S40B-PUDSS-1(LF)(SN) is a high-quality right angle through hole PCB header designed for wire-to-board connectivity applications requiring a 2.0 mm pitch and 40 contacts arranged in two rows. This shrouded header ensures secure connections and enhanced durability suitable for industrial, electronic manufacturing, and construction equipment for signal and power transmission.

The PUD Series PCB headers provide low insertion force connections with a compact design tailored for high vibration environments. The locking mechanism emits an audible click confirming proper mating of the header and socket, enhancing assembly reliability.

Contacts are made of copper alloy and plated with tin to resist corrosion and ensure stable conductivity. Rated for a maximum current of 3 amps and voltage rating of 250 volts, this header operates reliably within temperatures from -25°C to 85°C, making it suitable for various industrial and commercial electronic equipment.

The connector is intended for through hole mounting with a right angle orientation, facilitating board layouts where vertical space is limited. It is male contact gender and uses solder termination type, compatible with standard PCB manufacturing processes.

Made in Japan, this PCB header conforms to demanding quality standards. The shrouded construction protects contacts from damage and misalignment during assembly and use. Compact 2.0 mm pitch for high density PCB assemblies.

Right angle through hole mount optimizes PCB layout flexibility. Shrouded design provides mechanical protection to contacts. Supports up to 3A current at 250V operating voltage. Works reliably in ambient temperatures from -25°C to 85°C.

Durable tin-plated copper alloy contacts. Locking mechanism gives audible mating confirmation.

This JST PUD Series right angle PCB header connector is ideal for electronics component manufacturing, PCB assembly lines, automation control, and testing equipment requiring dependable wire-to-board connections. Browse our extensive selection of PCB Headers and electronic connectors at EnvMart for compatible products and more options.
