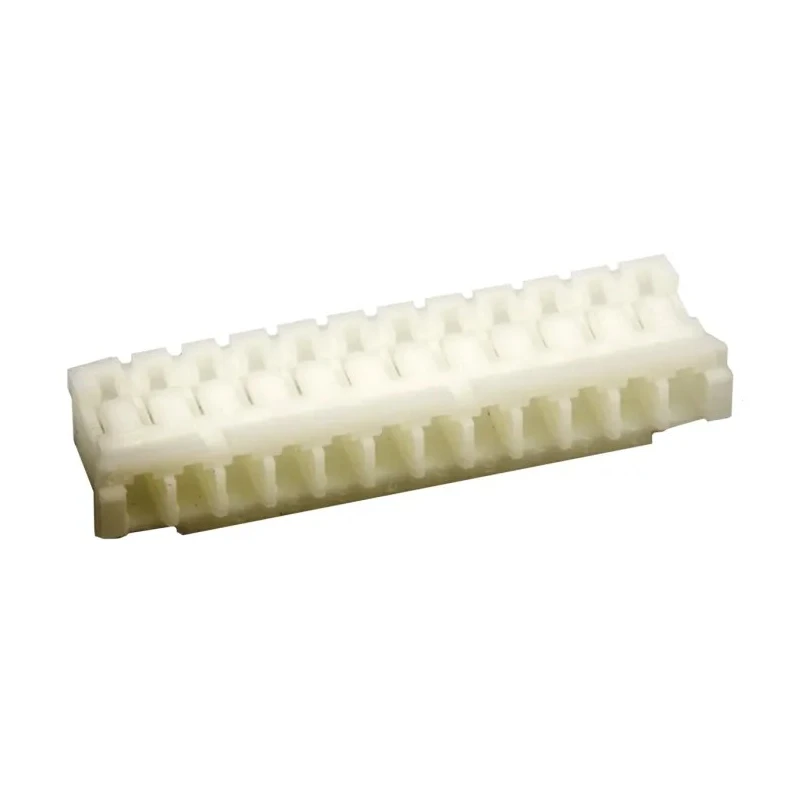

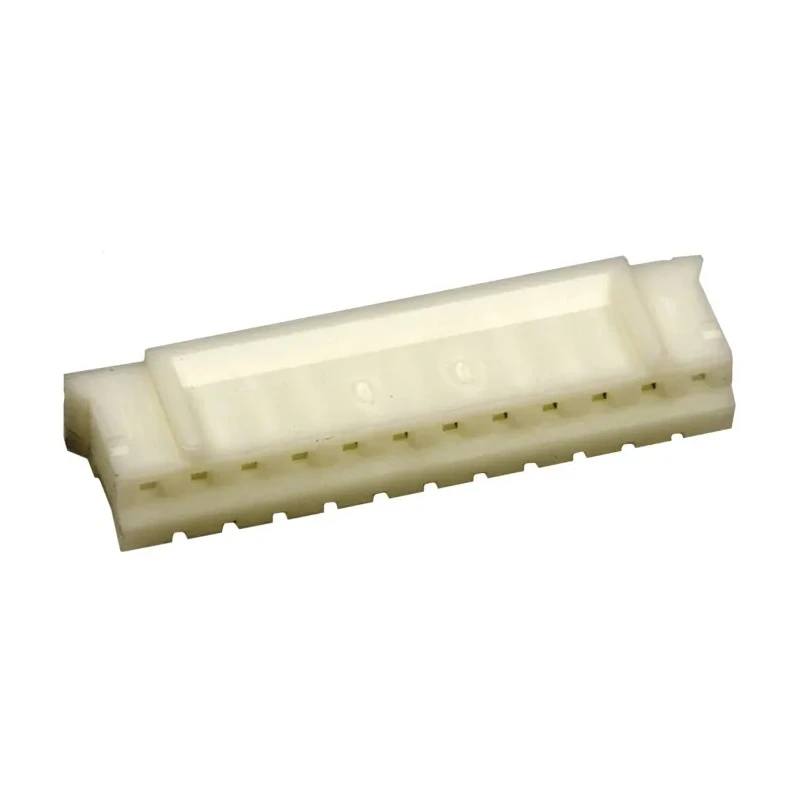

JST 2 mm Pitch 12 Way 1 Row Straight Female Connector Housing PHR-12

The JST PHR-12 female connector housing features a 2 mm pitch and 12 contact positions arranged in a single row with a straight orientation, delivering a compact and robust wire-to-board connection solution. Manufactured from polyamide, this connector housing offers excellent mechanical strength and durability for demanding electronic assembly applications.

Specifically designed for use with the PH series disconnectable crimp style connectors, it ensures a highly reliable connection suitable for a wide range of electronic and power connector systems. The natural white coloring and UL 94V-0 flammability rating enhance the safety and visual identification of the connector.

This connector housing has precise dimensions of 22 mm length and 4.5 mm width to fit high-density configurations, supporting up to 16 circuits in the PH series range, with this model accommodating 12 ways. Its fully covered header construction guarantees secure mating to prevent incorrect connections, improving assembly reliability.

Ideal for industrial, electronic manufacturing, communications, and automation equipment applications, this connector housing ensures efficient cable management while maintaining signal integrity. It is suitable for use in power distribution and control systems where compact and reliable connectors are essential.

12 contact positions with 2.0 mm pitch for precise circuit connections. Single row straight orientation designed for PCB insertion. Polyamide housing material provides durability and strength. Compatible with PH series disconnectable crimp style connectors.

Natural white color with UL 94V-0 rated flame retardancy. Length of 22 mm and width of 4.5 mm for compact fitment. Fully covered header to ensure correct and secure mating. Widely used in electronic components and power connector assemblies.
