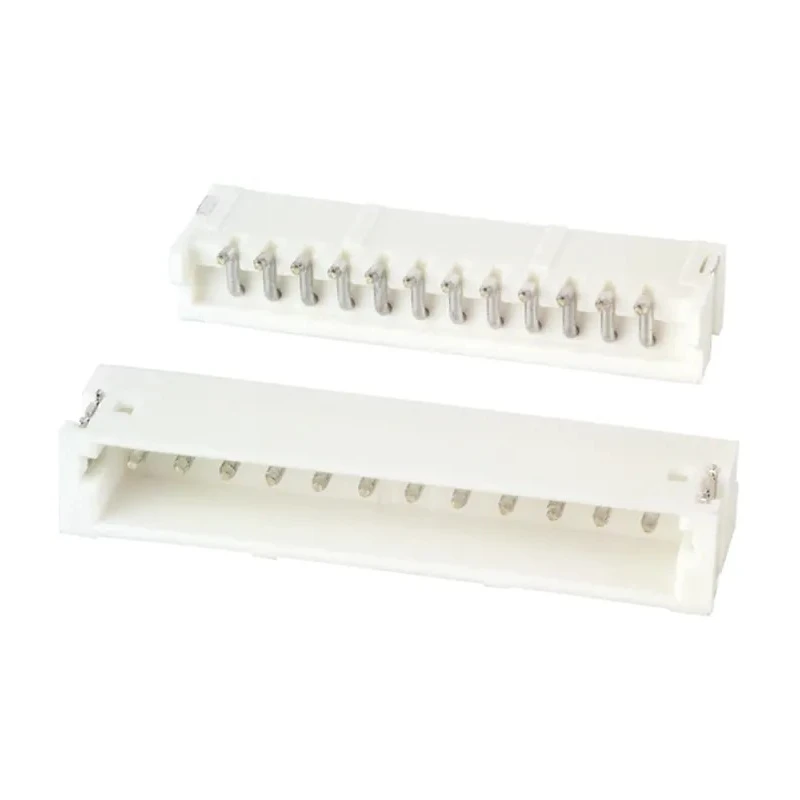

JST 1.5 mm Pitch 12 Contact Right Angle Through Hole Shrouded PCB Header S12B-ZR (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST 1.5 mm Pitch 12 Contact Right Angle Through Hole Shrouded PCB Header S12B-ZR (LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Korea
Voltage	50V
Brand	JST
Orientation	Right Angle
Current	1A
Model	S12B-ZR (LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	ZH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	2.4mm

Key Features

Features 12 male contacts suitable for wire-to-board connection.
Constructed with polyamide housing for robust insulation.
Right angle, side entry design saves PCB space.
Contact pins plated with tin over brass for reliable conductivity.
Operates in temperatures from -25°C to 85°C.
Mount type is through hole for secure board attachment.
Rated for 50 volts and 1 ampere current capacity.
Provides shrouded connector for enhanced protection and alignment.

Product Description

JST S12B-ZR (LF)(SN) is a precision 1.5 mm pitch PCB header designed for right angle, through hole mounting applications. Featuring 12 male contacts in a single row with a shrouded connector housing manufactured from durable polyamide, this header supports wire-to-board connections with secure solder termination.

The right angle orientation and side entry design enable space-saving PCB layouts with board thickness compatibility from 0.6 to 1.2 mm. Contacts made of brass with tin plating provide excellent conductivity and corrosion resistance.

Operating in a wide temperature range from -25°C up to 85°C, this JST ZH series header is rated for 50 V and 1 A, making it ideal for electronic components in industrial, manufacturing, and commercial circuit board assemblies.

Features 12 male contacts suitable for wire-to-board connection. Constructed with polyamide housing for robust insulation. Right angle, side entry design saves PCB space. Contact pins plated with tin over brass for reliable conductivity.

Operates in temperatures from -25°C to 85°C. Mount type is through hole for secure board attachment. Rated for 50 volts and 1 ampere current capacity. Provides shrouded connector for enhanced protection and alignment. Mating pin length of 2.4 mm ensures secure engagement.

Suitable for use in electronic, industrial, and commercial PCB assemblies.

The product originates from Republic of Korea, ensuring high manufacturing standards in connector technology. It is a new condition item and ideal for use in electronics manufacturing, industrial control systems, instrumentation, and power distribution units.

Explore JST connectors and similar PCB Headers on EnvMart for reliable and space-efficient board interconnect solutions.
