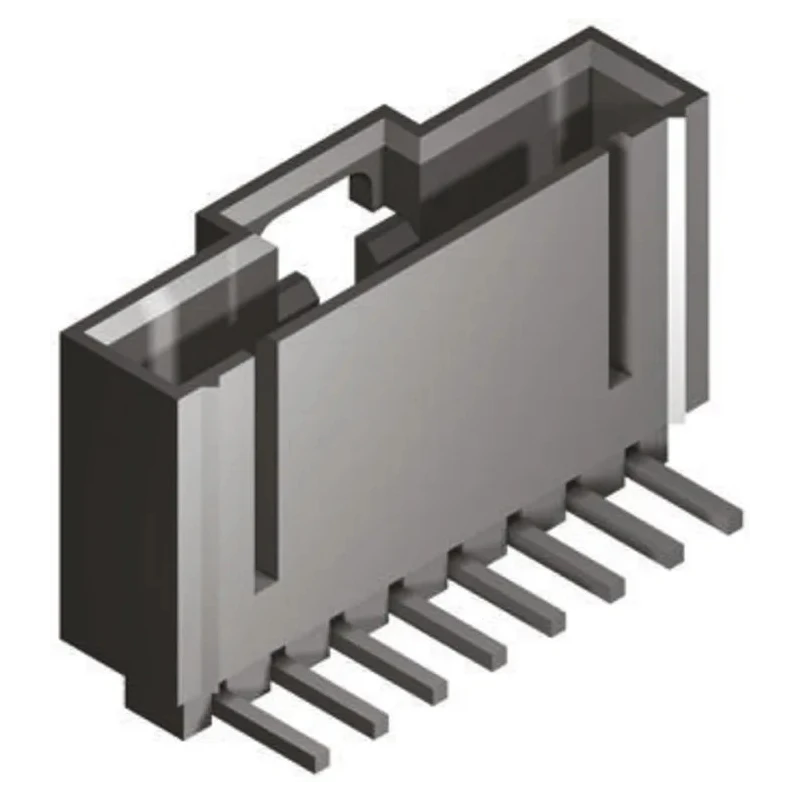

Molex SL Series Right Angle Through Hole PCB Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70553-0039

Free Delivery in India | Lowest Global Shipping Charges

Molex SL Series Right Angle Through Hole PCB Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70553-0039

Name: Molex SL Series Right Angle Through Hole PCB Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70553-0039
Brand: Molex
SKU: 206274
Price: 1.98 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	High Temperature Thermoplastic
Contact Material	Phosphor Bronze
Series	SL
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.3mm

Key Features

Features a shrouded design to protect contacts from damage.
Constructed with high temperature thermoplastic housing for durability.
Contacts are made of phosphor bronze with tin plating for reliable connectivity.
Rated for 3A current and 250V voltage operation.
Tail pin length is 3.3 mm, designed for solder termination.
Operates reliably within -40°C to 105°C temperature range.
Mount type is through hole for secure board attachment.
Compatible with Molex 70066G and 70066N series housings.

Product Description

Molex 70553-0039 SL Series Right Angle Through Hole PCB Header is expertly engineered for mounting on printed circuit boards to facilitate reliable electrical connections. It features a single row of 5 male contacts with a standard 2.54 mm pitch, making it compatible with a wide range of PCB designs.

The high temperature thermoplastic housing is shrouded to protect the contacts and ensure secure connection interfaces. The contacts are crafted from phosphor bronze and plated with tin, providing excellent conductivity and resistance to corrosion.

With a tail pin length of 3.3 mm and through hole mount style, the connector is designed for robust solder termination and mechanical stability. It operates at a voltage rating of 250V and current rating of 3A, suitable for industrial, electronics manufacturing, and control system applications.

Its operational temperature range spans from -40°C to 105°C, supporting use in diverse environmental conditions. This PCB header mates with Molex 70066G and 70066N series housings, commonly used in wire-to-board connections.

Features a shrouded design to protect contacts from damage. Constructed with high temperature thermoplastic housing for durability. Contacts made from phosphor bronze with tin plating for reliable connectivity. Rated for 3A current and 250V voltage operation.

Tail pin length of 3.3 mm designed for solder termination. Operating temperature range from -40°C to 105°C. Through hole mounting for secure PCB attachment. Compatible with Molex 70066G and 70066N series housings. Ideal for PCB assembly, electronics manufacturing, and industrial automation.

This connector is widely used in electronics design, industrial equipment, manufacturing automation, and electrical interface applications. It ensures both electrical performance and mechanical durability necessary for high-quality PCB assemblies.

Explore more from Molex and related PCB Headers in the Electronics & Electricals category on EnvMart for comprehensive connection solutions.
