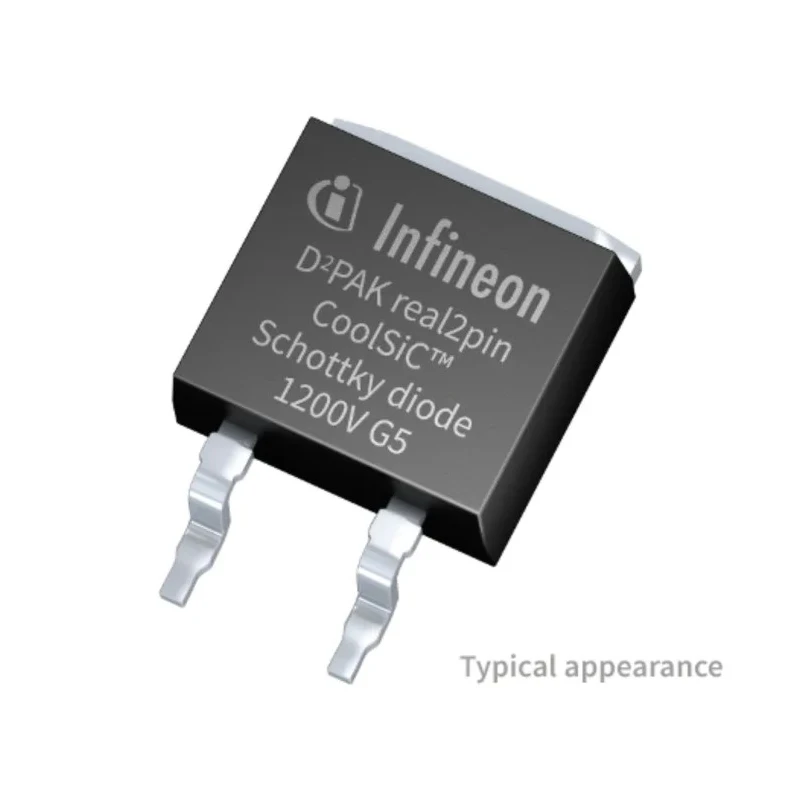

Infineon 1200 V 20 A SiC Diode Schottky 2-Pin TO-263 Package IDK20G120C5XTMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon 1200 V 20 A SiC Diode Schottky 2-Pin TO-263 Package IDK20G120C5XTMA1

Name: Infineon 1200 V 20 A SiC Diode Schottky 2-Pin TO-263 Package IDK20G120C5XTMA1
Brand: Infineon
SKU: 178522
Price: 6.57 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	IDK20G120C5XTMA1
Mount Type	SMD
Series	IDK20G120C5
Maximum Operating Temperature	175°C
Package Type	TO-263
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	20A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	123μA
Peak Non-Repetitive Forward Surge Current Ifsm	198A
Maximum Forward Voltage Vf	1.8V

Key Features

Features low forward voltage of 1.8 V to reduce conduction losses.
Supports a continuous forward current of 20 A for sustained loads.
Rated to withstand peak reverse repetitive voltage of 1200 V.
Handles peak non-repetitive surge current of 198 A for transient events.
Operates reliably across a wide temperature range from -55°C to 175°C.
Utilizes a single Schottky rectifier diode configuration for efficient switching.
Compliant with RoHS environmental standards.
Packaged in a compact TO-263 surface-mount package for effective thermal management.

Product Description

Infineon IDK20G120C5XTMA1 is a 1200 V 20 A Silicon Carbide (SiC) Schottky diode engineered for robust power conversion and switching applications. It offers a low forward voltage drop of 1.8 V, which helps reduce conduction losses and improve system efficiency. The diode maintains continuous forward currents of up to 20 A, making it suitable for demanding industrial power supplies.

This diode features a peak reverse repetitive voltage rating of 1200 V, allowing it to block high voltages safely. It can tolerate peak surge currents of 198 A during transient overload conditions, providing resilience against electrical spikes. The low leakage current of 123 μA helps minimize power loss during operation.

Designed specifically for surface mounting, the diode is enclosed in a TO-263 package which facilitates efficient heat dissipation, important for high-power applications. Its two-pin configuration supports easy integration in compact power assemblies.

Its operating temperature range is extensive, from -55°C to 175°C, making it reliable in harsh industrial and automotive environments. The device's single Schottky rectifier configuration enables fast switching suitable for inverter front-end circuits, braking circuits, and motor drive rectification.

Compliant with RoHS standards, this diode meets environmental directives for hazardous substance restrictions. Common applications include high-voltage power supply rectification, DC-DC converters in industrial modules, and compact surface-mounted power assemblies.

Low forward voltage reduces conduction losses. High continuous forward current rating supports heavy loads. High voltage blocking capability with 1200 V rating. Robust surge current tolerance for transient conditions. Wide operating temperature range ensures reliability.

Compact TO-263 surface-mount package. Single Schottky diode configuration for fast switching. RoHS compliant for environmental safety. Two-pin electrical connection for easy mounting. Explore more Infineon semiconductor products and related electronics components on EnvMart for your industrial, commercial, and manufacturing needs.
