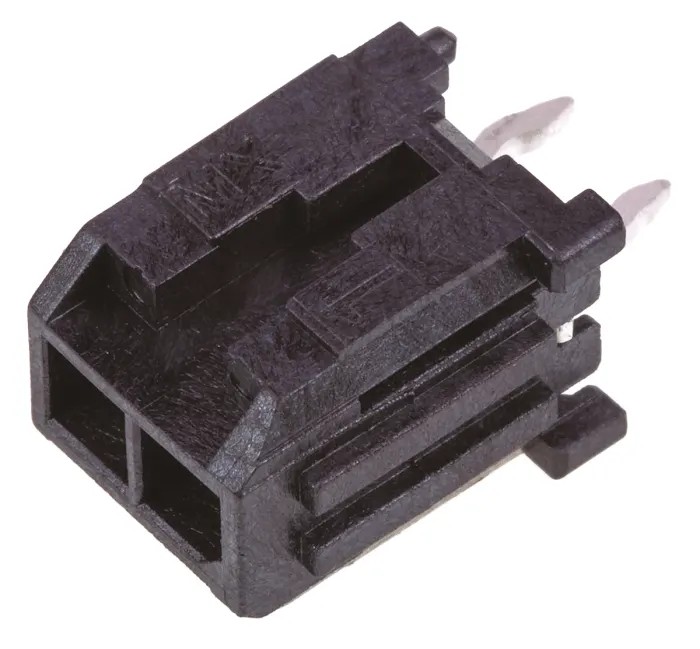

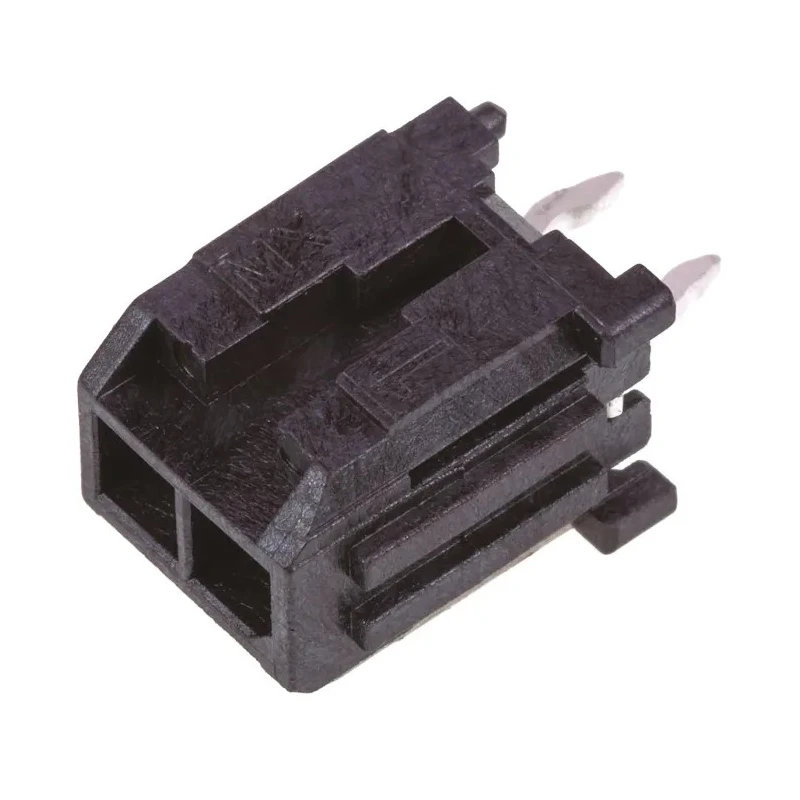

Molex PCB Header Micro-Fit 3.0 Series 2 Contact 3 mm Pitch 2 Row Shrouded 43045-0213

Free Delivery in India | Lowest Global Shipping Charges

Molex PCB Header Micro-Fit 3.0 Series 2 Contact 3 mm Pitch 2 Row Shrouded 43045-0213

Name: Molex PCB Header Micro-Fit 3.0 Series 2 Contact 3 mm Pitch 2 Row Shrouded 43045-0213
Brand: Molex
SKU: 206190
Price: 1.03 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	5A
Mount Type	Through Hole
Housing Material	High Temperature Thermoplastic
Contact Material	Brass
Series	Micro-Fit 3.0
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Gold
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

Supports up to 5A current capacity in a compact dual-row configuration.
Constructed with high temperature thermoplastic housing for IR reflow soldering up to 265°C.
Features a through-hole mount type compatible with SMT processes to reduce manufacturing costs.
Includes positive latching for secure mating and prevention of accidental disconnections.
Equipped with PCB polarising pegs and kinked solder legs for improved position and retention.
Contacts are male brass plated with gold for reliable electrical performance and corrosion resistance.
Operates in temperature range from -40°C to 125°C suitable for diverse applications.
Mating pin length measures 3 mm with a pitch of 3 mm between contacts.

Product Description

Molex 43045-0213 PCB Header from the Micro-Fit 3.0 Series is a 3 mm pitch, 2-contact, dual-row, shrouded male header designed for wire-to-board connections. It supports a maximum current of 5 Amps and a voltage rating of 250V, making it suitable for a variety of low to mid-range power applications.

The housing is manufactured from high temperature thermoplastic UL 94V-0 liquid crystal polymer capable of withstanding temperatures up to 265°C during IR reflow soldering. The through-hole mount type is SMT compatible, reducing process requirements and costs. The connectors provide positive latching which ensures secure mating and helps prevent accidental disconnections.

Additional features include PCB polarising pegs for precise alignment and kinked solder legs for enhanced PCB retention. The male brass contacts feature gold plating, providing excellent conductivity and corrosion resistance, fully isolated within the housing to minimize arcing.

This Micro-Fit 3.0 header is suitable for applications including military COTS, solar power systems, household appliances such as dryers and refrigerators, data communications like routers and servers, medical devices, telecommunications, and gaming terminals.

Supports up to 5A current in a miniaturized dual-row header. High-temperature resistant housing for reliable soldering processes. Through-hole mounting with SMT compatibility for flexible assembly. Positive secure latching mechanism for connection integrity.

PCB polarising pegs and kinked solder legs for improved mechanical stability. Gold-plated brass male contacts ensure electrical reliability. Wide operating temperature range from -40°C to 125°C. Explore more PCB Headers and Molex connector solutions at EnvMart to meet industrial and commercial electronics assembly needs.
