Molex SL Series Right Angle Through Hole PCB Header, 12 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70553-0011

Free Delivery in India | Lowest Global Shipping Charges

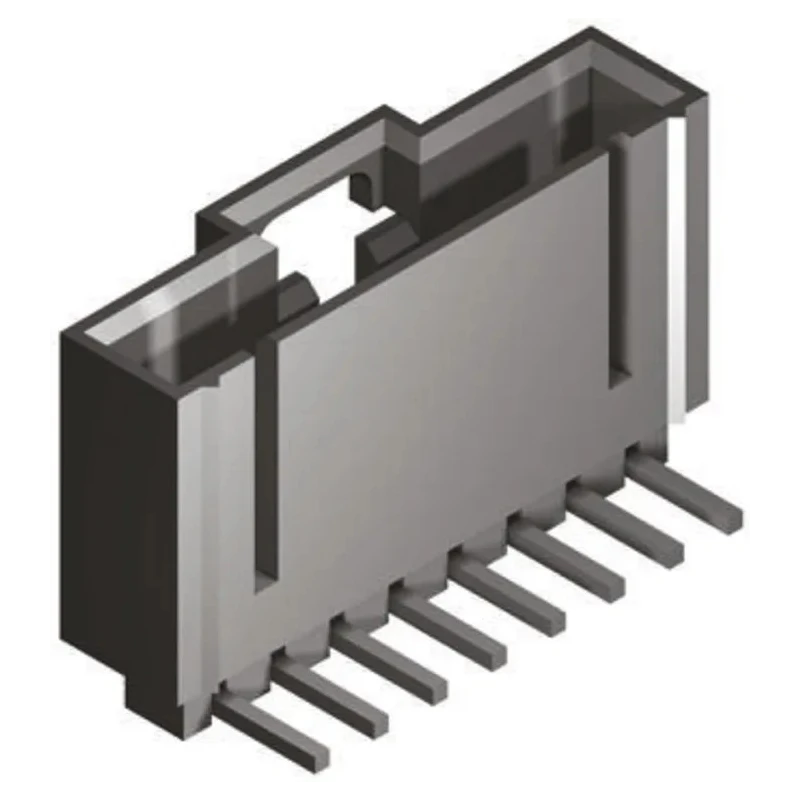

Molex SL Series Right Angle Through Hole PCB Header, 12 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70553-0011

Name: Molex SL Series Right Angle Through Hole PCB Header, 12 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70553-0011
Brand: Molex
SKU: 206277
Price: 8.31 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	United States
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	High Temperature Thermoplastic
Contact Material	Phosphor Bronze
Series	SL
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.3mm

Key Features

Constructed with high temperature thermoplastic housing for durability.
Phosphor bronze contacts with gold plating ensure excellent conductivity and corrosion resistance.
Rated for 3A current and 250V voltage for robust electrical performance.
Shrouded connector body provides added protection and alignment.
Tail pin length of 3.3 mm facilitates secure solder termination.
Operating temperature range from -40°C to 105°C suits varied environments.
Right angle mounting type supports PCB surface space optimization.
Complies with standard 2.54 mm pitch for broad compatibility.

Product Description

Molex 70553-0011 is a SL Series Right Angle Through Hole PCB Header designed with 12 male contacts in a single row, spaced at 2.54 mm pitch for precision and compatibility.

The connector features a high temperature thermoplastic housing, ensuring durability and resistance to heat during PCB assembly and operation. The contacts are made of phosphor bronze with a gold plating depth of 0.38 μm, enhancing electrical conductivity and reducing contact resistance over prolonged use.

Rated for 3A current and 250V voltage, this PCB header is suitable for various electronic and electrical applications requiring reliable wire-to-board connections. The shrouded body protects the contacts and ensures proper alignment during mating with compatible connectors.

The tail pins have a length of 3.3 mm to facilitate secure soldering on through hole PCBs, ensuring mechanical stability and electrical integrity. Its operating temperature range of -40°C to 105°C makes it versatile for use in industrial, commercial, and laboratory equipment.

This product mates with 70066G and 70066N series housings and follows the Molex C-Grid/SL series standards. Manufactured in the United States, it conforms to Molex's quality and reliability benchmarks.

High temperature thermoplastic housing for long-term durability. Gold-plated phosphor bronze contacts for optimal conductivity. 3A current and 250V voltage ratings suitable for diverse applications. Shrouded connector design for protection and alignment.

Suitable for right angle mounting on PCB for space-saving layouts. Wide operating temperature range from -40°C to 105°C. Complies with 2.54 mm pitch standard. Mates with 70066G and 70066N series housings. Manufactured to high-quality standards in the United States.

This Molex PCB header is ideal for use in electronics manufacturing, industrial controls, telecommunications, automation equipment, and other sectors requiring dependable PCB connectivity solutions. For more PCB Headers and related connectors, browse the Molex brand collection on EnvMart.
