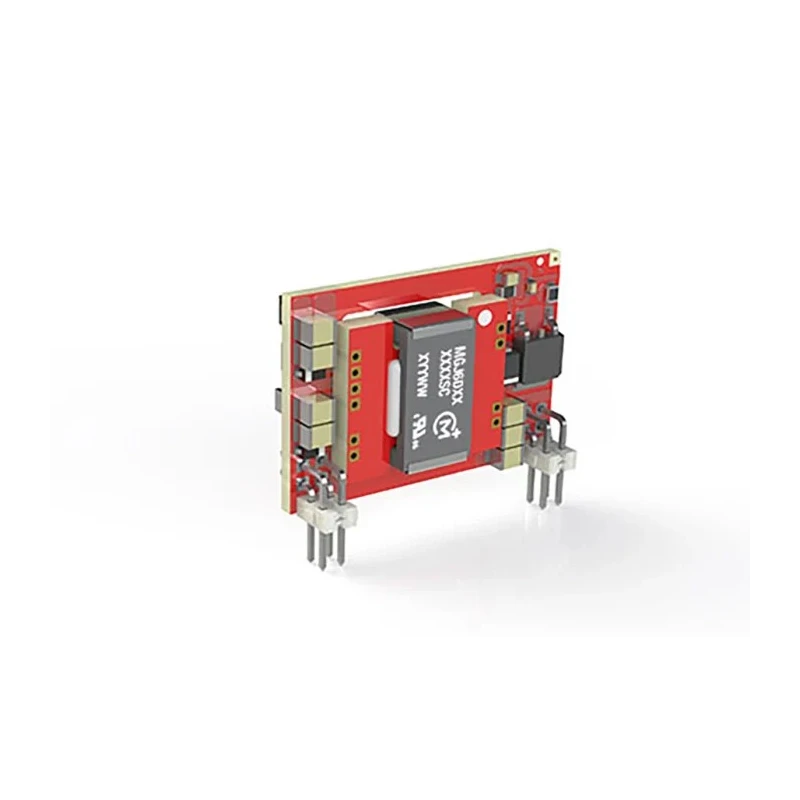

Murata Power Solutions DC/DC Converter 15V DC, 300mA, 36V DC Input, 18V Min Input, 4.5W Output Power, PCB Mount, SIP MGJ6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ6 DC/DC Converter, 15V d |
| Brand | Murata Power Solutions |
| Efficiency | 82% |
| Length | 38.89mm |
| Model | MGJ6 |
| Depth | 10.9mm |
| Gross Weight | 12g |
| Width | 28.12mm |
| Mount Type | PCB |
| Series | MGJ6 |
| Maximum Operating Temperature | 105°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 4.5W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | UL, RoHS, EN, ANSI |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 300mA |
| Isolation Voltage | 5.7kV dc |
| Output Voltage 2 | -5V dc |
Key Features
- Provides 15V DC output with 300mA current suitable for demanding electronic systems.
- Accepts input voltages ranging from 18V to 36V DC for flexible integration.
- Delivers maximum output power of 4.5W ensuring robust performance.
- Features SIP package and PCB mount type for compact installation.
- Supports high isolation voltage of 5.7kV DC to enhance system safety.
- Operates reliably across a wide temperature range from -40°C to 105°C.
- Complies with UL, RoHS, EN, ANSI standards for recognized quality.
- Optimized for gate drive circuits in IGBT and MOSFET motor drive and inverter applications.
Product Description
Murata Power Solutions MGJ6D241505SC DC/DC Converter is engineered to provide exceptional reliability and flexibility for industrial and electronic power supply applications. This model is designed to deliver a stable 15V DC output at 300mA current, accepting a broad input voltage range from 18V to 36V DC, making it suitable for varied supply conditions.
With a maximum output power of 4.5W and a high isolation voltage of 5.7kV DC, the MGJ6D241505SC offers robust protection and performance for critical systems. Its surface mount SIP package ensures ease of installation and integration into PCB layouts, especially in compact system designs.
The device is ideal for gate drive circuits powering IGBTs and MOSFETs in bridge circuits, motor drives, and inverters. Its ultra-low coupling capacitance and continuous barrier withstand voltage capability further enhance its suitability for demanding requirements in industrial and laboratory environments.
Operating safely between -40°C and 105°C, the converter meets key standards including UL, RoHS, EN, and ANSI, reinforcing its value for manufacturing, automation, and laboratory setups.
This converter demonstrates high energy efficiency (82%) and includes ripple and noise management (150mV peak-to-peak), maintaining signal integrity and protecting sensitive equipment.
Common industrial applications include use in motor drives, inverter controls, laboratory equipment, and any electronics requiring reliable PCB-mounted DC/DC conversion with stringent isolation requirements.
Delivers stable 15V DC output at 300mA for precision electronic systems. Wide input range from 18V to 36V DC adapts to diverse supply scenarios. PCB mount SIP package for compact, easy integration. High isolation voltage (5.7kV DC) suitable for motor drives and inverter circuits.
Compliant with UL, RoHS, EN, and ANSI for industry-standard quality. Designed for both high side and low side gate drive circuits in IGBT/MOSFET systems. Efficient performance supporting up to 4.5W output power. Reliable operation from -40°C to 105°C in industrial and laboratory environments.
Explore more advanced DC converter options by browsing the DC Converter category and other Murata Power Solutions products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 15V DC with a maximum output current of 300mA.
It accepts input voltages ranging from 18V to 36V DC, allowing for flexible integration into various systems.
The maximum output power of this unit is 4.5W, ensuring robust performance for demanding applications.
It features a high isolation voltage of 5.7kV DC, enhancing system safety for critical applications.
The dimensions are 38.89mm in length, 28.12mm in width, and 10.9mm in depth.
This converter operates reliably across a wide temperature range from -40°C to 105°C.
It uses a PCB mount type, designed for compact installation in electronic systems.
It complies with UL, RoHS, EN, and ANSI standards, ensuring recognized quality and safety.
The ripple and noise is specified at 150mV peak-to-peak, which helps maintain signal integrity.
This model is optimized for gate drive circuits in IGBT and MOSFET motor drive and inverter applications.
It has an efficiency rating of 82%, contributing to its effective performance in power conversion.
This converter has two outputs, providing versatility for different circuit requirements.
