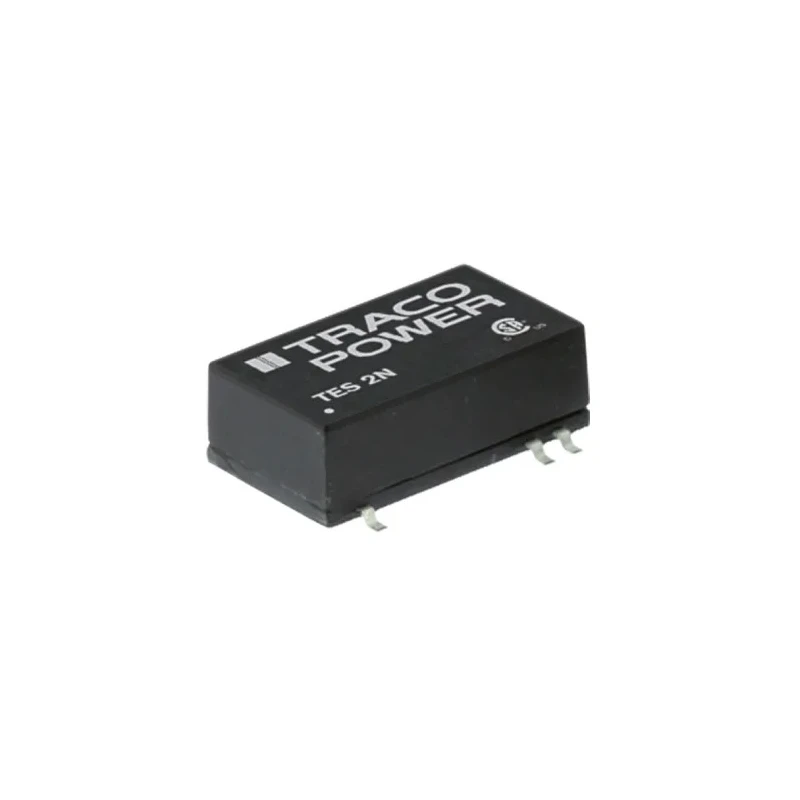

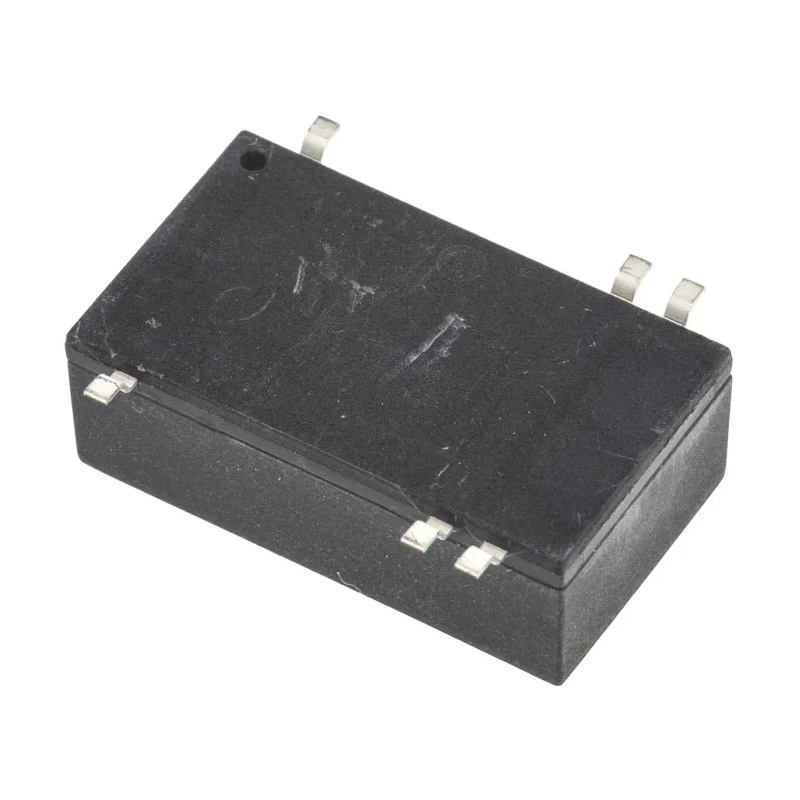

TRACOPOWER TES 2N DC-DC Converter 12V DC 165mA Output 9-18V Input 2W Surface Mount 85°C Max Temp TES 2N-1212
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TES 2N DC/DC Converter, 12V dc/ 165 mA |
| Brand | TRACOPOWER |
| Efficiency | 80% |
| Length | 24mm |
| Model | TES 2N-1212 |
| Depth | 8mm |
| Mount Type | Surface |
| Series | TES 2N |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 165mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Wide 2 | 1 input range |
Key Features
- Offers regulated isolated DC-DC conversion with 1500Vdc input/output isolation.
- Compact surface mount design with dimensions 24mm length and 8mm depth.
- Operating temperature range from -40°C to +85°C for harsh environments.
- High reliability with MTBF of 1,000,000 hours and 80% efficiency.
- Indefinite short circuit protection ensuring robust operation.
- Designed to meet EN55022 Class A input filter standard for EMI compliance.
- Ideal for use in electronic components, power supplies, industrial, and HVAC equipment.
Product Description
TRACOPOWER TES 2N-1212 is a high-quality DC-DC converter providing 12V DC output at 165mA with input voltages ranging from 9V to 18V DC. This 2W surface mount device offers regulated and isolated power conversion with 1.5kV DC isolation voltage, ensuring safety and noise immunity in industrial applications.
The compact low-profile package measures 24mm in length and 8mm in depth, making it suitable for space-constrained circuit designs. It operates reliably within a wide temperature range from -40°C up to +85°C, perfect for use in demanding environments such as industrial control systems, telecommunications, and HVAC systems.
With a mean time between failures (MTBF) of one million hours and 80% efficiency, the TES 2N-1212 offers robust performance and long service life. The built-in input filter complies with EN55022 Class A, reducing electromagnetic interference and improving system stability.
This device includes indefinite short circuit protection, enhancing system safety. Its wide input range supports applications where voltage fluctuations are common, providing stable output voltage and current.
Regulated isolated DC-DC converter with 1500Vdc isolation. Wide input voltage range (9V to 18V) with 2:1 ratio. Compact surface mount package; length 24mm, depth 8mm. Operating temperature from -40°C to +85°C for industrial environments.
High reliability with 1,000,000h MTBF and 80% efficiency. EN55022 Class A compliant input filter for EMI reduction. Durable indefinite short circuit protection included. Suitable for industrial, laboratory, electronics, and HVAC use.
This TRACOPOWER DC-DC Converter series is ideal for powering sensitive electronics requiring isolated and stable voltage in commercial and industrial systems. EnvMart offers a comprehensive range of TRACOPOWER converters and power modules to support your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TES 2N-1212 provides a regulated output voltage of 12V DC with a maximum output current of 165mA.
It accepts input voltages ranging from 9V to 18V DC, providing a 2:1 input ratio.
The maximum operating temperature for the TES 2N-1212 is 85°C.
This model features an isolation voltage of 1.5kV DC, ensuring safety and noise immunity.
The TES 2N-1212 has a compact design with a length of 24mm and a depth of 8mm.
The efficiency of the TES 2N-1212 is rated at 80%.
The MTBF for the TES 2N-1212 is 1,000,000 hours, indicating high reliability.
Yes, the TES 2N-1212 includes indefinite short circuit protection for enhanced safety.
The input filter of the TES 2N-1212 complies with the EN55022 Class A standard for EMI reduction.
This model is suitable for use in industrial control systems, telecommunications, and HVAC systems.
The minimum operating temperature for the TES 2N-1212 is -40°C, making it suitable for harsh environments.
The TES 2N-1212 is designed for surface mount installation.
