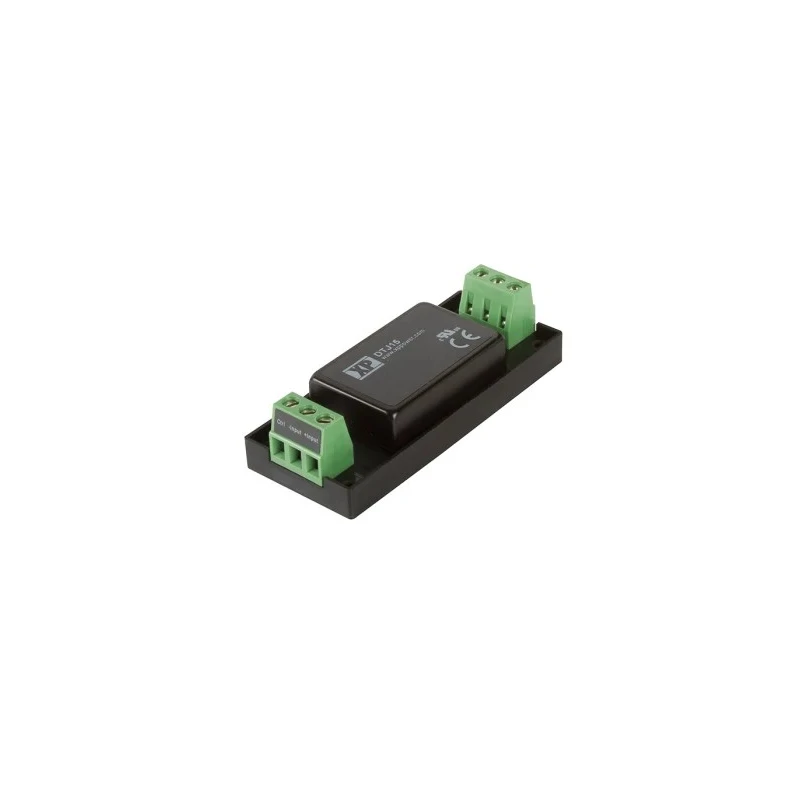

XP Power Chassis Mount DC/DC Converter, 5V DC Output, 3A, 75V DC Max Input, 18V Min Input, 15W, Encapsulated, 100°C DTJ15

XP Power DTJ15 DC/DC Converter is a high-quality chassis mount power supply designed for integration into diverse industrial, commercial, and electronic equipment applications. This encapsulated converter provides a regulated 5V DC output at 3A with a maximum output power of 15W.

It operates over a wide input voltage range of 18V to 75V DC, supporting a 4:1 input ratio nominal for 12V, 24V, and 48V systems. The robust copper case enhances durability and heat dissipation.

The DTJ15 includes critical features such as short circuit protection, input reverse polarity protection, and soft start functionality, ensuring operational safety and longevity. Its 3kV DC isolation enhances electrical safety between input and output circuits.

With an efficiency of approximately 84%, this converter minimizes power loss, making it energy-efficient and cost-effective. The device can operate reliably within temperatures spanning from -40°C to 100°C, providing versatility in various environments.

Compact in size with dimensions 76.2mm in length, 31.4mm width, and 19.4mm depth, it fits well in space-constrained applications. The 6-pin configuration and encapsulated package type facilitate easy mounting and integration. The converter has a mean time between failures (MTBF) exceeding 4 million hours, assuring dependable performance and long system uptime.

Chassis mount design with encapsulated package for secure installation. Wide input voltage range from 18V minimum to 75V maximum DC input. High efficiency operation at 84% for energy saving and reliability. Operating temperature range from -40°C to 100°C suitable for harsh environments.

Provides 3kV DC isolation for enhanced electrical safety. Single regulated output with low ripple and noise of 60mV peak to peak. MTBF greater than 4 million hours ensuring long service life. Compact size with 76.2mm length, 31.4mm width, and 19.4mm depth for space-saving applications.

Includes protection features such as short circuit and input reverse polarity protection. Manufactured in Taiwan, Province Of China to high industrial quality standards.

This DC/DC converter is ideal for applications including industrial control systems, communications equipment, medical devices, and other electronic equipment requiring stable and reliable DC power conversion. Its robust design and versatile input/output specifications make it suitable for demanding environments involving temperature extremes and electrical noise.

Choose XP Power DTJ15 for dependable, efficient power conversion with excellent safety and performance characteristics in commercial and industrial settings. Browse the full EnvMart catalog for related power supplies and DC/DC Converters designed to meet your electrical and industrial power needs.
