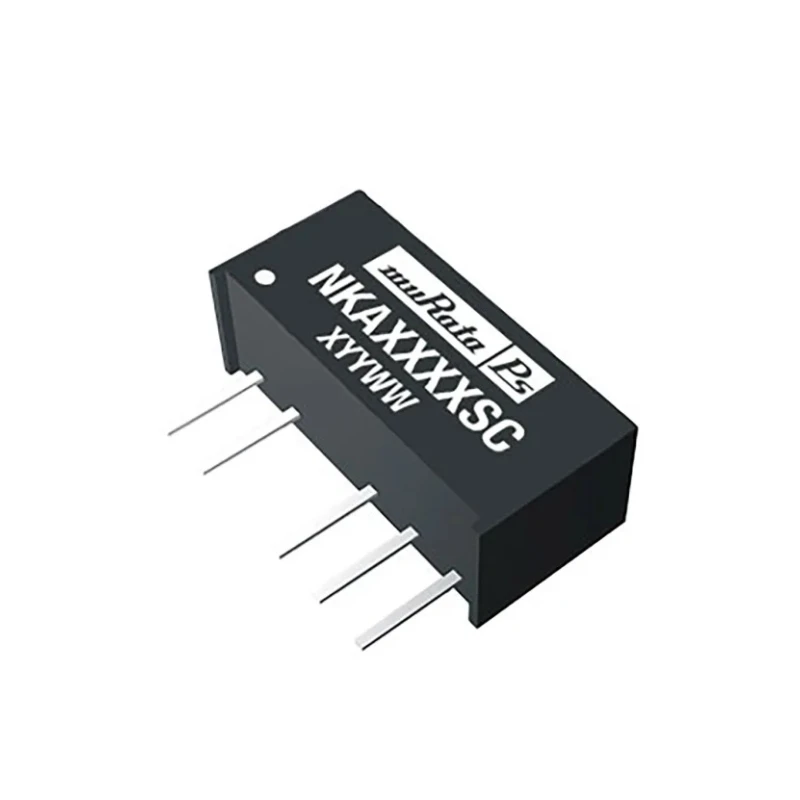

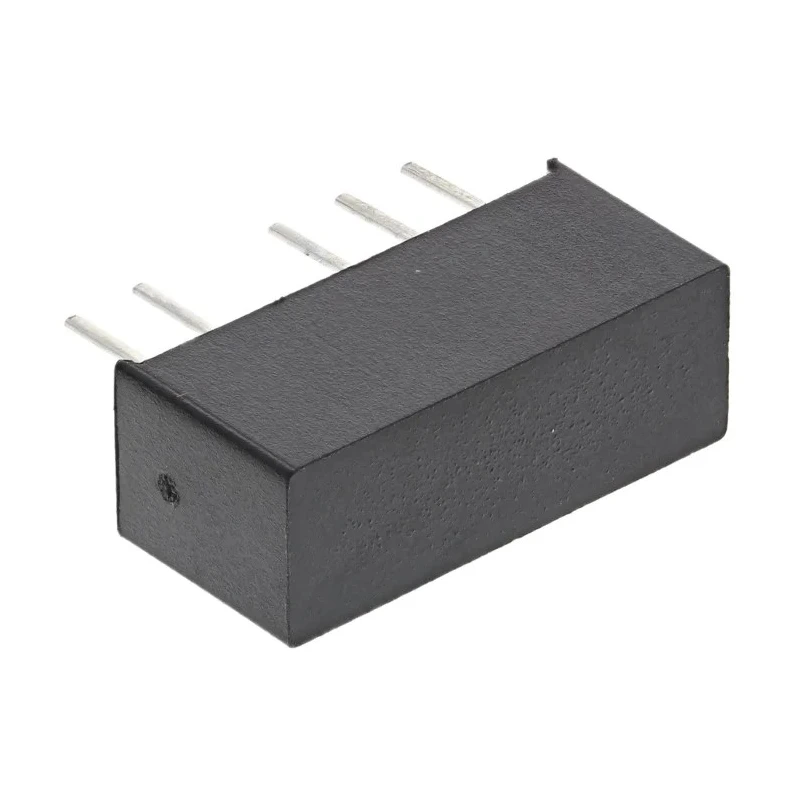

Murata Power Solutions DC/DC Converter Dual Output 5V DC 100mA 5.5V Input 4.5V Input 3W Through Hole NKA0505SC

Murata Power Solutions NKA0505SC DC/DC Converter is a dual output isolated power converter delivering 5V DC output at 100mA with an input voltage range from 4.5V to 5.5V DC. This 3W module utilizes a through-hole mount SIP package and is constructed from UL 94V-0 flame retardant material, ensuring durability and safety in industrial applications.

The converter supports two isolated outputs with an isolation voltage of 3kV DC, suitable for systems requiring noise reduction and safety isolation. With a ripple and noise specification of 75mV peak-to-peak, it maintains a stable and clean output for sensitive electronic circuits.

Featuring a compact form factor of 16.5mm (length) by 5.4mm (width) by 7.55mm (depth) and weighing only 1.4 grams, this converter easily integrates into space-constrained designs. The operating temperature is rated from -40 °C up to 85 °C, providing robust performance in varied environments. The mean time between failures (MTBF) is 1,697,000 hours, demonstrating long-term reliability for industrial and telecommunications equipment.

The product’s efficiency is about 70%, balancing power consumption and heat dissipation. Its package and encapsulated design offer protection and meet RoHS standards.

Common applications for the NKA0505SC include industrial controls, instrumentation, communication equipment, and other electronic systems requiring reliable isolated DC power outputs. The 6-pin SIP module ensures straightforward PCB mounting and testing.

This DC/DC converter delivers dual isolated outputs ideal for power supply regulation. The device offers an isolation voltage of 3kV DC for enhanced safety. The module is fully encapsulated with a SIP package and UL 94V-0 material for flame retardance.

It has a high reliability with a mean time between failures (MTBF) of 1,697,000 hours. The converter features low ripple and noise of 75mV peak-to-peak for stable power delivery. The compact size measures 16.5mm length, 5.4mm width, and 7.55mm depth for space-efficient integration.

Operating temperature range spans from -40 °C to +85 °C to suit diverse environments. The efficiency is rated at approximately 70%, balancing performance and energy use. It uses a 6-pin through-hole mount suitable for PCB assembly and prototyping.

These converters are ideal for industrial, telecommunications, and instrumentation applications. Designed as a fully isolated power solution, enhancing system reliability and safety. Explore our wide range of DC/DC Converters at EnvMart to find high-reliability power solutions perfect for your industrial and commercial electronics projects.
