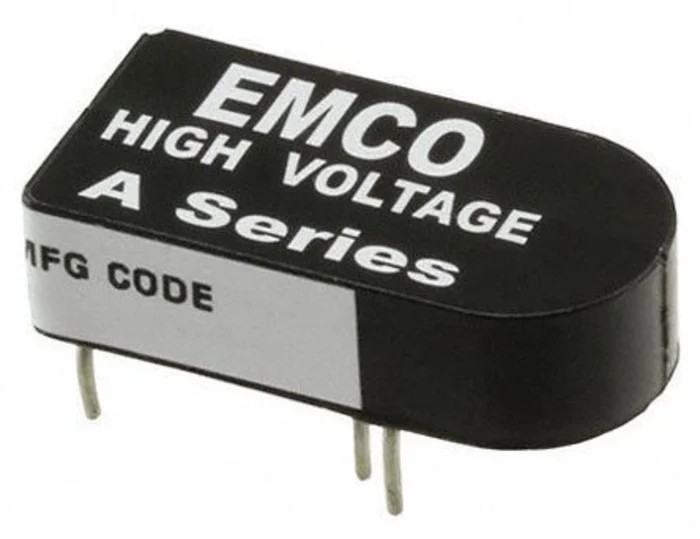

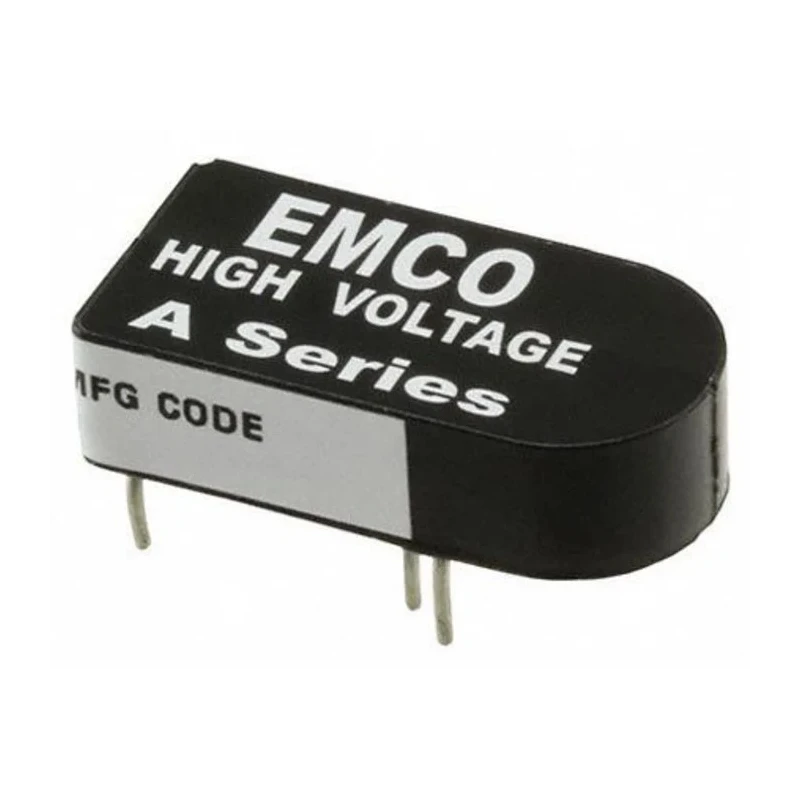

XP Power A Series Isolated DC to High Voltage DC Converter 1 W Through Hole A025P-5
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power A DC/DC Converter, 250V dc/ 4 mA, 5V dc I |
| Brand | XP Power |
| Length | 23.37mm |
| Model | A025P-5 |
| Gross Weight | 5.7g |
| Width | 11.43mm |
| Mount Type | Through Hole |
| Series | A |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| MTBF | 1862000h |
| Number of outputs | 1 |
| Ripple and Noise | 0.9% Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Minimum Input Voltage | 0V dc |
| Number of Pins | 5 |
| Output Voltage 1 | 250V dc |
| Output Current 1 | 4mA |
| Isolation Voltage | 500V |
Key Features
- The unit provides an output voltage of 250 V DC and output current of 4 mA.
- It operates with an input voltage range of 0 V to 5 V DC.
- Featuring through-hole mounting for easy integration into PCB assemblies.
- Capable of continuous operation from -25°C up to 75°C for diverse environments.
- Isolation voltage rating of 500 V ensures galvanic separation for sensitive applications.
- Low ripple and noise of 0.9% peak-to-peak maintain signal integrity.
- Robust MTBF of 1,862,000 hours ensures high reliability for long-term use.
- Compact dimensions measuring 23.37 mm length and 11.43 mm width.
Product Description
XP Power A025P-5 DC/DC Converter is a precision isolated DC to high voltage DC converter from the A Series, delivering 1 watt of output power. Designed for applications requiring miniature size and reliable galvanic isolation, this converter supports input voltages between 0 V and 5 V DC and outputs a stable 250 V DC at 4 mA.
Its through-hole mount type simplifies PCB assembly and ensures secure electrical connections. With an isolation voltage of 500 V and low output ripple noise of 0.9% peak-to-peak, this device preserves signal integrity in sensitive electronic circuits.
The converter operates reliably over a wide temperature range from -25°C to +75°C, making it suitable for rigorous industrial, laboratory, and instrumentation environments. It boasts a high mean time between failures (MTBF) of 1,862,000 hours, ensuring long operational lifespan.
The compact dimensions of 23.37 mm length by 11.43 mm width, and a lightweight 5.7 g package, facilitate integration into space-constrained designs. Its features include a quasi-sinewave oscillator, low leakage control pin, and no minimum load requirement, eliminating the need for external components.
Common industrial applications include avalanche photodiodes, capacitor charging, electrophoresis devices, photomultiplier tubes, piezo devices, mass spectrometry, sustaining ion pumps, and other sensitive instrumentation requiring isolated high voltage sources.
The unit offers input/output proportional control for precise power management. Galvanic isolation enhances safety and performance in electronic systems. One minute minimum short circuit protection safeguards the device under fault conditions.
Ultra miniature size supports modern compact electronic equipment. Compliance with UL and RoHS standards ensures quality and environmental responsibility. Discover the full range of XP Power DC/DC Converters and other power supply solutions at EnvMart to meet your industrial and laboratory power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 250 V DC and an output current of 4 mA.
It operates with an input voltage range of 0 V to 5 V DC.
The compact dimensions of this unit are 23.37 mm in length and 11.43 mm in width.
The maximum operating temperature for the A025P-5 is 75°C.
It features low ripple and noise of 0.9% peak-to-peak, which helps maintain signal integrity in sensitive applications.
The isolation voltage rating is 500 V, ensuring galvanic separation for sensitive applications.
The MTBF for the A025P-5 is 1,862,000 hours, indicating high reliability for long-term use.
This model features through-hole mounting for easy integration into PCB assemblies.
Common applications include avalanche photodiodes, capacitor charging, electrophoresis devices, and photomultiplier tubes, among others.
The A025P-5 has a gross weight of 5.7 g, making it lightweight for compact designs.
It can operate reliably in temperatures ranging from -25°C to +75°C, suitable for diverse environments.
No, this model does not have a minimum load requirement, eliminating the need for external components.
