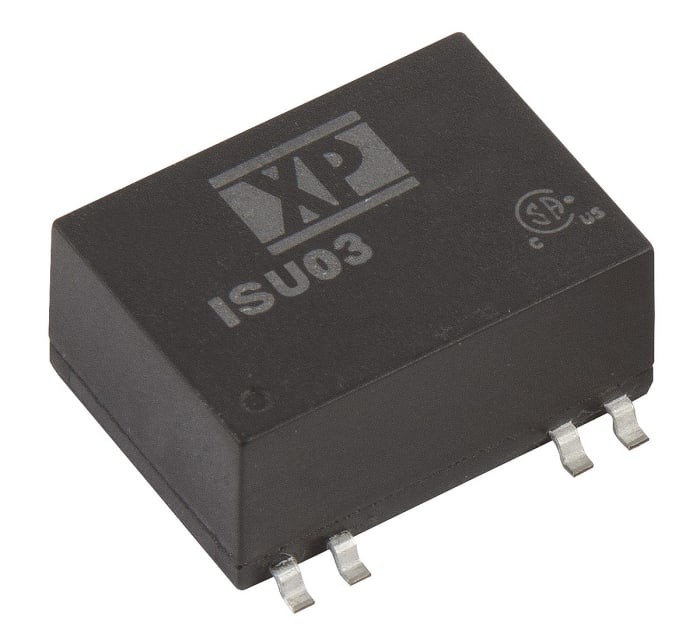

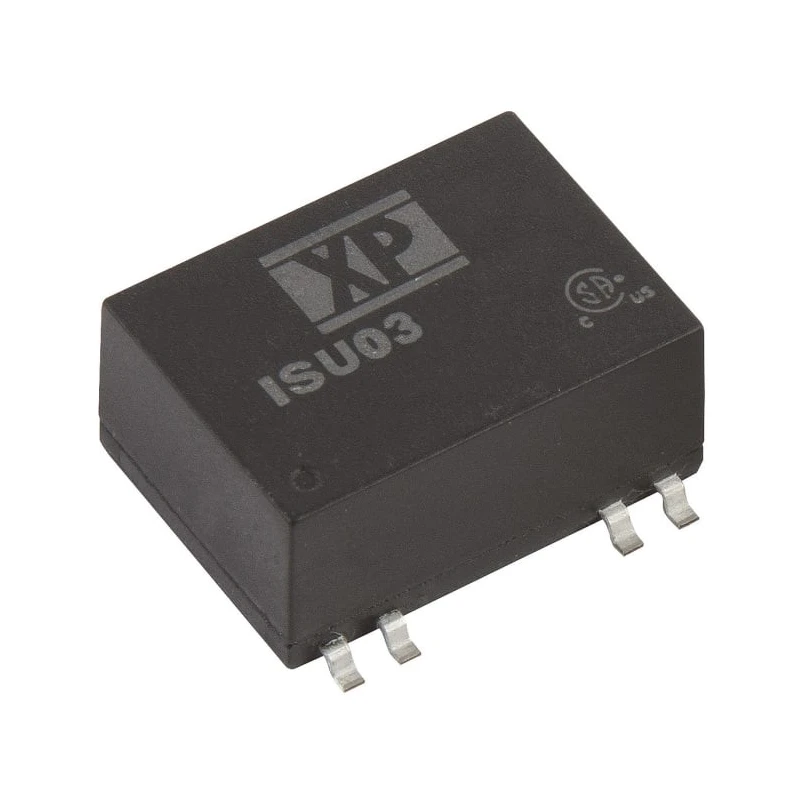

XP Power DC/DC Converter 24V DC Output, 125 mA, 12V DC Input, 4.5V Min Input, 3 W, Surface Mount, 95°C Max Temp ISU03
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power ISU03 DC/DC Converter, 24V dc/ 125 mA, 12 |
| Brand | XP Power |
| Efficiency | 82% |
| Length | 19mm |
| Model | ISU03 |
| Depth | 8.7mm |
| Width | 17mm |
| Mount Type | Surface |
| Series | ISU03 |
| Maximum Operating Temperature | 95°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 12V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 14 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 125mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
| Wide 4 | 1 input range |
Key Features
- Delivers 24V DC output with a maximum current of 125 mA.
- Operates with a wide input range from 4.5V to 12V DC, suitable for diverse power sources.
- Provides 3 W maximum output power and up to 1.5 kV isolation voltage for safety.
- Features surface mount configuration for easy PCB integration.
- Supports operation from -40°C to 95°C, ideal for industrial and commercial environments.
- Single regulated output makes it suitable for sensitive circuit designs.
- High efficiency up to 82% reduces thermal stress and improves energy savings.
- Compact dimensions (19 mm x 17 mm x 8.7 mm) for space-limited applications.
Product Description
The XP Power ISU0305S24 is an advanced DC/DC converter engineered for demanding electronic applications that require efficient voltage regulation and electrical isolation. With its ability to convert input voltages from 4.5V to 12V DC into a stable 24V DC output at up to 125 mA, this module is ideal for powering sensitive devices and subsystems in industrial automation, instrumentation, and embedded electronics.
Designed with surface mount (SMD) technology, the ISU0305S24 ensures streamlined integration into modern PCBs. Its compact footprint (19 mm length, 17 mm width, and 8.7 mm depth) enables it to fit comfortably in space-constrained designs.
This converter delivers a maximum output power of 3 W and provides a robust isolation voltage of 1.5 kV DC, protecting connected loads from electrical transients and cross-system interference. The wide operating temperature range from -40°C to +95°C supports reliable function in varied environments, including industrial, laboratory, and commercial installations.
Efficiency is a hallmark of the ISU0305S24, reaching up to 82%, which minimizes heat generation and ensures long-term reliability. The regulated single output reduces risk for voltage-sensitive circuits.
Typical applications include power supply systems, process control, and signal conditioning in automation panels, testing equipment, and remote devices. Usage extends to instrumentation racks, telecommunication modules, and high-performance embedded solutions.
This converter complies with RoHS standards and is manufactured in Taiwan, ensuring global quality and sustainability. Designed for hassle-free assembly, the 14-pin surface mount package further streamlines integration and maintenance.
Explore more DC/DC Converter solutions from XP Power in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a 24V DC output with a maximum current of 125 mA.
It operates with a wide input voltage range from 4.5V to 12V DC.
The maximum output power provided by this unit is 3 W.
It features an isolation voltage of 1.5 kV DC, which protects connected loads from electrical transients.
This converter has an efficiency rating of up to 82%, which helps reduce thermal stress and improve energy savings.
The compact dimensions are 19 mm in length, 17 mm in width, and 8.7 mm in depth.
It operates reliably within a temperature range from -40°C to +95°C.
This model has a single regulated output, making it suitable for sensitive circuit designs.
It is designed for surface mount configuration, facilitating easy integration into PCBs.
The unit complies with RoHS standards, ensuring it meets environmental regulations.
Typical applications include power supply systems, process control, and signal conditioning in various electronic setups.
This model features a total of 14 pins for connection.
