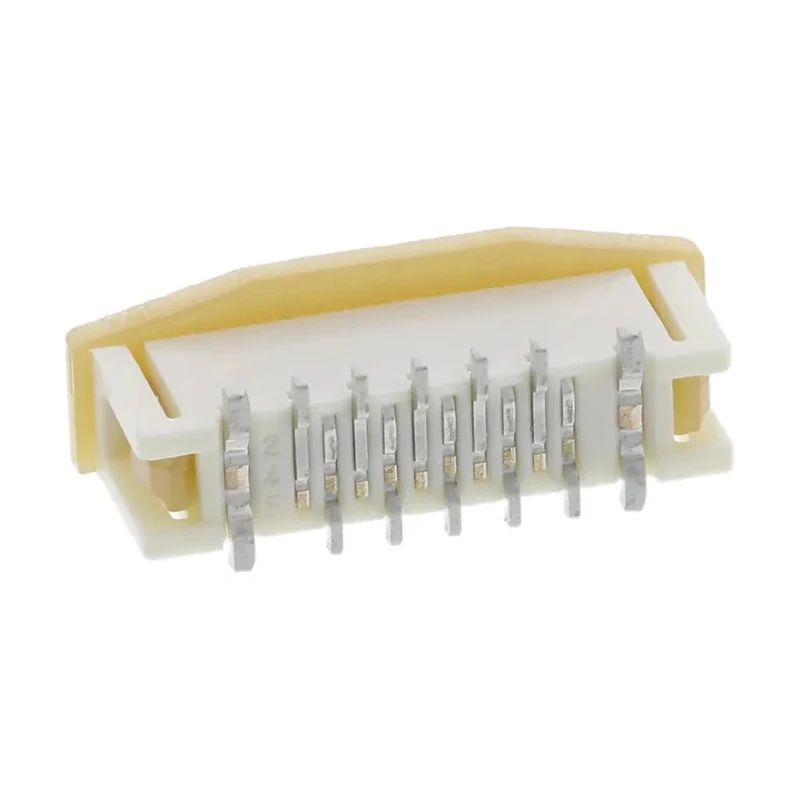

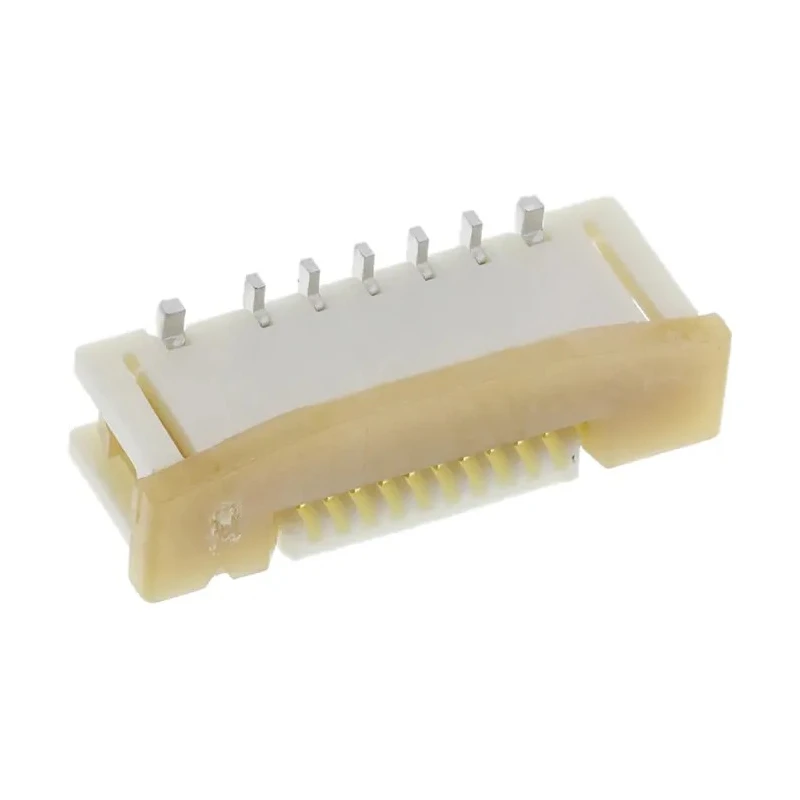

Molex 0.5 mm Pitch 10 Way Straight Female FPC Connector ZIF Vertical Contact 52559-1052

Molex 52559-1052 is a high precision FPC connector designed for advanced electronic component interconnections requiring reliable and compact solutions. It features a 0.5 mm pitch with 10 female contacts arranged in a straight layout, optimized for surface mount technology (SMT).

The connector uses phosphor bronze contacts plated with gold, ensuring excellent conductivity and resistance to corrosion. It supports a current rating of 500 mA and a voltage rating of 50 V AC, which is suitable for various low-power electronic circuitry.

Its Zero Insertion Force (ZIF) vertical contact termination reduces wear and tear on the flexible printed circuit cables during insertion and removal, improving durability and assembly efficiency. The nylon housing makes the component robust and capable of functioning in temperatures ranging from -20°C to 85°C.

Key design features include a locking mechanism and straight orientation which aid in secure and straightforward cable connections, making this connector ideal for electronics manufacturing, consumer electronics, instrumentation, and industrial PCB assemblies.

This connector features phosphor bronze contact material plated with gold for reliable signal transmission. Designed with 0.5 mm pitch and 10 contacts arranged in a single row. Supports a current rating of 500 mA and voltage rating of 50 V AC.

Includes a low insertion force ZIF vertical contact and locking mechanism for secure cable retention. Constructed with a nylon housing material for durability under operating temperatures from -20°C to 85°C. Offers a straight orientation that facilitates easy-on FFC/FPC cable connections.

Compatible for use in electronics manufacturing and PCB connector applications.

This Molex FPC Connector enhances interconnection reliability for industrial, commercial, consumer electronics, and laboratory equipment requiring compact and efficient PCB interface solutions.

EnvMart stock includes this model for efficient procurement and integration into manufacturing workflows for improved assembly quality and product longevity.
