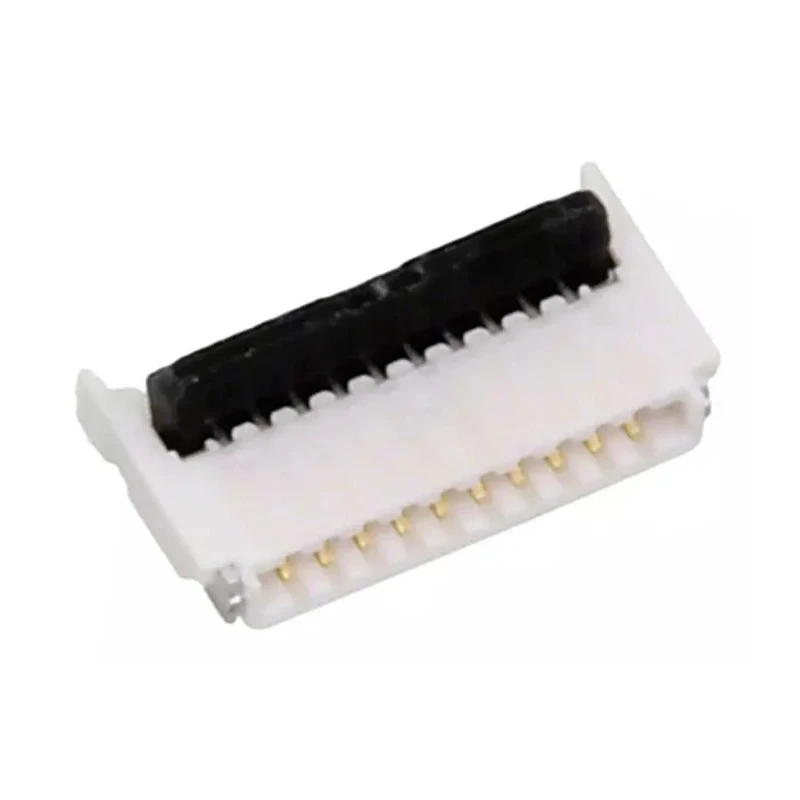

Molex 0.5 mm Pitch 10 Way Right Angle Male FPC Connector, Solder, 50V AC, 500mA, Series 503480 503480-1000
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | 503480 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Connector Gender | Male |
| Contact Position | Dual |
Key Features
- The connector features a 0.5 mm pitch with 10 contacts for reliable signal transmission.
- It incorporates a BackFlip actuator providing secure connection with high upward pull force.
- Designed with gold over nickel contact plating for enhanced conductivity and resistance to corrosion.
- The liquid crystal polymer housing ensures durability and stability in various environmental conditions.
- Supports a voltage rating of 50V AC and a current rating of 500mA suited for low power applications.
- The right angle orientation and dual contact position allow flexible PCB layouts.
- Equipped with solder tabs to provide secure PCB retention and strain relief.
- Operating temperature range from -40°C to 85°C makes it suitable for diverse industrial environments.
Product Description
Molex 503480-1000 is a precision-engineered 0.5 mm pitch 10 way right angle male FPC Connector with solder termination suitable for high reliability electronics and industrial applications.
This connector employs a BackFlip actuator mechanism that provides a secure and reliable connection between the flat flexible cable (FFC) and the connector, enabling high upward pull force and ease of insertion, enhancing assembly efficiency.
The dual contact design eliminates the need for separate top and bottom style connectors, allowing for greater flexibility in PCB layout and cost savings.
Its gold over nickel plating on phosphor bronze contacts ensures excellent electrical conductivity and corrosion resistance, essential for consistent signal quality in sensitive electronic devices.
The housing made of liquid crystal polymer offers robustness and withstands temperatures from -40°C up to 85°C, ensuring dependable performance in demanding industrial, laboratory, manufacturing, and consumer electronics environments.
The right angle surface mount format with solder tabs provides reliable solder tail retention and strain relief on the PCB, increasing mechanical stability.
Key applications include integration in digital still cameras, digital video cameras, portable audio players, mobile phones, portable gaming devices, and personal navigators, making it a versatile connector solution across multiple sectors.
The connector has a low profile height of 1.00 mm contributing to compact device designs. Provides space saving solutions for high-density PCB assembly. Ensures secure FPC retention using the BackFlip actuator. Dual contact terminals enhance connectivity and reduce layout complexity.
Solder tabs offer mechanical strength and strain relief at the PCB connection. Explore the Molex 503480-1000 connector on EnvMart for reliable, high-performance FPC connection solutions optimized for modern electronic interface requirements.
