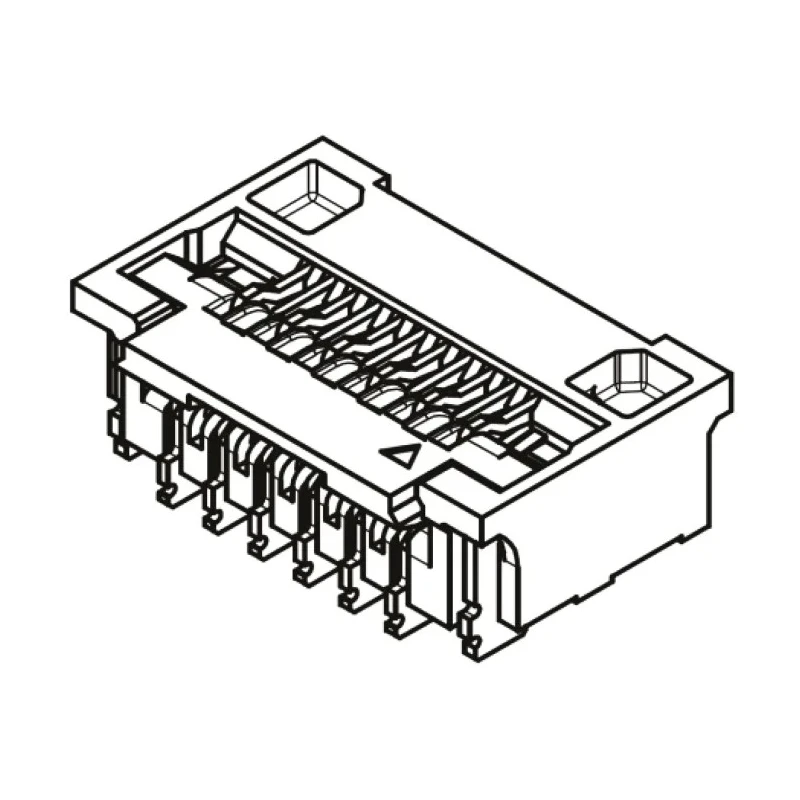

Molex 0.25 mm Pitch 25 Way Right Angle Female FPC Connector Bottom Contact 502078-2510

Molex 502078-2510 is a 0.25 mm pitch 25 way right angle female FPC connector designed for bottom contact and surface mounting on printed circuit boards. This connector is part of Molex's Easy-On 502078 series, offering a compact and reliable connection solution with a low profile height of approximately 1.0 mm, ideal for space-constrained electronic assemblies.

The contact material is copper alloy with gold over nickel plating, ensuring excellent electrical conductivity and resistance to corrosion. The unique design includes a full Zero Insertion Force (ZIF) mechanism with a spring feature to maintain consistent electrical contact and prevent cable damage during installation and use.

Rated for 50 V AC voltage and 200 mA current, the connector supports efficient signal transmission in a variety of industrial applications including electronic components manufacturing, power and control circuits, and embedded systems.

Its thermoplastic housing provides robust insulation and mechanical stability, suitable for harsh environments with operating temperature ranges from -20°C to 85°C. The connector’s right angle orientation and bottom contact termination occupy minimal board area, favoring high-density PCB layouts.

25 contacts with 0.25 mm pitch ensure compact high-density connections. Gold over nickel plated copper alloy contacts for reliable signal integrity. Locking mechanism supports secure and stable connections. Single-row, surface mount design promotes ease of assembly and repair.

Operating voltage 50 V AC, current 200 mA for multiple electronic applications. Thermoplastic housing for safety and durability under temperature extremes. Suitable for industrial, manufacturing, electronics assembly, and laboratory use.

Manufactured in Japan to strict quality and reliability standards.

Choose the Molex 502078-2510 connector for precision and durability in FPC Connector solutions. Explore EnvMart’s comprehensive range of connectors and FPC components to accommodate all your electronic design and assembly needs.
