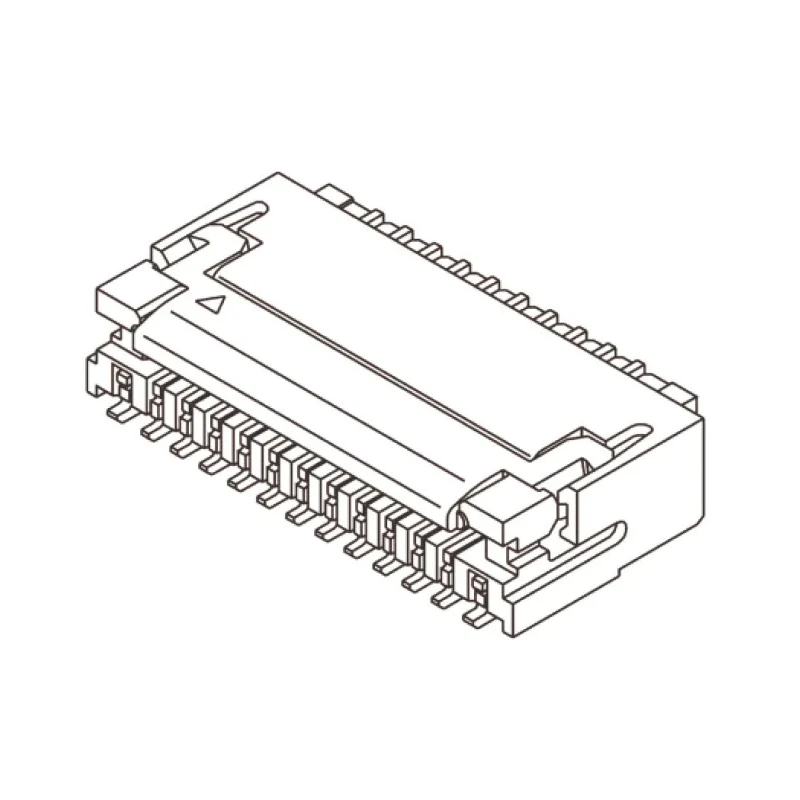

Molex 0.3 mm Pitch 39 Way Right Angle FPC Connector, ZIF Bottom Contact 54393-3982

Molex 54393-3982 is a 0.3 mm pitch, 39 way right angle FPC Connector with Zero Insertion Force (ZIF) bottom contact, designed for secure and efficient electronic interconnections. This connector is part of the Molex 54548 Easy-On FFC/FPC 54393 series, providing a space-saving, staggered PCB layout that enhances design flexibility.

The connector’s actuator can rotate back 100 degrees, facilitating cable insertion and improving assembly efficiency. The contact design includes a cable pre-hold feature, allowing secure and precise insertion of flexible printed circuits (FPC).

The phosphor bronze contacts, plated with tin over nickel, ensure reliable electrical conductivity and resistance to corrosion under various usage conditions. It supports a current rating of 200 mA and a voltage rating of 50 V, making it suitable for low power electronic device connections.

Surface mount with right angle orientation allows this connector to be placed optimally on printed circuit boards, saving board space and enabling compact product designs. The thermoplastic housing provides necessary insulation and mechanical strength, while the operating temperature range from -20°C to 85°C allows use in diverse industrial, commercial, and laboratory environments.

This product is ideal for applications in electronic manufacturing, embedded systems, consumer electronics, instrumentation, and any industry requiring secure, compact, and reliable FPC connections.

This connector features 39 contacts optimized for fine pitch applications. The contact material is phosphor bronze, ensuring good electrical conductivity. It supports a current rating of 200mA and a voltage rating of 50V.

Mount type is surface mount with a right angle orientation for PCB layout flexibility. The connector incorporates a Zero Insertion Force (ZIF) bottom contact termination. Operating temperature ranges from -20°C to 85°C for versatile application environments.

Contact plating includes tin over nickel for corrosion resistance and durability. The housing is made of thermoplastic to provide insulation and mechanical protection. Designed in the Molex 54548 series, with 1 row and female contact gender.
