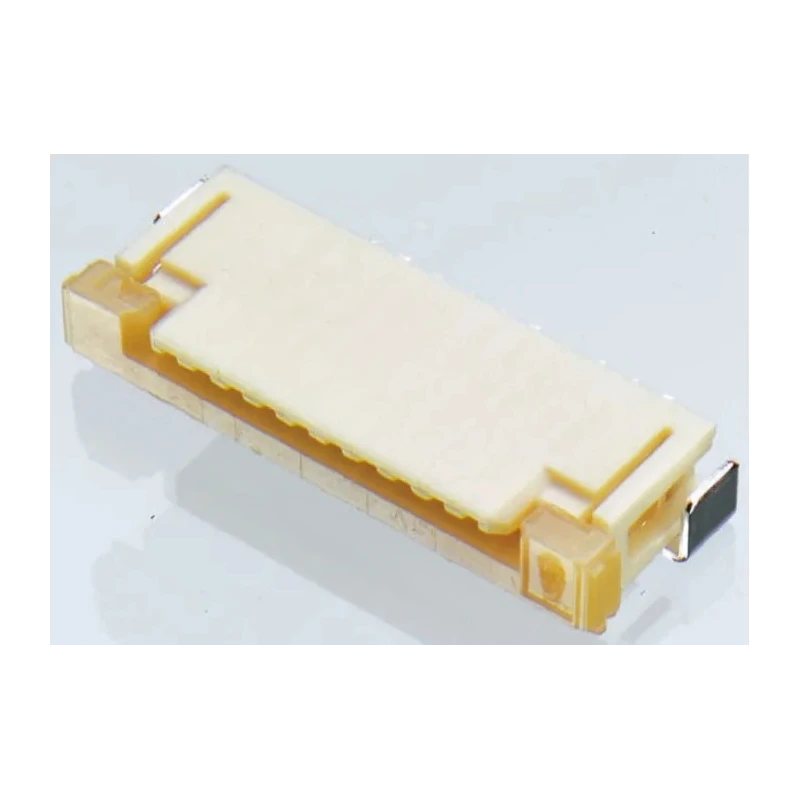

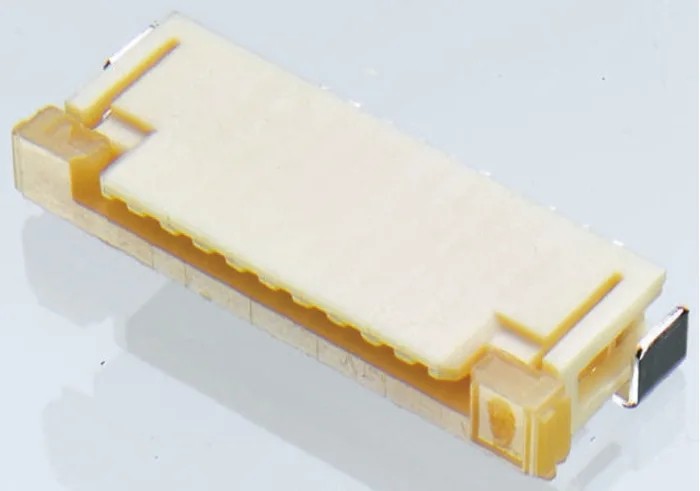

Molex 1 mm Pitch 9 Way Right Angle Female FPC Connector, Solder 52271-0979

Molex 52271-0979 is a 1 mm pitch, 9 way right angle female FPC connector designed for surface mount solder applications. This connector features a zero insertion force (ZIF) slide type actuator which allows easy insertion of flexible printed circuit (FPC) cables while ensuring secure termination.

Constructed with phosphor bronze contacts plated with tin bismuth over nickel, it offers reliable electrical conductivity combined with a durable nylon housing for insulation and mechanical protection. The contacts are positioned at the bottom in a single row and the connector has a right angle orientation, optimizing PCB space usage.

Operating at voltages up to 50 V AC and carrying currents of 500 mA, this connector is rated for industrial temperatures from -40°C to 85°C, making it suitable for automotive, consumer electronics, telecommunications, and medical devices.

The locking mechanism ensures the connector securely mates with the FPC cable, while solder tabs provide robust PCB retention and strain relief to maintain mechanical integrity. Its compact space-saving design and ZIF mechanism allow for repeat cycling with minimal wear, which is essential in high-reliability applications.

1.00 mm pitch and 9 contact positions provide precise electrical connectivity. Phosphor bronze contacts with tin bismuth plating ensure reliable conductivity and corrosion resistance. Nylon housing material offers mechanical strength and insulation.

Slide type actuator enables easy and secure cable insertion with zero insertion force. Right angle bottom contact design optimizes PCB layout. Locking mechanism for secure connector engagement. Solder tabs for PCB strain relief and retention.

Operating temperature range from -40°C to 85°C supports diverse environmental conditions. Applicable across automotive navigation, digital cameras, security systems, mobile phones, and medical monitoring devices.

This Molex FPC Connector is part of the 52271 series, designed for high performance and reliable interconnections in compact electronic assemblies. Explore more connectors of this and related series in the Electronics & Electricals category at EnvMart.
